18650 Battery Spot Welding Machine For Lithium Battery Pack
Model No.: ACEY-8000D
Power Supply: 5000A/8000A/10000A DC Inverter
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 18650 battery spot welding machine for lithium battery pack in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
5000A 8000A 10000A Spot Welding Machine for Lithium Ion Battery
Products Description

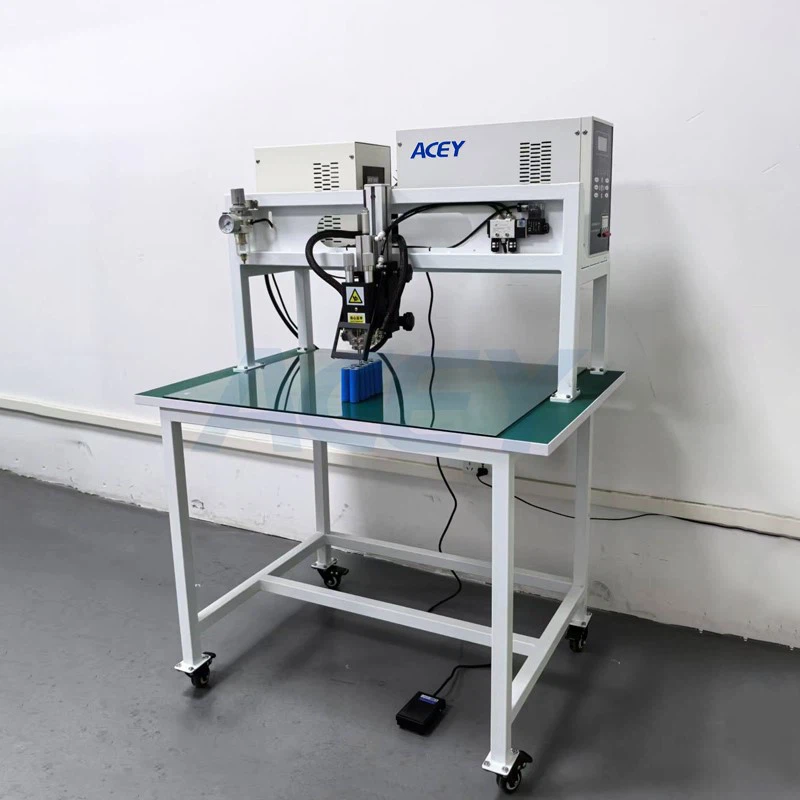

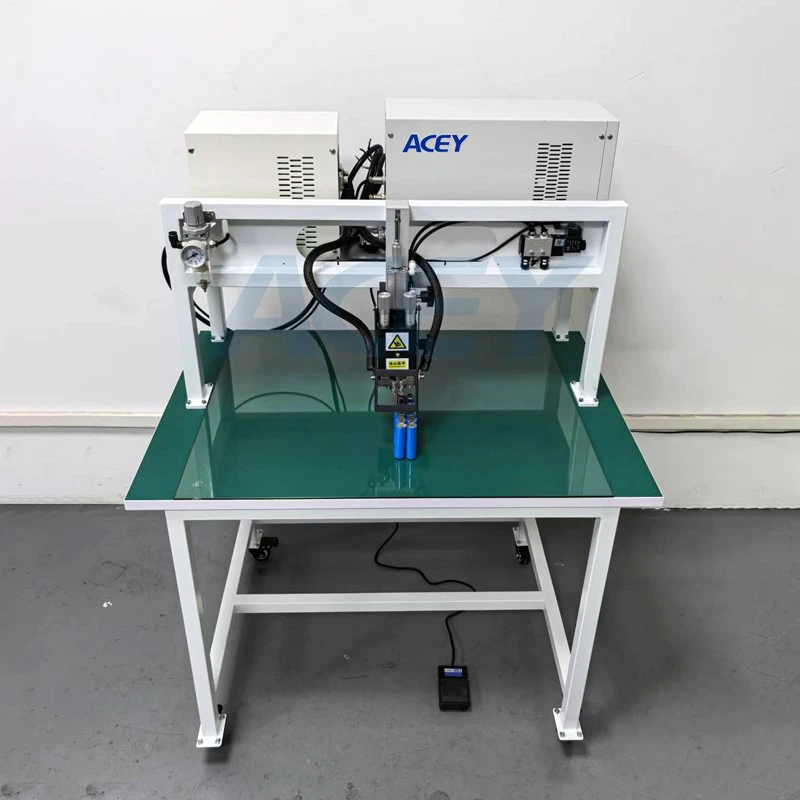

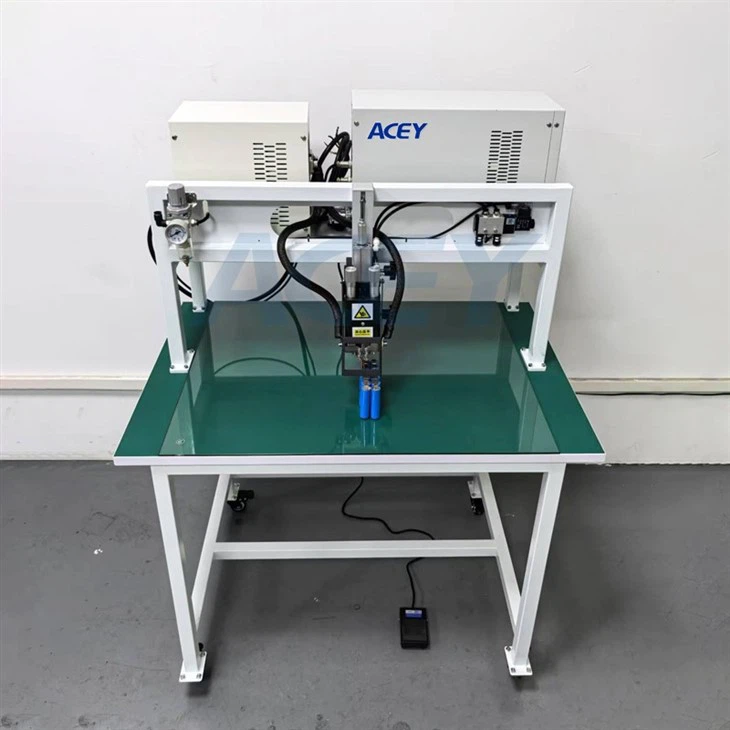

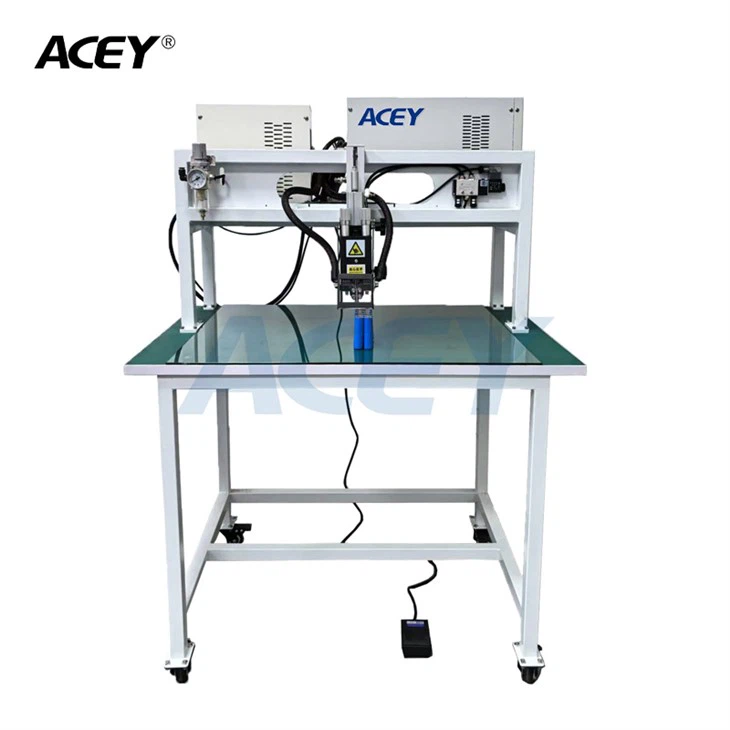

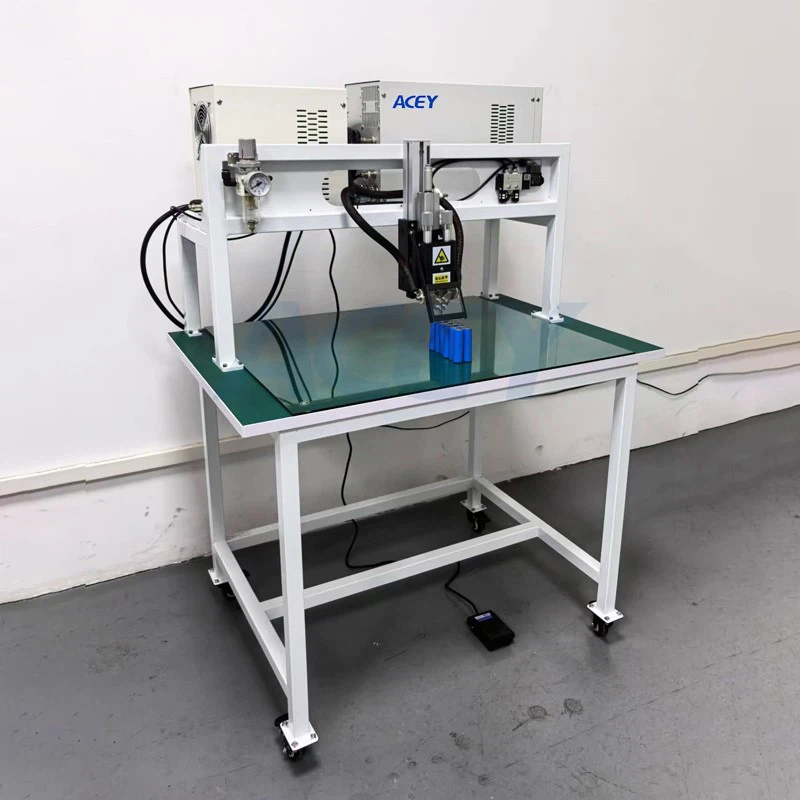

ACEY-8000D Lithium Battery Pack Spot Welding Machine is designed for high-efficiency welding and assembly of cylindrical lithium battery packs. It supports 14500, 18650, 21700, 26650, 32700 and other cylindrical cells, making it an ideal solution for battery manufacturers, EV battery pack factories and lithium battery research institutions.
Equipped with a high-precision welding control system, the machine delivers stable welding quality, low defect rates and consistent weld strength. Compared with manual spot welding, it significantly improves production efficiency while reducing labor costs and welding errors.
The equipment can be customized according to different battery pack sizes and production requirements. It is widely used in the production of electric bicycle batteries, scooter batteries, power tool battery packs, solar energy storage batteries and other lithium battery applications.
Features
- Compatible with 14500, 18650, 21700, 26650 and 32700 cylindrical cells
- High-speed semi-automatic spot welding with stable welding consistency
- Supports nickel strip and nickel-plated steel strip welding
- Precision servo control system for accurate positioning
- User-friendly touch screen operation interface
- Multiple welding parameter storage functions
- Low maintenance and long service life
- Suitable for mass production and customized battery pack assembly
- Optional 5000A, 8000A or 10000A welding power supply
- CE compliant design with safety protection system
Specification
| Item No. | ACEY-8000D | ||
| Max output power of transformer | 35 KVA | ||
| Output max short circuit current | 8000A | ||
| Floating voltage | 10V | ||
| Control mode | constant current control | ||
| Cooling mode | forced air cooling | ||
| Setting data group No. | 99 | ||
| Suit for | electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc | ||
| Max thickness of parallel welding | 0.03mm~0.5mm | ||
| Max thickness of upper and lower butt welding |
0.3mm + 1mm | ||
| Machine weight | 23.5kg | ||
| External dimension | L810mm*W610mm*H1220mm | ||
| Input power | 3Phase AC380V±10% 50/60Hz | ||
Product Details
