Battery Pack Assembly Line For Electric Motorcycle
Model No.: ACEY-CAL-EM
Battery Type: Cylindrical Battery
After-sales Service: Professional Team Offers Online Videos
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of battery pack assembly line for electric motorcycle in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
Semi-automatic Battery Pack Production Line for Electric Motorcycle
Product Description
The Electric Motorcycle Lithium Battery Pack Assembly Line is a complete battery pack manufacturing solution designed for cylindrical lithium-ion battery packs used in electric motorcycles, electric two-wheelers, electric scooters and other light electric vehicles.
The production line combines battery cell grading, insulation protection, cell sorting, polarity inspection, nickel strip spot welding, BMS testing, battery pack performance testing, heat shrinking, coding and aging processes into an integrated manufacturing workflow.
By combining battery testing and assembly equipment, the line helps manufacturers improve production consistency, reduce manual handling and establish a more standardized battery pack production process. The equipment configuration can be adjusted according to battery cell type, pack structure, voltage and capacity requirements, production capacity and automation level.

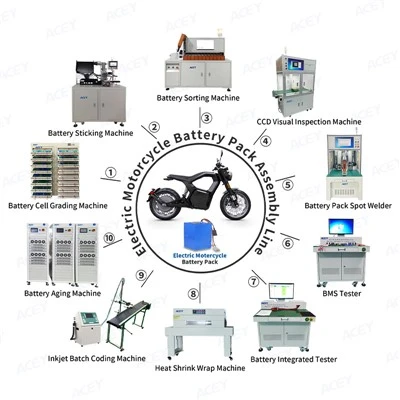

Electric Motorcycle Battery Pack Assembly Process
Step 1 – Battery Cell Grading: Individual lithium-ion cells are tested and graded according to electrical performance such as voltage and capacity. Cells with similar characteristics can then be grouped together for pack assembly.
Step 2 – Insulation Paper Sticking: Insulation paper or other insulating materials are applied to the required areas of cylindrical cells to provide electrical isolation and additional protection during pack assembly.
Step 3 – Cell Sorting: The tested cells are automatically or semi-automatically sorted according to preset electrical parameters and grouping requirements.
Step 4 – CCD Visual Inspection: The CCD inspection system checks the appearance and polarity of cylindrical battery cells, helping identify incorrectly oriented or abnormal cells before welding.
Step 5 – Battery Pack Spot Welding: Qualified cells are arranged according to the battery pack design and connected using nickel strips through resistance spot welding.
Step 6 – BMS Testing: The assembled battery pack is connected to a BMS tester to verify protection functions and electrical parameters according to the selected BMS configuration.
Step 7 – Battery Pack Comprehensive Testing: The finished pack undergoes electrical performance testing to check voltage, current and other specified parameters before final packaging.
Step 8 – Heat Shrink Wrapping: The battery pack is covered with insulating PVC film and processed through the heat shrinking system to create a neat and protective outer layer.
Step 9 – Batch Coding: Production information such as batch numbers, dates or identification codes can be printed on the battery pack for production management and traceability.
Step 10 – Battery Aging: The completed battery packs undergo charging/discharging and aging tests to verify their electrical performance and stability before shipment.
Products Details
1. Cell Grading Machine

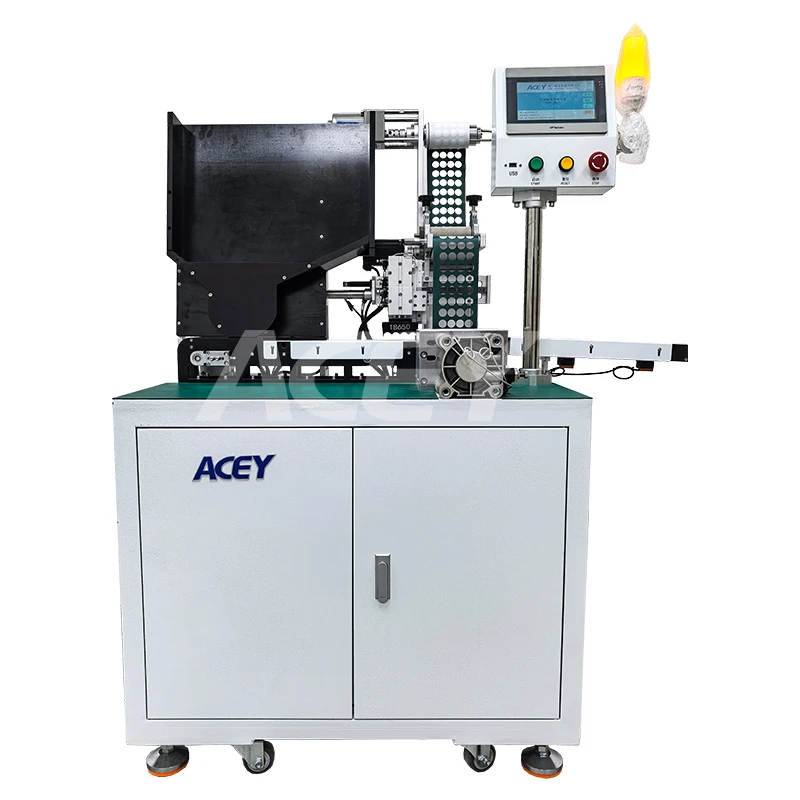

2. Battery Labeling Machine

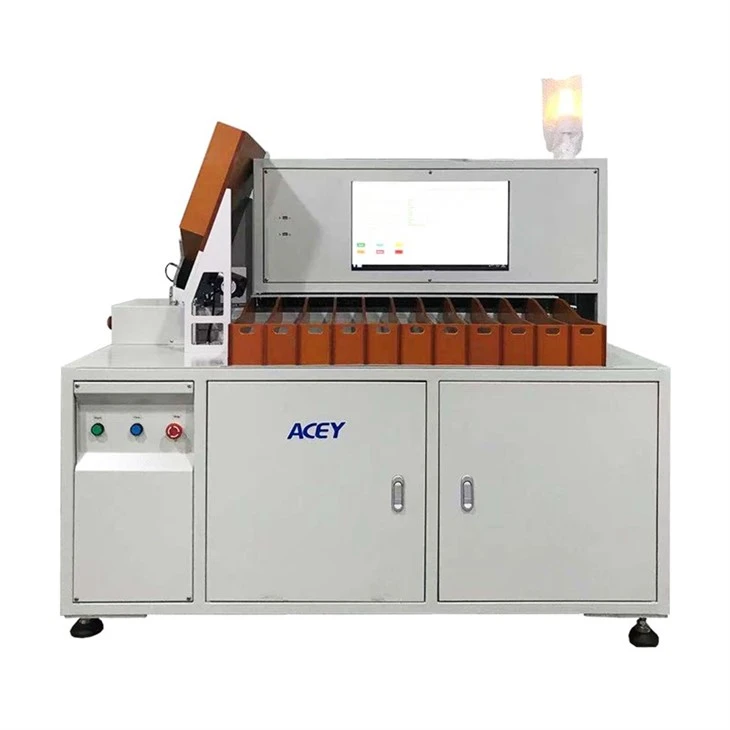

3. Lithium Cell Sorting Machine
4. CCD visual inspection machine
5. Battery Spot Welding Machine
6. BMS tester
7. Battery integrated tester
8. Heat shrink wrap machine
9. Inkjet Batch Coding Machine
10. Battery Pack Tester
Customized Battery Pack Production Solutions
Looking for a complete electric motorcycle battery pack assembly line for your production project?
ACEY can configure the battery cell testing, sorting, welding, BMS testing, comprehensive testing, heat shrinking and aging equipment according to your battery pack specifications and production requirements.
Contact us to discuss your battery pack design, production capacity and equipment configuration.
FAQ
Q: What type of battery cells can be used with this assembly line?
A: The production line is primarily designed for cylindrical lithium-ion battery cells. The equipment configuration can be adjusted according to cell size, battery chemistry, pack structure and production requirements.
Q: What battery packs can this production line manufacture?
A:The line can be configured for cylindrical lithium battery packs used in electric motorcycles, electric two-wheelers, electric scooters, electric bicycles and other applications.
Q: Can the battery pack assembly line be customized?
A: Yes. The equipment configuration can be customized according to battery cell type, pack voltage, capacity, dimensions, production capacity and required automation level.
Q: Can 18650 and 21700 cells be used?
A: The equipment can be configured for different cylindrical cell specifications. The specific machine configuration should be selected according to the cell dimensions and battery pack design.
Q: Is the production line fully automatic?
A: The automation level can be customized. Depending on production requirements, ACEY can provide semi-automatic, automatic or integrated battery pack assembly solutions.
