18650-32700 Lithium Ion Battery Pack Assembly Line
Battery type:Cylindrical Battery 18650 21700 26650 32650 32700
Warranty:1 year
Package:Plywood Case
Free After-sales Service
18650 21700 26650 32650 32700 Cylindrical Lithium Ion Battery Pack Assembly Line
Products Description
Lithium ion battery pack assembly line is widely used in power tools, smart homes, electric vehicles, photovoltaic energy storage, intelligent lighting, mobile power, small appliances and new energy vehicles.
The main equipment of cylindrical lithium ion battery pack assembly line include battery formation and grading system, battery insulation paper sticking machine, battery sorter, CCD tester, battery pack spot welder, bms tester, comprehensive tester, heat shrink wrap machine, inkjet batch coding machine, battery pack tester.
| 1. Lithium ion Battery Cell Tester | Battery Tester is mainly used to detect whether the parameters such as cell capacity, magnification and cycle times meet the use requirements. |
| 2. Insulation Paper Sticking Machine | The positive electrode of the battery is pasted with insulating highland barley paper to protect the battery. |
| 3. Battery Sorting Machine | The lithium battery sorter can be set to multiple gears through the upper and lower limits of internal resistance. The resistance is adjustable, and the adjustment mode is diversified and fast. It is equipped with imported voltage internal resistance tester, integrated PC, high-end drive, all electric motor configuration; Process detection signal comprehensive and bid farewell to a single industrial machine. |
| 4. CCD Visual Inspection Machine | It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding. |
| 5. Spot Welding Machine | This equipment is mainly used for welding the battery and nickel strip in the cylindrical battery assembly. The welding pulse width is adjustable, the welding spatter is small, and the welding spot is not discolored. It has the function of two-stage current detection and comparison, sound and light alarm for abnormal current, effectively preventing the occurrence of false welding and false welding. It has the function of fault self diagnosis, displaying the corresponding fault points and facilitating maintenance. |
| 6. BMS Tester | The multifunctional protection board tester is mainly used to test whether the functional indexes of the power battery protection board are within the parameter range, so as to provide a set of testing standards for the staff. |
| 7. Battery Integrated Tester | The main test items include: open circuit voltage, AC internal resistance, discharge test, discharge over-current test, short circuit protection test, charging test and charging protection test. |
| 8.Heat Shrink Wrap Machine | PVC Heat Shrinking Machine is designed for cylindrical and combined battery heat shrink packaging process, using a combination of far-infrared and circulating wind heating technology to ensure uniform heat shrinkage of the battery plastic cover, beautiful deformation and high concentration. |
| 9. Expiry Date and Batch Number Printing Machine | It is sprayed on the outer surface of the battery with the information of the battery, including the manufacturer, model. Production date, voltage, capacity. Energy, production batch number, etc. |
| 10. Battery Pack Charge Discharge Machine | The aging cabinet is mainly used to test the charge and discharge cycles of finished lithium battery packs. Test items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding steps, the battery can be tested according to the set process. |
Specification
| 18650-32700 Cylindrical Lithium Ion Battery Pack Assembly Line | |
|
Product Name |
Description |
|
Battery Cell Tester |
5V 3A/6A 256/512 Channels Battery Tester |
|
Battery Insulation Paper Sticking/Pasting Machine |
Sticker Matrials:Barley paper or PVC |
|
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM |
|
|
Battery Sorting Machine |
5-22 Channels Battery Sorter(Data record funtion is selectable) |
|
CCD Visual Inspection Machine |
Cylindrical battery positive and negative detection |
|
Manual Spot Welding Machine |
Pneumatic AC Spot Welding Machine |
|
(Single Welding Point or Doubel Welding Point) |
|
|
AC Pedal Manual Spot Welding Machine |
|
|
Automatic Spot Welding Machine |
Single Side Automatic Spot Welding Machine |
|
Double Sides Spot Welding Machine |
|
|
BMS Tester |
1-52 series optional |
|
Overdischarge Protection Current:120A-800A |
|
|
Battery Pack Comprehensive Tester |
60V-200V, 30A-300ACharge, 120A-600ADischarge |
|
Automatic Cylindrical Battery PVC Heat Shrink Wrapping Machine |
Film speed:50~70PCS/MIN |
|
Film precision:±0.1MM |
|
|

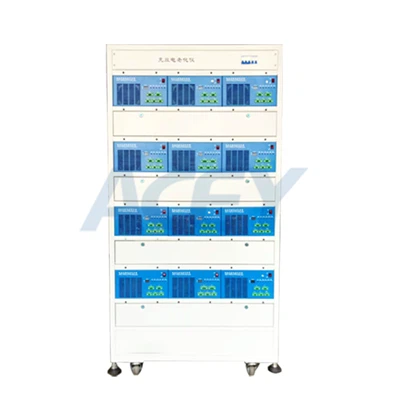

Battery Aging Machine |
Voltage:20V-1650V |
|
Discharge current:10A-1200A |
|
Products Details
1. Lithium ion Battery Cell Grading Machine

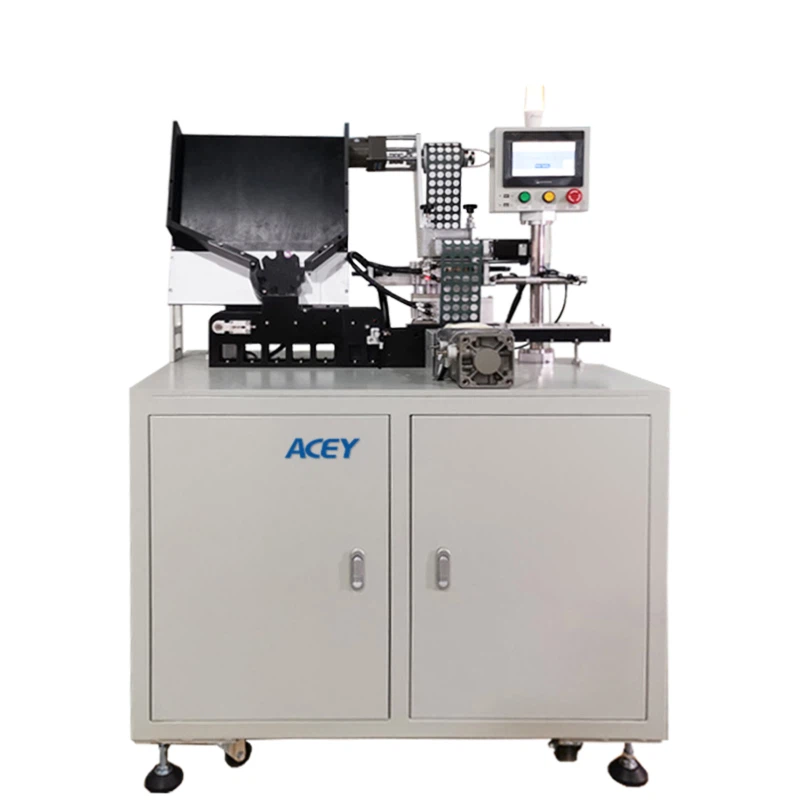

2. Insulation Paper Sticking Machine

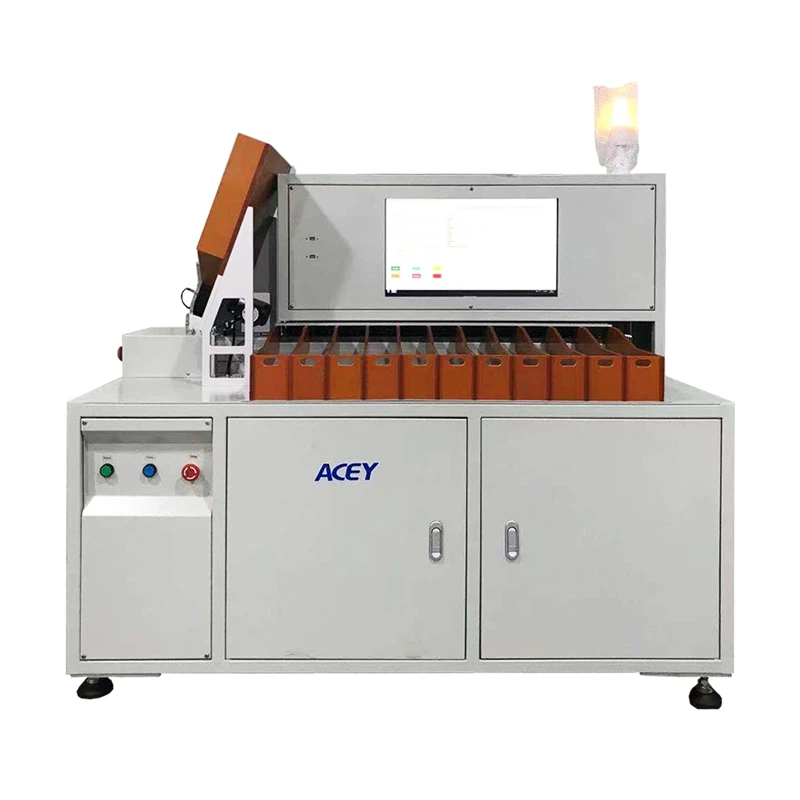

3. 32140 Battery Sorting Machine

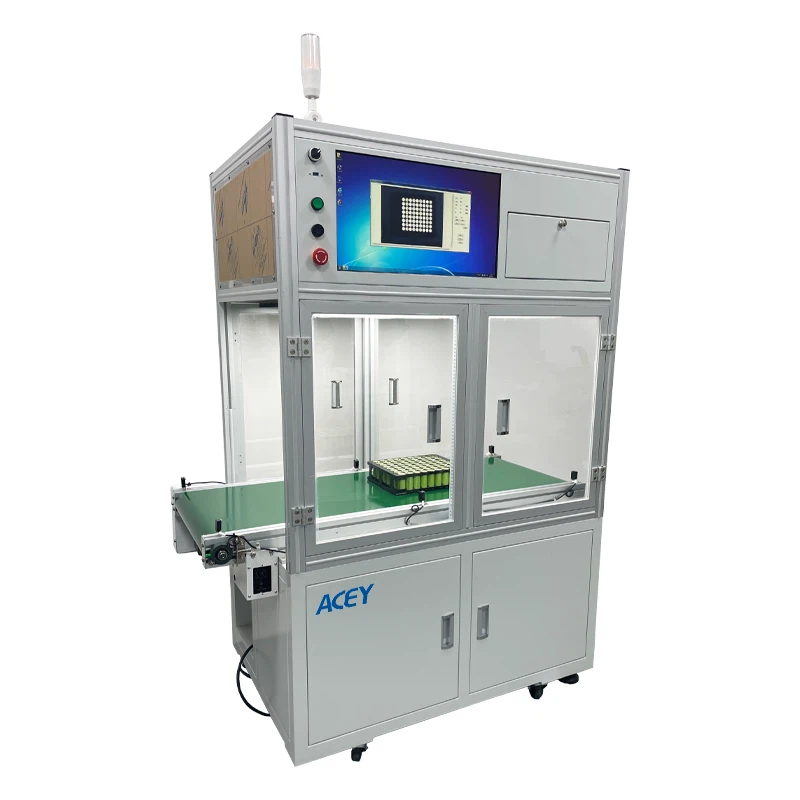

4. ccd visual inspection machine
5. Transistor single side spot welder
6. BMS Tester
7. Battery Integrated Tester
8.Heat Shrink Wrap Machine

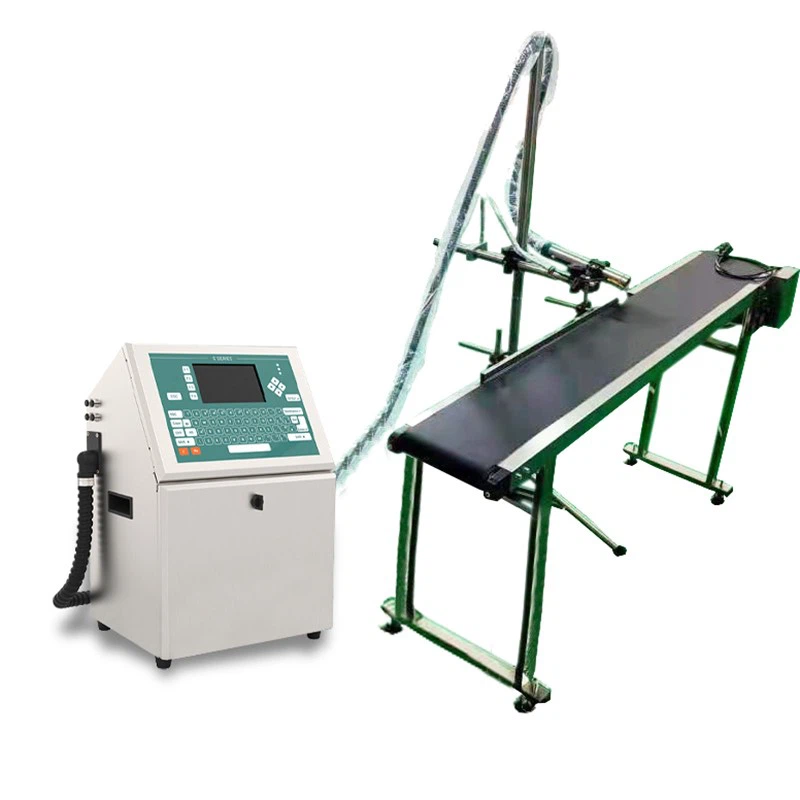

9. Expiry date and batch number printing machine

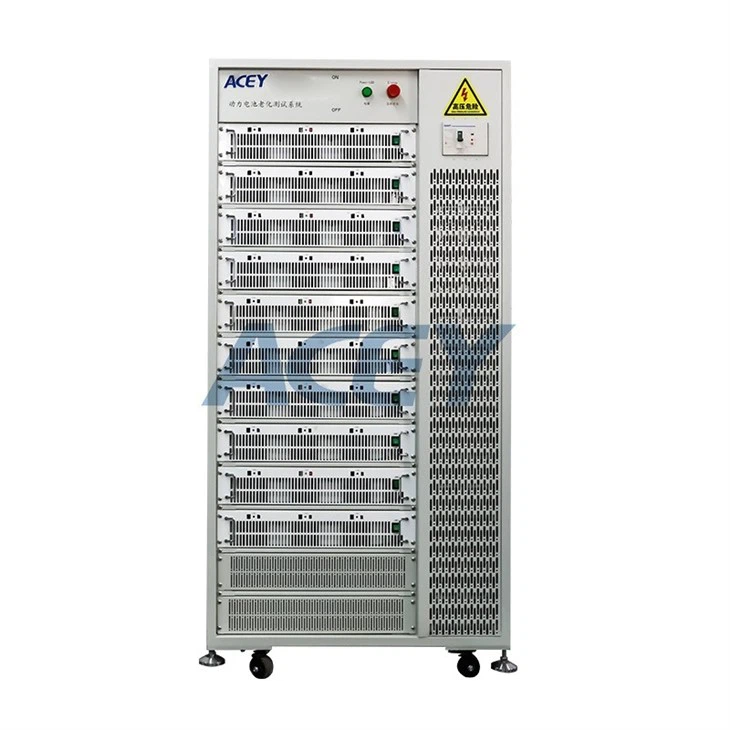

10. Battery pack charge discharge machine
