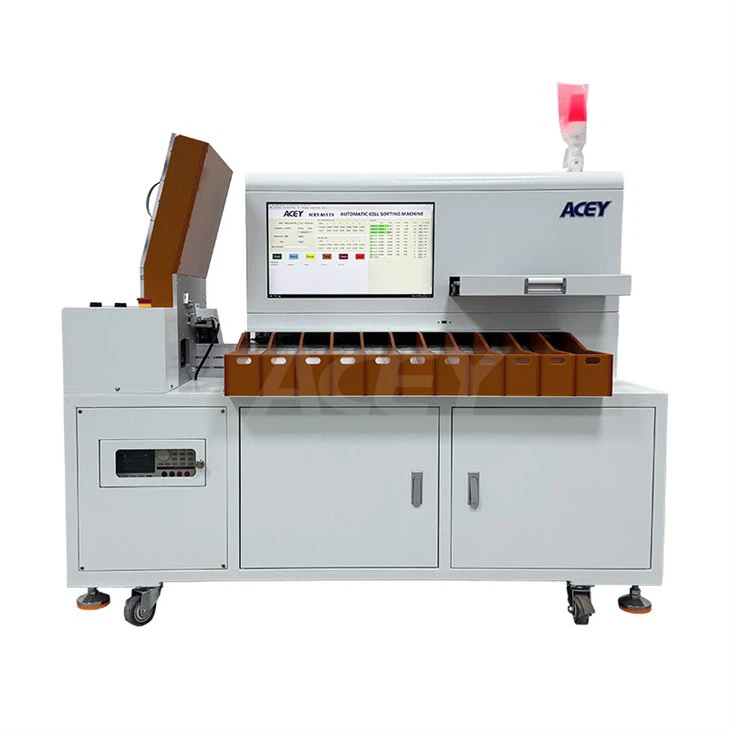

18560 Battery Sorter Lithium Cell IR Sorting Machine
Model No.: ACEY-AS11S
Battery Types: 18650/21700/26650/32650/32700
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of 18560 battery sorter lithium cell ir sorting machine in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for 18560 battery sorter lithium cell ir sorting machine.
11 Channels Lithium Battery Cell IR Sorting Machine for Cylindrical Battery Assembly
Products Description

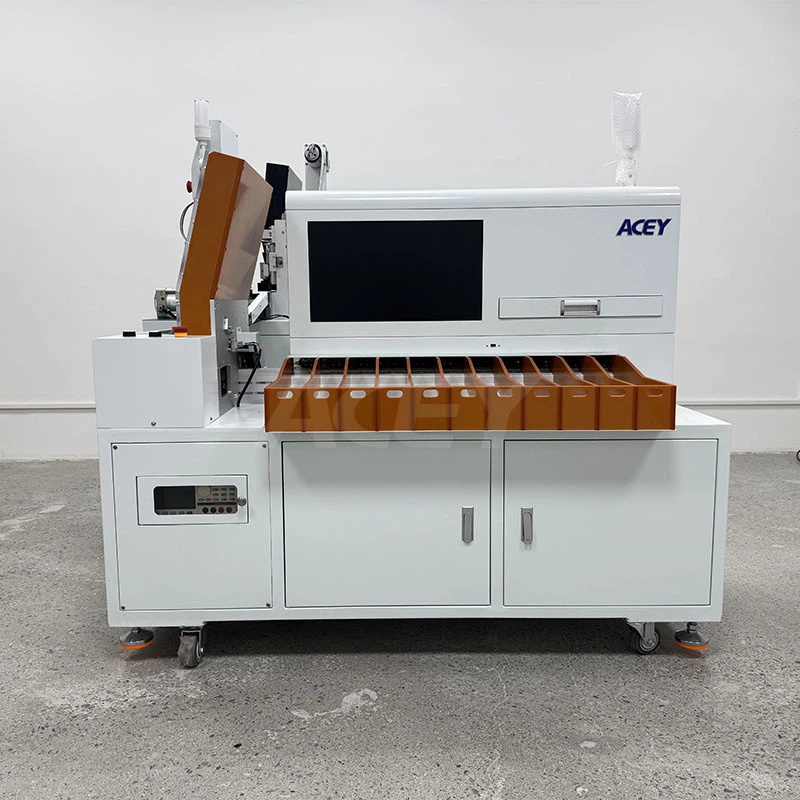

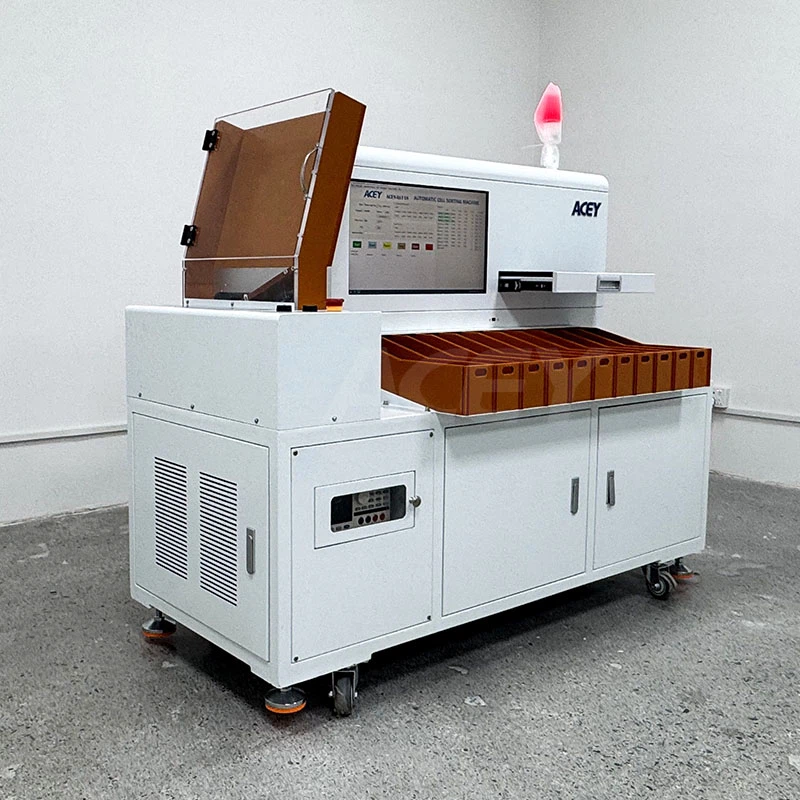

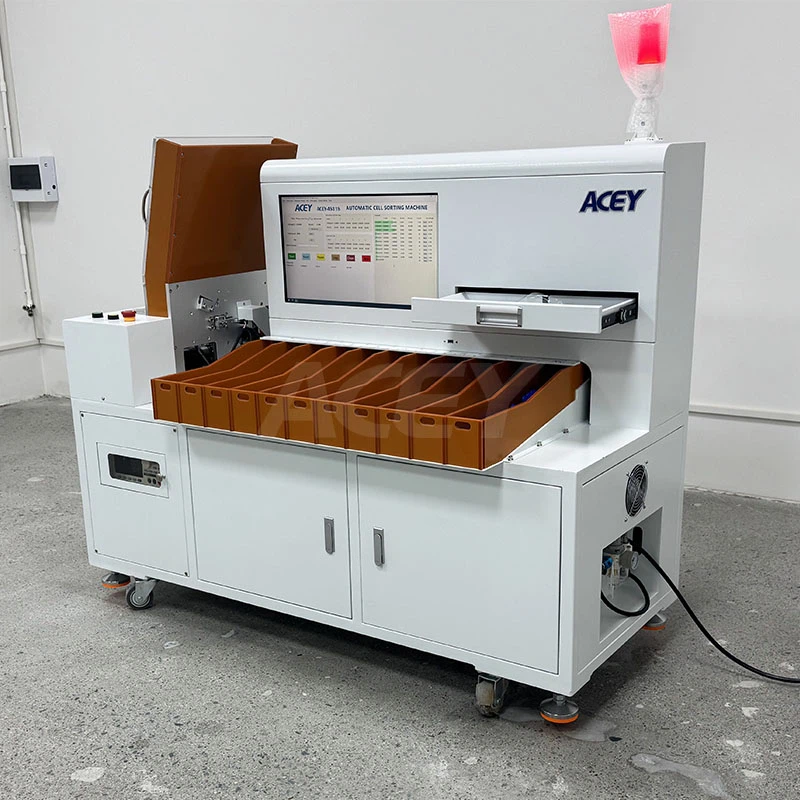

The ACEY-AS11S Automatic Battery Sorting Machine is a high-precision equipment specifically designed for cylindrical lithium batteries (such as 18650). It performs rapid testing and sorting based on voltage and internal resistance, making it ideal for battery production lines, cell grading, and pre-PACK processes.
Equipped with an advanced detection system and intelligent control technology, this machine ensures high-speed, high-accuracy, and fully automated sorting operations, significantly improving production efficiency and battery consistency.
Features
1. Automatic Sorting Function
Automatically measures battery voltage and internal resistance, and sorts cells into different grades.
2. High-Precision Testing System
Ensures accurate measurement of internal resistance and voltage for reliable consistency control.
3. Multi-Channel Sorting Design
Equipped with 10 sorting channels + 1 NG (defective) channel, offering flexible classification options.
4. High Throughput
Sorting speed up to 80 pcs/min (80 ppm), improving production efficiency.
5. One-Click Setting
Intelligent parameter setup simplifies operation and reduces manual intervention.
6. Wide Compatibility
Standard configuration supports 18650 cells, with customization available for other battery types.
Specification
| Item | Specification |
|---|---|
| Model | ACEY-AS11S |
| Power Supply | Single-phase AC 220V ±10% / 50Hz ±10% |
| Power Consumption | < 800W |
| Applicable Battery | 18650 (customizable for other sizes) |
| Sorting Channels | 10 channels + 1 NG channel |
| Test Parameters | AC Internal Resistance, DC Voltage |
| Internal Resistance Range | ≤ 80 mΩ |
| Internal Resistance Accuracy | ±0.5% rdg |
| Internal Resistance Resolution | 0.01 mΩ |
| Voltage Range | ≤ 8V |
| Voltage Accuracy | ±0.015% rdg |
| Voltage Resolution | 0.01 mV |
| Sorting Speed | Approx. 80 pcs/min |
| Intelligent Function | One-Click Setting |
| Machine Dimensions | L1430 × W660 × H1350 mm |
| Weight | < 200 kg |
Product Details
