2 In1 Integrated Battery Sorting And Insulation Paper Sticking Machine For 18650 Cell
Model No.: ACEY-SS11
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 2 in1 integrated battery sorting and insulation paper sticking machine for 18650 cell in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

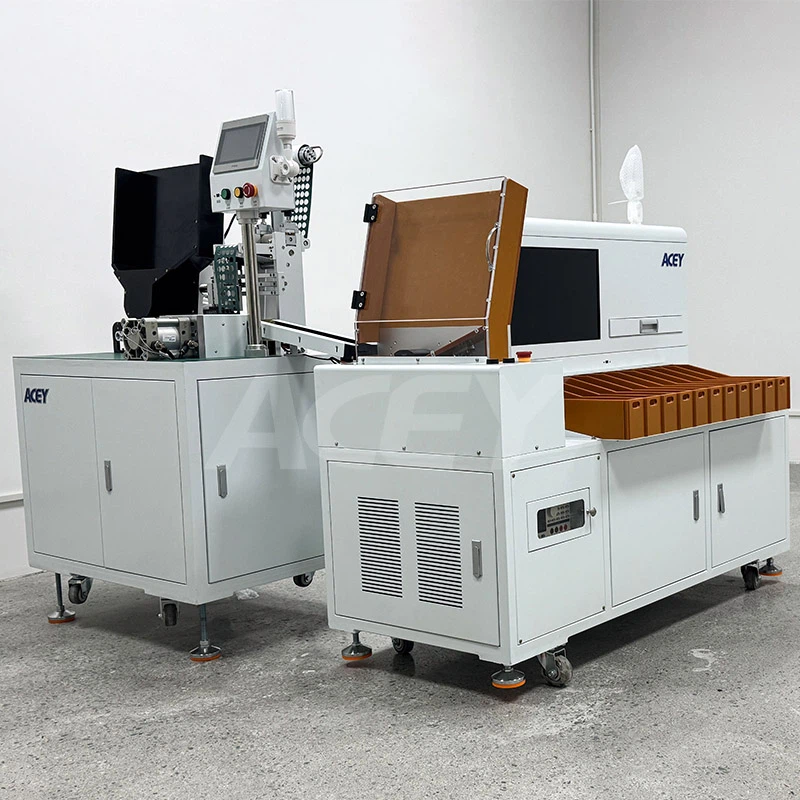

2 In1 Integrated Battery Sorting and Insulation Paper Sticking Machine for 18650 Cell
Products Description
The 2 in 1 automatic battery sorting and insulation paper pasting machine is an integrated solution designed for cylindrical lithium battery pack assembly. It combines two key processes - cell sorting (by voltage and internal resistance) and insulation paper sticking - into a single machine, significantly improving production efficiency and reducing labor costs. Compared with separate machines, this integrated system saves factory space and simplifies production workflow, making it ideal for small and medium battery pack production lines. The machine supports multiple cylindrical cell types such as 18650, 21700, 26650, and 32700, and allows flexible operation either as a combined system or independently.
Specification
|
Model No.: |
ACEY-BS01 |
|
Input gas source |
0.4-0.8Mpa |
|
Function Style: |
stepper drive with pneumatic |
|
Input voltage: |
AC220V |
|
Sticker Matrials: |
Barley paper or PVC |
|
Sticker Matrials Size: |
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM |
|
Adaptable Battery Cell |
18650/21700/26650/32650/32700 battery Plus-n-Minus |
|
Power: |
Electric power or pneumatic |
|
Control Instrument: |
7.5feet contact screen,PLC programming machine and step motor |
|
Electrodes to the body distance: |
100 mm (Scalable adjustable) |
|
Producivity: |
4000-4500pcs/h; singal 4pcs |
|
External dimensions |
1000MM*710MM*1500MM |
|
Model No.: |
ACEY-AS11S |
|
Electricity Source: |
Single-phase 220VAC |
|
power: |
0.8KW |
|
Working gas source: |
0.4-0.8MPa |
|
Adaptation battery: |
18650/21700/26650/32650/32700 |
|
Efficiency: |
6000pcs batteries per hour |
|
Dimensions : |
Length 143 * W 66 * H 135cm |
|
Weight: |
About 200KG |
|
Instrument: |
Precision voltage resistance tester (optional) |
|
Batteries Sorting Parameters: |
Open circuit voltage & AC resistance |
|
Open circuit voltage accuracy : |
± 0.015% rdg |
|
Display Resolution: 0.01 millivolt |
|
|
AC resistance accuracy: |
± 0.5% rdg |
|
Display Resolution: 0.01 milliohm |
FAQ
Q1: What is a 2 in 1 battery sorting and pasting machine?
It is an integrated system that combines battery sorting and insulation paper sticking in one machine.
Q2: Why choose an integrated machine?
Because it reduces labor, saves space, and improves production efficiency.
Q3: What batteries are supported?
It supports cylindrical lithium batteries such as 18650, 21700, 26650, and 32700.
Q4: Can the two functions work independently?
Yes, sorting and pasting can be used together or separately.
Product Details
