Cylindrical Battery Fish Paper Sticking Machine
Model No: ACEY-BS01
Battery Type: Cylindrical Cell 18650 21700 26650 32650 32700
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of Cylindrical Battery Fish Paper Sticking Machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
18650 21700 26650 32650 32700 Automatic Insulation Paper Sticking Machine for Battery Pack Assembly
Products Description

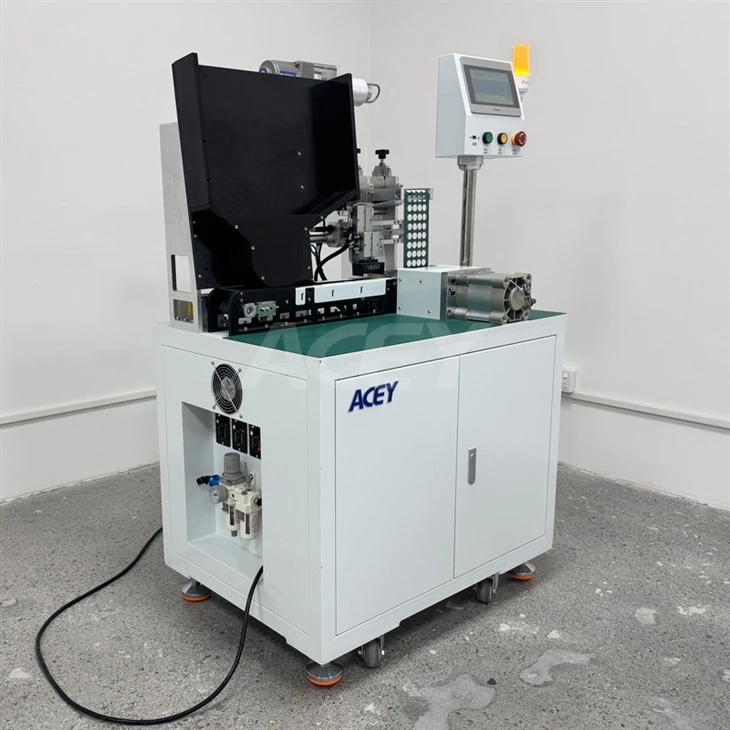

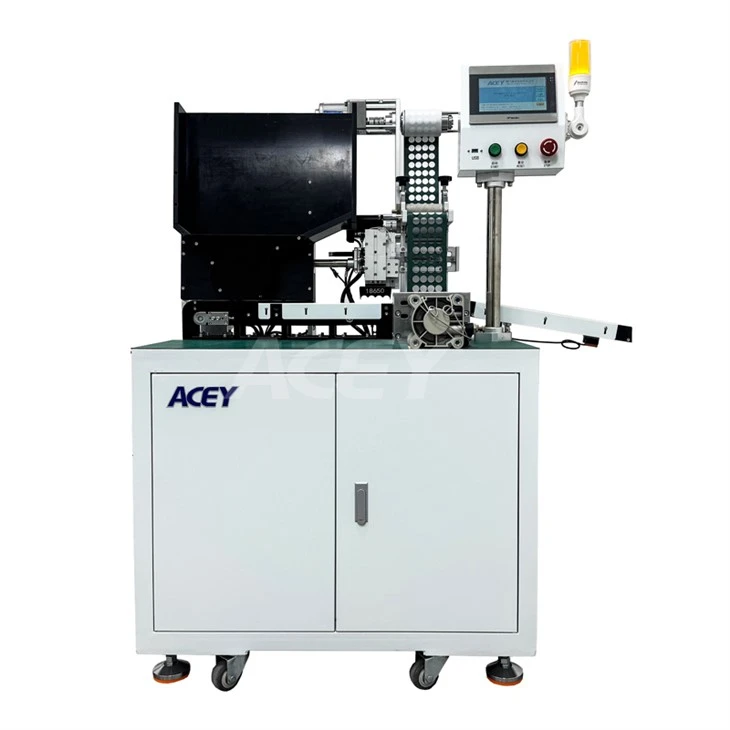

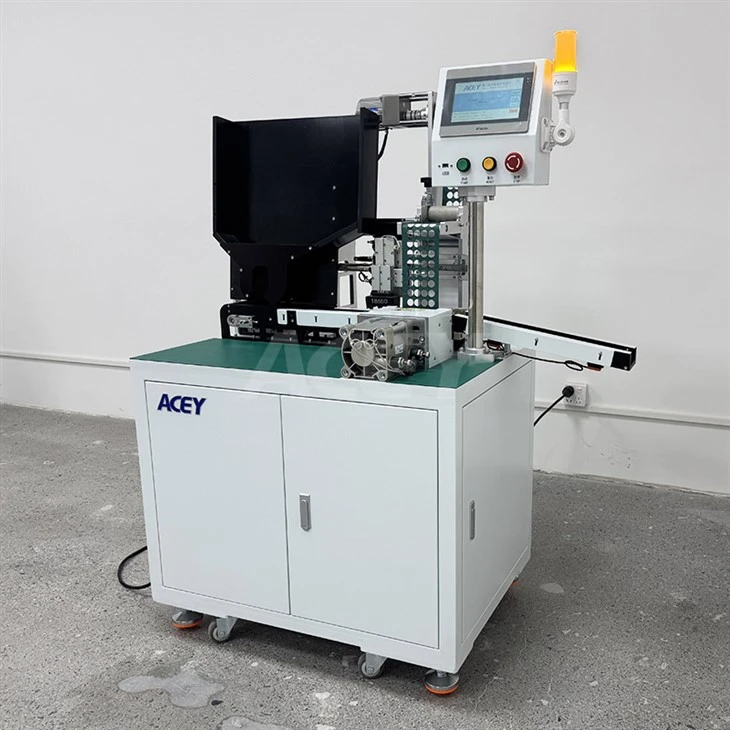

ACEY-BS01 automatic insulation paper sticking machine is specially designed for cylindrical lithium battery pack assembly production. The equipment automatically applies insulating fish paper or highland barley paper onto the positive or negative terminals of cylindrical battery cells to improve insulation protection and assembly safety.
The machine is suitable for various cylindrical battery models including 18650, 21700, 26650, 32650, 32700, 32140 and customized cell sizes. It is widely used in EV battery pack production, energy storage battery assembly lines, and lithium battery manufacturing factories.
Advantages
High Precision Paper Sticking
The equipment adopts precise positioning technology to ensure consistent insulation paper alignment and firm adhesion on every battery cell.
Stable High-Speed Production
The machine can achieve continuous automatic operation with high efficiency, suitable for mass battery pack manufacturing.
Easy Operation
Equipped with a touch screen control system, operators can quickly adjust parameters and switch production modes.
Wide Battery Compatibility
Supports cylindrical lithium battery cells such as: 18650, 21700, 26650, 32650, 32700.
Specification
|
Model No.: |
ACEY-BS01 |
|
Rated power |
2KW |
|
Surface pad material |
highland barley paper or PVC material |
|
Material specification requirements |
the max diameter of barley paper roll material is 350MM, |
|
batrery type |
18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material |
|
Feeding method |
insert battery cell hopper: 400pcs each time, available for 2 separate inserting units BNX-350 auto pasting |
|
Pneumatic pressure |
0.4-0.8Mpa barley paper machine |
|
Cushioning power |
electric or pneumatic |
|
Control device |
7.5 inch touch screen, PLC programmer and servo motor |
|
Barley paper roll width |
100mm |
|
Speed |
4000-4500PCS/hour, 4PCS per punch |
|
Dimensions |
L1110mm*W710mm*H1580mm |
|
Machine weight |
200Kg |
|
Knife mold |
slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water |
Product Details
