Electric Drying Oven for Battery Material Research
Item No.: ACEY-DZF
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of Electric Drying Oven for Battery Material Research in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

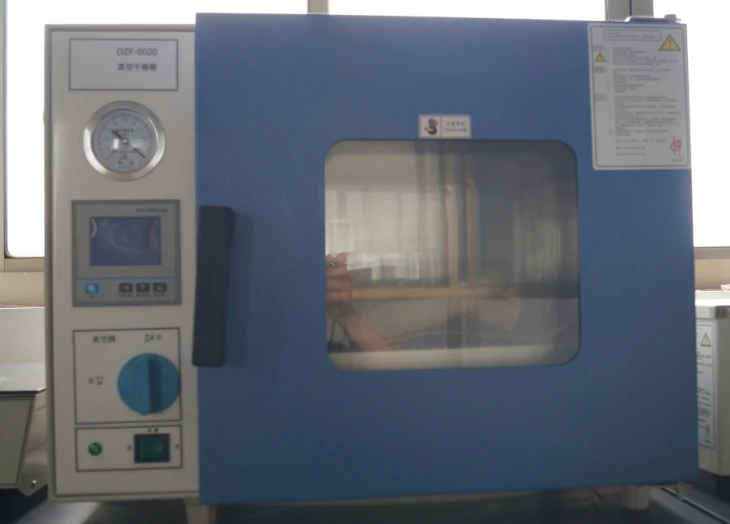

Laboratory Electric Drying Oven for Battery Material Research
Product Description
The laboratory electric drying oven is designed for drying, baking, heat treatment and thermal testing applications in laboratories, universities, research institutes and industrial environments.
This hot air circulation drying oven provides stable temperature control and uniform heat distribution, making it suitable for lithium battery material drying, electrode drying, sample heating and laboratory thermal processing applications.
Features
1. Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.
2. The cuboid studio maximizes the effective volume.
3. The tempered and bulletproof double-layer glass door allows you to observe objects in the studio clearly at a glance.
4. The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures high vacuum in the box.
5. The studio is made of stainless steel plate or brushed plate to ensure the product is durable.
6. Series with "D" are intelligent ten-segment programmable LCD controllers.
7. The "LC" series can be controlled by the vacuum display screen.
Specification
| model | Vacuum drying oven DZF series | |||||||||
| DZF-6500 | DZF-6210 | DZF-6090 | DZF-6050 | |||||||
| DZF-6500D | DZF-6210D | DZF-6090D | DZF-6050D | |||||||
| DZF-6500LC | DZF-6210LC | DZF-6090LC | DZF-6050LC | |||||||
| DZF-6053 | ||||||||||
| voltage | 380V 50Hz | 220V 50Hz | ||||||||
| input power | 3600W | 2200W | 1400W | 1450W | ||||||
| Temperature control range | +10℃～200℃ | +10℃～250℃ | ||||||||
| Temperature resolution | 0.1℃ | |||||||||
| Constant temperature fluctuation | ±1℃ | |||||||||
| reach vacuum | <133Pa | |||||||||
| Working temperature | 5℃～40℃ | |||||||||
| Inner tank size (mm) | 630*810*845 | 560*600*640 | 450*450*450 | 415*370*345 | ||||||
| Overall dimensions (mm) | 790*1030*1855 | 720*805*1680 | 610*660*1400 | 730*560*550 | ||||||
| shelf | 4 pieces (independent temperature control) | 3 pieces (independent temperature control) | 2 pieces (independent temperature control) | DZF-6050 2 pieces | ||||||
| DZF-6053 3 pieces | ||||||||||
| studio materials | Stainless steel(1Gr18Ni9Ti) | |||||||||
| Timing range | 1～9999 minutes | |||||||||
| model | Vacuum drying oven DZF series | |||||||||
| DZF-6051 | DZF-6021 | DZF-6020 | DZF-6030A | DZF-6020B | ||||||
| DZF-6020D | (Chemistry only) | DZF-6030B | ||||||||
| DZF-6030AD | DZF-6050B | |||||||||
| (Chemistry only) | (Special for biology) (Special for Chinese herbal medicine) | |||||||||
| voltage | 220V 50Hz | |||||||||
| input power | 1450W | 450W | 350W/450W | |||||||
| Temperature control range | +10℃～200℃ | +10℃～250℃ | +5℃～65℃ | |||||||
| Temperature resolution | 0.1℃ | |||||||||
| Constant temperature fluctuation | ±1℃ | ±0.5℃ | ||||||||
| reach vacuum | <133Pa | |||||||||
| Working temperature | 5℃～40℃ | |||||||||
| Inner tank size (mm) | 415*370*345 | 300*300*275 | 320*320*300 | 300*300*275 | ||||||
| 320*320*300 | ||||||||||
| 415*370*345 | ||||||||||
| Overall dimensions (mm) | 730*560*550 | 605*490*450 | 630*510*490 | 605*490*450 | ||||||
| 630*510*490 | ||||||||||
| 730*560*550 | ||||||||||
| Loading bracket (standard) | 2 pieces | 1pieces | DZF-6020B 1pieces | |||||||
| DZF-6030B 1 pieces | ||||||||||
| DZF-6050B 2 pieces | ||||||||||
| studio materials | cold rolled plate(08F) | Stainless steel(1Gr18Ni9Ti) | ||||||||
| Timing range | 1～9999 minutes | |||||||||
Products Details
