ESS EV Battery Pack Testing Machine With Energy Feedback
Item No.: ACEY-BA100100-12
Order(Moq): 1 set
Compliance: CE Certified
Application:Ternary lithium, lithium iron phosphate, lead-acid, nickel-metal hydride, and nickel-cadmium battery packs
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of ess ev battery pack testing machine with energy feedback in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
100V 100A Energy Feedback Battery Pack Aging Testing Machine for EV & ESS Batteries
Product Description
ACEY-BA100100-12 is a high-power battery charge discharge test equipment designed for battery manufacturers, EV battery pack producers, energy storage system integrators and research laboratories. With a voltage range of 10V-100V and charge/discharge current up to 100A, the equipment is suitable for lithium-ion battery packs, LiFePO4 battery packs, lead-acid batteries, NiMH batteries and NiCd batteries.
The system adopts advanced energy feedback technology, allowing the discharged energy to be returned to the power grid, significantly reducing operating costs and heat generation during long-term cycling tests. Each channel operates independently, enabling flexible test scheduling, battery aging evaluation, capacity verification, cycle life testing and battery pack performance validation for EV and ESS applications.
Product Advantages
- The equipment offers a high accuracy of ±(0.1%RD + 0.1%FS) with excellent stability.
- Energy feedback design for lower power consumption
- 12 independent test channels with flexible programming
- Supports lithium-ion, LiFePO4, lead-acid, NiMH and NiCd battery packs
- Real-time voltage, current, capacity, energy and temperature monitoring
- Supports MES system integration
- Data export to Excel and graphical reports
- Suitable for EV battery packs, ESS battery systems and battery module testing
- The cabinet is expandable for future capacity extension.
Function
- Battery pack cycler aging machine
- Battery pack capacity test
- Battery pack charge/discharge characteristics test
- Battery pack temperature characteristics test
Parameters
| Item | Specification |
| Model | ACEY-BA100100-12 |
| 12 | |
| 10V-100V | |
| Charge Current | 0.1A-100A |
| Discharge Current | 0.1A-100A |
| 10KW | |
| ±0.05%FS + ±0.05%RD | |
| Current Accuracy | ±0.05%FS + ±0.05%RD |
| Data Recording Interval | ≥5s |
| CC / CV / CCCV | |
| Constant Current | |
| Cycle Times | Max 9999 |
| Communication | PC Software |
| Excel & Graph Reports | |
| AC 380V 3-Phase | |
| Applicable Batteries | Li-ion, LiFePO4, Lead-acid, NiMH, NiCd |

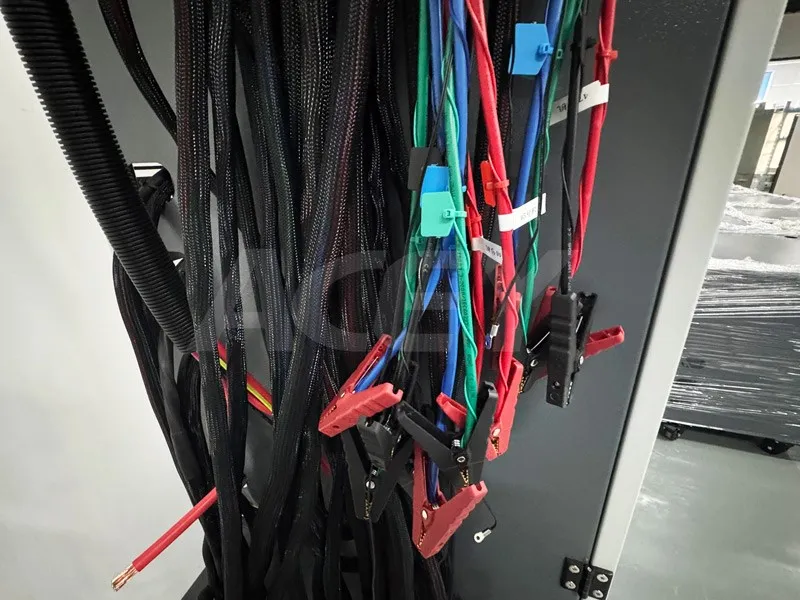

| Test channel and battery pack connection method | Alligator clamp/OT clamps |
| Equipment testing environment and technical requirements | Single cabinet requires 30KW 380V three-phase four-wire power configuration, ventilation and dry plant Working environment: temperature -10℃～40℃ / humidity: 10%～90% |

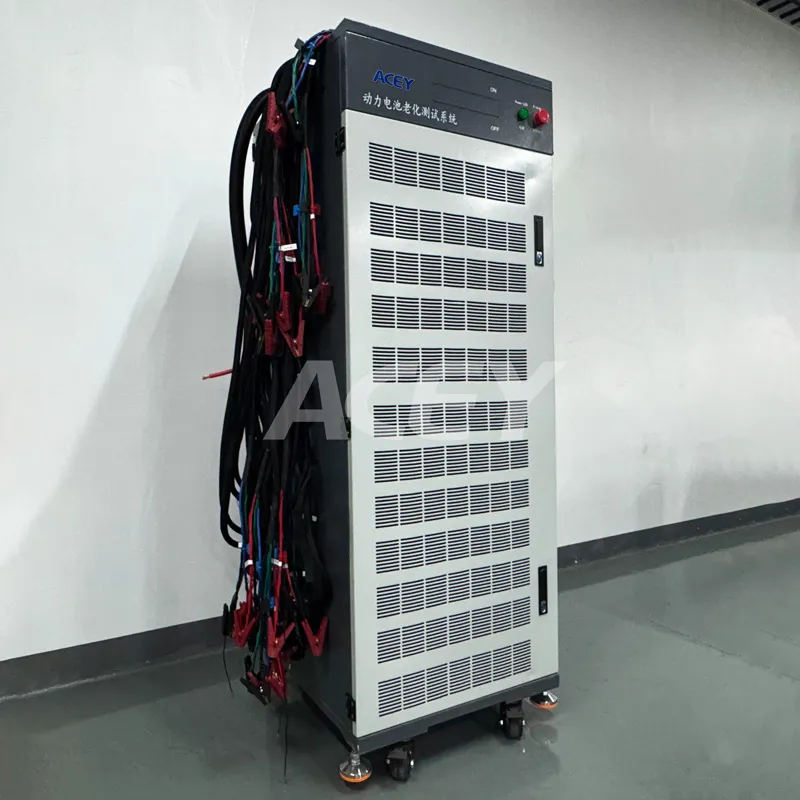

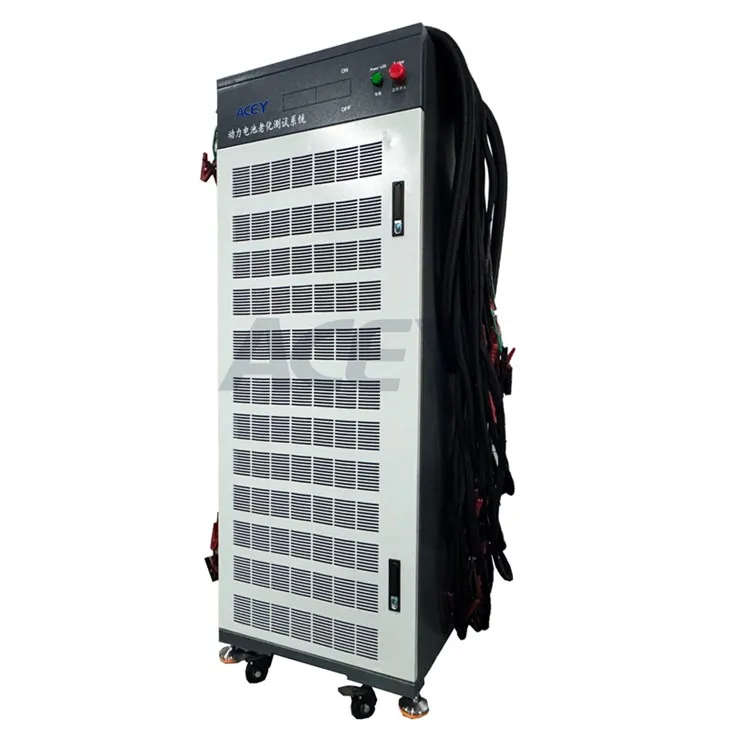

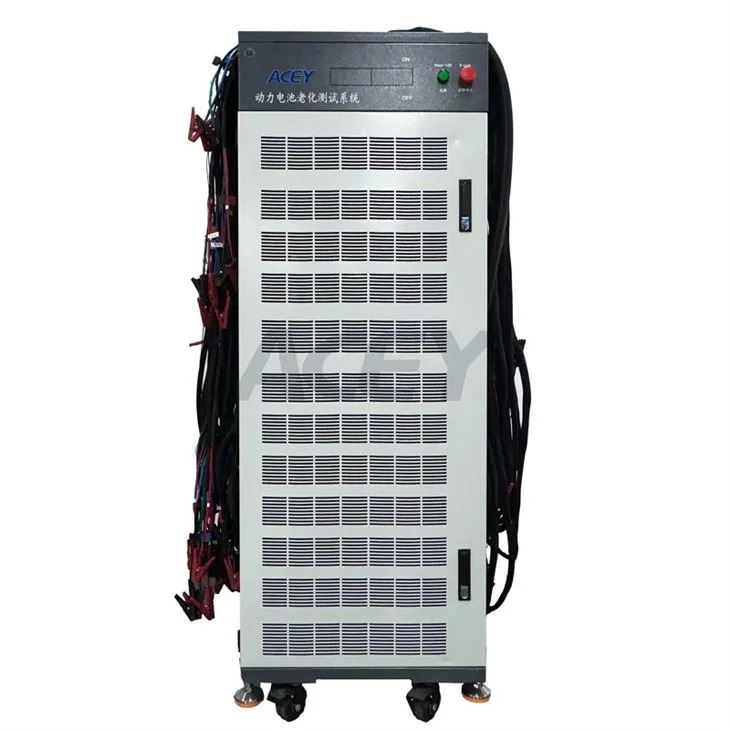

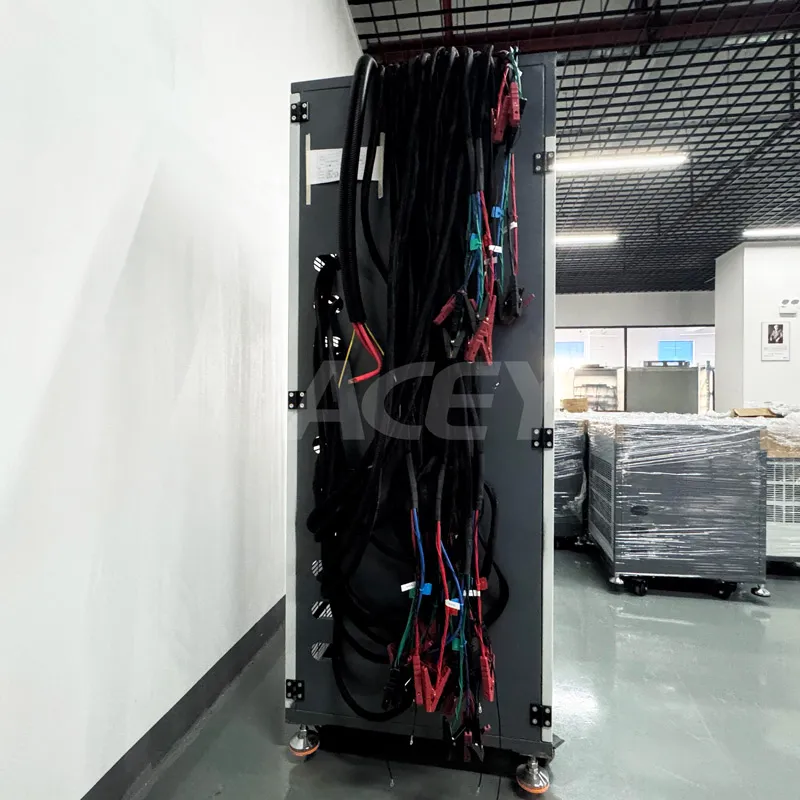

Product Display
