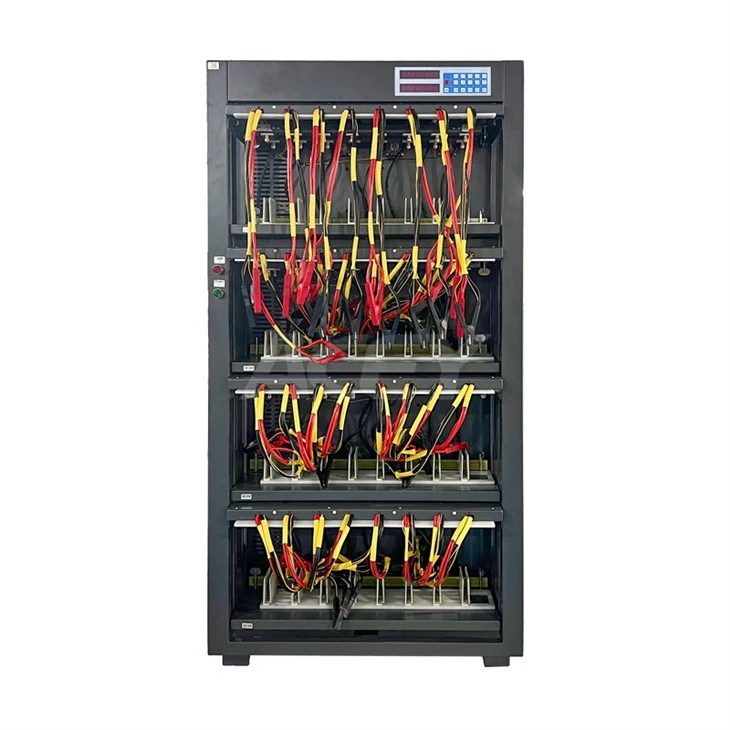

5V 60A Lithium Cell Grading Machine With Different Fixtures
Model No.: ACEY-BCT560-64P
Battery Type: Prismatic Battery,Polymer Battery
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 5v 60a lithium cell grading machine with different fixtures in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
64 Channels 5V 60A Customizable Lithium Cell Grading Machine for Cylindrical Prismatic Pouch Cell
Products Description

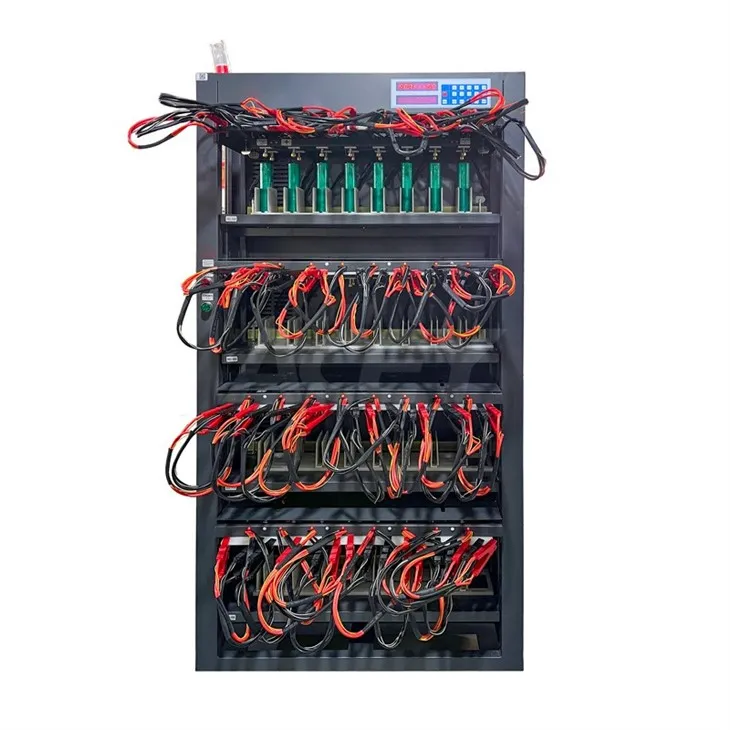

The ACEY-BCT560-64 Battery Charge Discharge Machine is designed for lithium-ion battery cell formation, capacity testing, cycle life evaluation and cell sorting applications. Equipped with 64 independent testing channels, the system allows simultaneous charging and discharging of multiple cells while ensuring highly accurate measurement and reliable performance.
The machine adopts advanced energy feedback technology that recovers discharge energy back to the power grid, significantly reducing electricity consumption and operating costs. It is suitable for battery manufacturers, EV battery pack producers, energy storage system manufacturers and research laboratories. Supporting prismatic cells, pouch cells and cylindrical cells, the tester provides flexible fixture customization according to customer battery dimensions.
Features
Each battery is powered by an independent constant-current and constant-voltage source, ensuring stable operation without current impact.
The system features 64 independent testing channels for stable and accurate battery testing.
The equipment keyboard panel supports manual setup of test procedures, parameter display, and sorting operations.
Real-time monitoring and display of each individual battery's status is provided.
Abnormal channels will automatically stop, and an indicator light will illuminate for quick identification.
Power-off protection allows the equipment to resume the previous testing process after power is restored.
A graphical operation interface clearly shows battery voltage, current, time, capacity, working status, and abnormal conditions.
Powerful software with a user-friendly interface enables convenient operation and efficient data management.
A four-wire testing interface ensures high measurement accuracy.

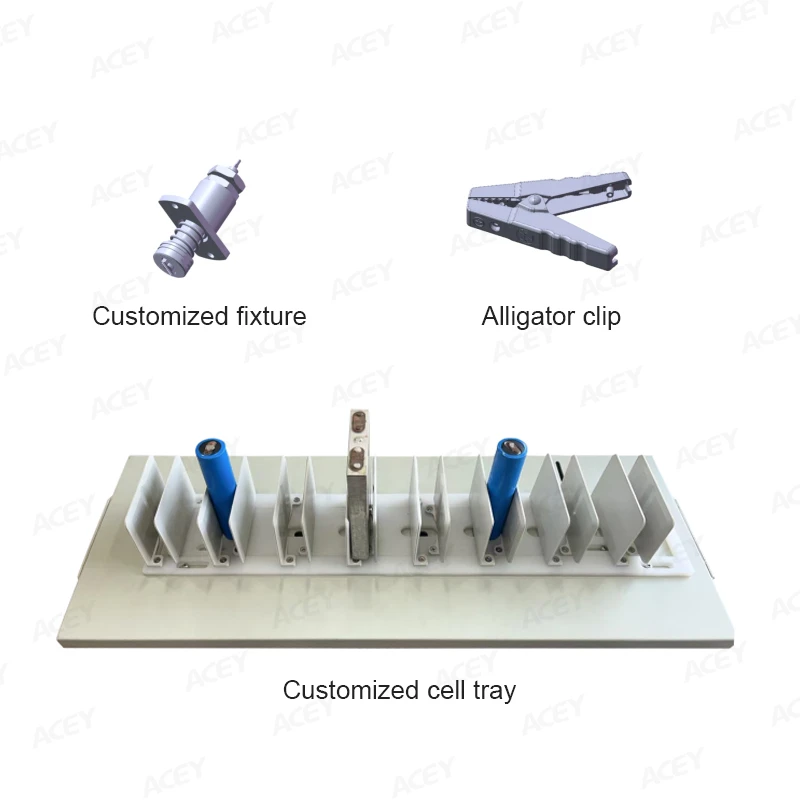

Customized flat-head clamps are included, with optional alligator clips available for pouch cell testing.
Specification
| Equipment Structure | |
| Item | Specification |
| Number of Channels | 64 channels in total |
| Cabinet Color | Standard gray-white / gray-black, customizable |
| Fixture Type | Flat-head clamps, optional alligator clips |
| Fixture Spacing | 81 mm |
| Loading Method | Motorized upward pushing |
| Channel Control Mode | Each battery has an independent constant-current and constant-voltage source, ensuring stable operation without impact |
| Supports start, stop, pause, resume, and protection functions | |
| Each channel is equipped with independent constant-voltage and constant-current hardware control circuits | |
| Charging and discharging current accuracy of each channel can be automatically calibrated by software | |
| Working Power Supply | Three-phase five-wire AC380V±10%, 50Hz |
| Power Factor | 0.99 @220VAC, full load, grid THDu ≤2% |
| Current Harmonics | <5% @220VAC, full load, grid THDu ≤2% |
| Power Module Efficiency | Charging ≥80%, discharging ≥70% |
| Working Power Consumption | ≤22.6 kW |
| Equipment Failure Rate | <1% |
| Status Indicator | Three-color status indicator light |
| Cooling Method | Natural air intake, upward air exhaust |
| Power Component Protection | Grid voltage over-limit protection; grid frequency over-limit protection |
| Channel Parameters | |
| Item | Specification |
| Voltage Measurement Range | DC 0–5V |
| Battery Voltage Range | Charging: DC 0–4.5V; Discharging: DC 4.5–2V |
| Constant Voltage Range | DC 2–4.5V |
| Voltage Accuracy | ±(0.5‰ of reading + 0.5‰ of full scale) |
| Voltage Control Resolution | 1 mV |
| Voltage Sampling Resolution | 1 mV |
| Current Range | Charging: DC 120mA–60A; Discharging: DC 120mA–60A |
| Current Accuracy | ±(0.5‰ of reading + 0.5‰ of full scale) |
| Current Control Resolution | 1 mA |
| Current Sampling Resolution | 1 mA |
| Current Rise Time | ≤50 ms, 90% load |
| Channel Start Time | ≤50 ms, 90% load |
| Software Functions | |
| Item | Specification |
| Control Method | Computer-controlled operation, whole-cabinet control, with scanning system |
| Communication Method | RS485 serial communication, baud rate 57600 / TCP communication |
| Process Setting | Up to 64 working steps and 256 cycles can be set |
| Charging Modes | Constant current, constant voltage, constant current & constant voltage |
| Charging Cut-off Conditions | Voltage, current, time, capacity, -ΔV |
| Discharging Modes | Constant current, constant power, constant resistance |
| Discharging Cut-off Conditions | Voltage, time, capacity |
| Time Range | 0–3000 minutes per step |
| Time Accuracy | ≤±1‰ |
| Sampling Inspection Cycle | 1–60 seconds, selectable |
| Battery Sorting | Sorting by capacity, time, open-circuit voltage, discharge platform, etc. |
| Data Processing | Records voltage, current, time, capacity, and other data; automatically calculates constant-current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, etc.; provides data curves and cycle graphs; supports export in TXT, Excel, Word, or MDB database format |
Compatible Cell Size Range
| Cell Type | Item | Range |
| Prismatic Cells | Length | 80–300 mm |
| Thickness | 15–75 mm | |
| Width | 80–230 mm | |
| Tab Center Distance | 50–250 mm | |
| Cylindrical Cells | Length | 80–230 mm |
| Diameter | 26–72 mm |
