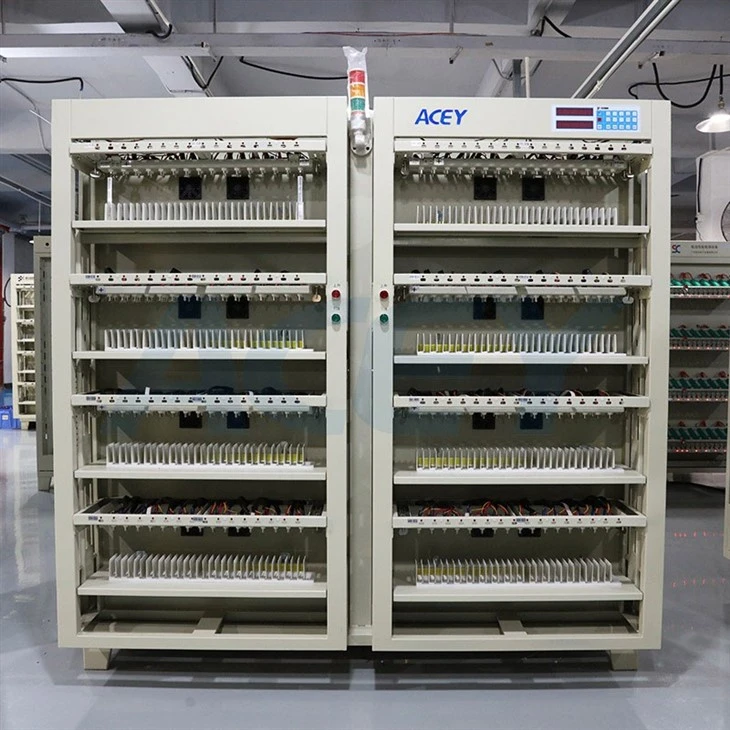

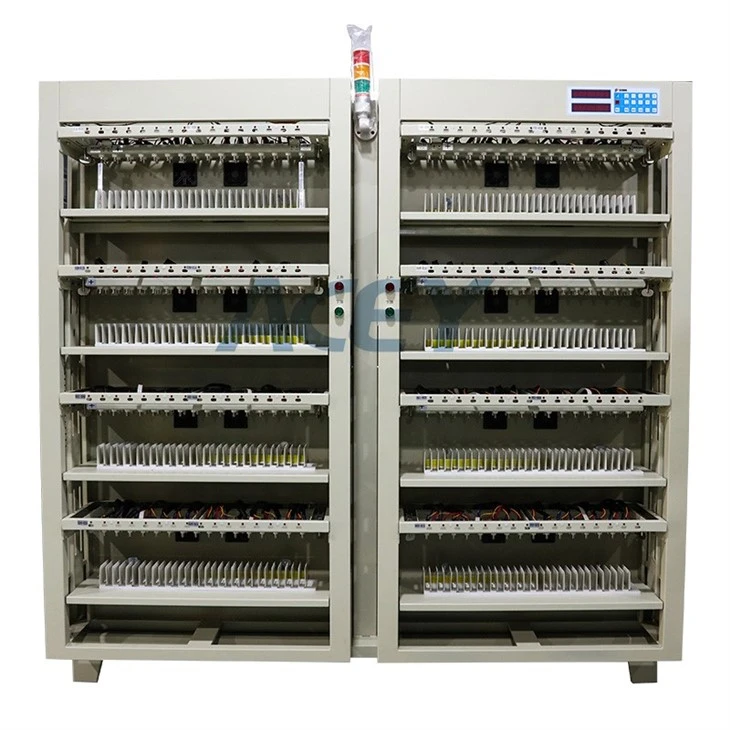

5V 10A 256Chs Prismatic Lithium Cell Grading Machine
Model No.: ACEY-BCT510-256H
Battery Type: Prismatic Battery
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 5v 10a 256chs prismatic lithium cell grading machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
Customized 5V 10A 20A 30A 256Chs Prismatic Lithium Cell Grading Machine
Product Description
ACEY-BCT510-256H 5V 10A 20A 30A cell grading machine provides an integrated solution for comprehensive performance testing and evaluation of lithium-ion batteries. Incorporating advanced measurement technologies, the system delivers accurate analysis of key parameters such as voltage, current, temperature, and related performance indicators. Designed with an intuitive, user‑friendly interface and built with durable construction, it ensures consistent reliability and ease of operation. The system integrates a full suite of technologies including high‑precision data acquisition, network communication, computer‑based software, and specialized hardware for a complete testing platform.The system integrates a full suite of technologies including high‑precision data acquisition, network communication, computer‑based software, and specialized hardware for a complete testing platform.The equipment is connected and controlled by computer, sending instructions and collecting data.
Features
1. Each battery test channel operates independently, allowing separate configuration of charging and discharging steps for individualized testing control.
2. The equipment provides a measurement accuracy of 0.05%, records data at 1‑second intervals, and maintains high operational stability.
3. The software delivers extensive functionality through an intuitive and user‑friendly interface.
4. A four‑wire test interface ensures precise measurement accuracy, while the modular design facilitates straightforward maintenance and serviceability.
5. Modular design, easy to maintain.
6. The digital current and voltage automatic calibration function.
Specification
| Number of equipment channels | The whole machine has 256chs |
| External dimension | Length 1684* width 1091* height 1640 |
| Case color | Standard gray / black (customizable) |
| Clamp type | Flat head clamp (optional with crocodile clamp) |
| Clamp spring | 37MM |
| Support battery specifications | Diameter range: 32-34MM, length range: 120-180MM |
| Channel control mode |
Each channel supports independent control of start, stop, pause, resume, and protection functions. |
|
Every channel is equipped with an independent hardware control circuit for constant voltage and constant current regulation. |
|
|
The charging and discharging current accuracy of each channel can be automatically calibrated via software. |
|
| Working power supply | Three phase five wire AC380V土10%, 50Hz |
| Power factor | ≥0.99 |
| AC current distortion rate | ≤2% |
| efficiency of the whole machine | Charge 80%, discharge 70% |
| Power consumption work | ≤ 15.5KW |
| Equipment failure rate | <1% |
| Work environment | Temperature -10~40°C. Relative humidity 80% |
| Heat dissipation mode | Natural wind in, upward exhaust |
| Voltage measurement range | DC 0~5V |
| Battery voltage range | Charge DC 0~4.5V; discharge DC 4.5~2V |
| Constant voltage range | DC 2~4.5V |
| Voltage accuracy | ±(0.05% reading + 0.05% full), resolution ratio 1mV |
| Voltage stability | ≤(±1mV) |
| Current range | Charge DC 100mA～10A; Discharge DC 100mA～10A |
| Current accuracy | ±(0.05% reading + 0.05% full), resolution ratio 1mV |
| Current stability | ≤(±1mA) |
| Control mode | Computer control, can control the whole cabinet with scanning function |
| Communication mode | 485s port communication (port rate 57600)/ TCP |
| Process settings | Up to 32 steps and 256 cycles can be set |
| Charging mode | Constant current; constant pressure; constant current & pressure |
| Charging cut-off conditions | Voltage, current, time, capacity, - △ v |
| Discharge mode | Permanent flow, constant power, constant resistance |
| Discharging cut-off conditions | Voltage, time, and capacity |
| Protection function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery |
| Time frame | 0~3000 min / step in min |
| Time accuracy | ≤±0.1% |
| Sampling inspection cycle | 1s-60s optional |
| Battery sorting | Divide according to capacity, time, open-circuit voltage, discharge platform, etc. |
| Data processing | The system records key parameters including voltage, current, time, and capacity. It automatically calculates performance metrics such as constant current charging ratio, capacity loss, discharge efficiency, average voltage, and median voltage, and generates corresponding data curves and cycle diagrams. All data can be exported in a variety of formats including text, Excel, Word, or MDB files. |
