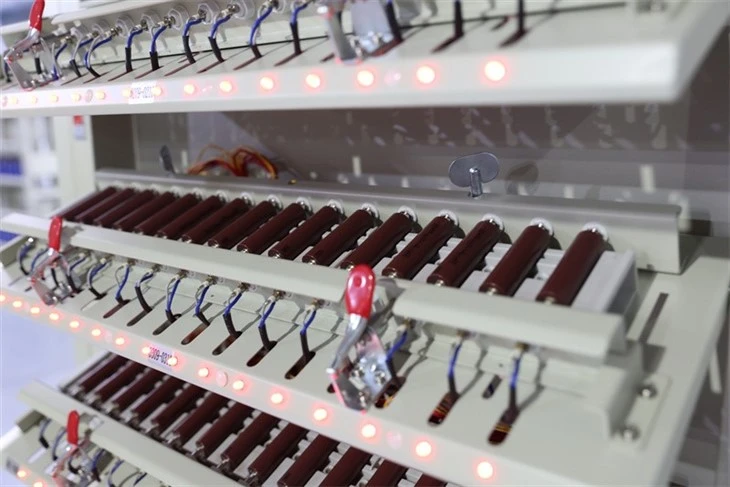

battery capacity tester

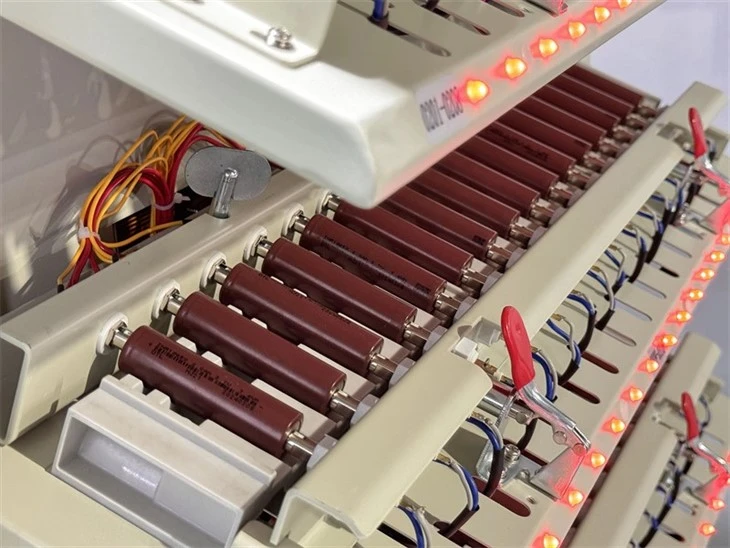

cell grading machine (1)

5V 3A 6A 256Chs Battery Charge Discharge Test Equipment

Name: China 5V 3A 6A 256Chs Battery Charge Discharge Test Equipment Manufacturers Suppliers - Acey New Energy
Brand: Acey
SKU: 286243403

Item: Battery Charge Discharge Tester
Model No.: ACEY-BCT503-256H
Battery Type: Cylindrical Battery
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance

Send Inquiry

Product Introduction

5V 3A 6A 256Chs 18650 Battery Charge Discharge Test Equipment for Cylindrical Cell

Product Description

The ACEY-BCT503-256H Lithium Battery Charge/Discharge Tester is a specialized device designed for evaluating the charge and discharge performance of lithium-ion batteries. It is primarily applied in power battery capacity grading, capacity verification, and cycle life testing. Serving as a mainstream solution in the field of power battery testing, this equipment effectively meets the essential performance assessment requirements of power battery systems.

Features

Each battery is equipped with an independent constant current and constant voltage source, ensuring stable operation without cross-channel interference.
The instrument provides high measurement accuracy of 0.1% with excellent long-term stability.
The software offers comprehensive functionality and an intuitive user interface.
A four-wire test interface is adopted to ensure precise measurement results.
Designed with a modular structure for easy maintenance and servicing.

Specification

Product Name	Cylindrical battery cell tester
Number of device channels	256 channels
Frame color	Creamy white
Clamp form	65MM jointed buckle polymer (customizable)
Fixture center distance	Manual (70mm)/electric (85mm)
working power	Three-phase five-wire system AC380V±10%, 50HZ
Working power dissipation	≤4.5KW
Work environment	Temperature 0-40 degrees, relative humidity ≤80%

Software function：

Control mode	Computer connection equipment work, FCL control
Communication mode	RS485 baud rate 57,600
Process set	A maximum of 32 work steps and 256 cycles
Charging mode	Constant current, constant pressure
Discharge cut-off condition	Voltage, time, capacity
Charging cutoff condition	Voltage, current, time, capacity
Discharge	Constant current
Defensive function	Over voltage, under voltage, over current, undercurrent, overcapacity, etc
Time range	Set it anywhere from 0 to 30,000 minutes
Battery sorting	By capacity, time, discharge platform, etc
Data processing	Data, graphs, and loop diagrams
