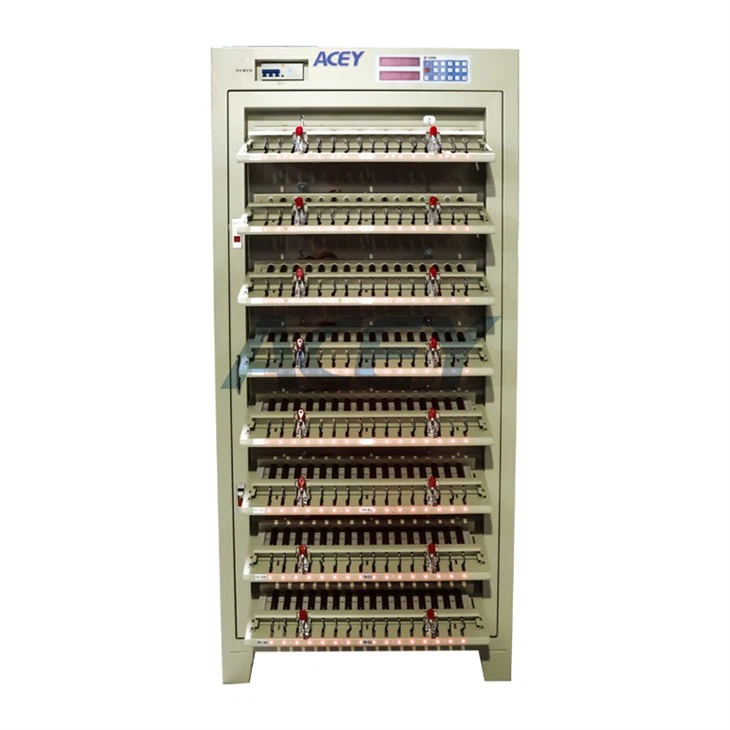

Li-ion Battery Capacity Tester Machine
Model No.: ACEY-BCT503-256H
Battery Type: Cyindrical Battery
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of li-ion battery capacity tester machine in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for li-ion battery capacity tester machine.
256-Channel 5V 3A 6A Lithium Ion Battery Capacity Tester for Cell Testing
Product Description
ACEY-BCT503-256H lithium ion battery capacity tester is a professional battery testing system designed for capacity measurement, charge-discharge cycling and performance evaluation of lithium battery cells.
It is widely used in lithium battery manufacturing, battery research laboratories and quality control departments for testing cell capacity, voltage characteristics and discharge performance.
With multi-channel independent control, high-precision current measurement and intelligent testing software, this battery cell tester improves testing efficiency and ensures reliable test data for battery grading.
Applications
- Lithium battery manufacturing factories
- Battery pack production lines
- EV battery assembly plants
- Energy storage system testing
Features
1. Multi-channel Independent Testing
Each testing channel operates independently, allowing multiple lithium cells to be charged and discharged simultaneously.
2. Accurate Capacity Measurement
High-precision current and voltage sampling ensures reliable capacity testing results.
3. Charge and Discharge Testing Function
Supports constant current charging, constant voltage charging and constant current discharge processes.

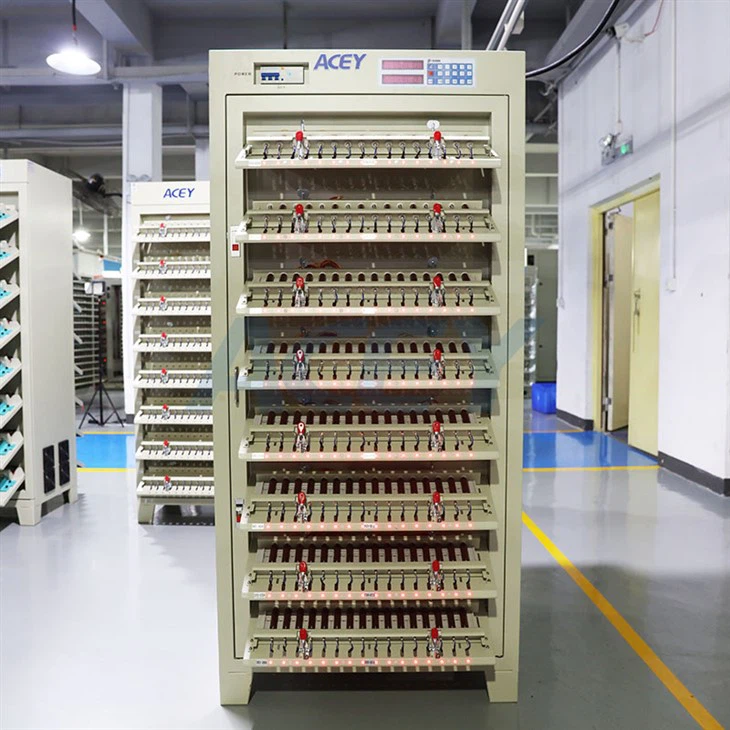

4. Battery Cell Grading Capability
The system can analyze capacity, voltage and discharge data for battery classification.
5. Intelligent Software Management
Testing parameters, curves and data can be monitored and exported through computer software.
6. Wide Battery Compatibility
Suitable for cylindrical lithium batteries including 18650, 21700, 26650 and other cell formats.
Specification
|
Product Name |
Cylindrical battery cell tester |
|
Number of device channels |
256 channels |
|
Frame color |
Creamy white |
|
Clamp form |
65MM jointed buckle polymer (customizable) |
|
Fixture center distance |
Manual (70mm)/electric (85mm) |
|
working power |
Three-phase five-wire system AC380V±10%, 50HZ |
|
Working power dissipation |
≤4.5KW |
|
Work environment |
Temperature 0-40 degrees, relative humidity ≤80% |
|
Software function |
|
|
Control mode |
Computer connection equipment work, FCL control |
|
Communication mode |
RS485 baud rate 57,600 |
|
Process set |
A maximum of 32 work steps and 256 cycles |
|
Charging mode |
Constant current, constant pressure |
|
Discharge cut-off condition |
Voltage, time, capacity |
|
Charging cutoff condition |
Voltage, current, time, capacity |
|
Discharge |
Constant current |
|
Defensive function |
Over voltage, under voltage, over current, undercurrent, overcapacity, etc |
|
Time range |
Set it anywhere from 0 to 30,000 minutes |
|
Battery sorting |
By capacity, time, discharge platform, etc |
|
Data processing |
Data, graphs, and loop diagrams |
Products Detais
FAQ
What does a lithium battery capacity tester measure?
A lithium battery capacity tester measures battery charging capacity, discharge capacity, voltage performance and cycle characteristics.
What is the difference between a battery capacity tester and a battery charger?
A battery charger only provides charging power, while a battery capacity tester can charge, discharge and analyze battery performance parameters.
Which batteries can be tested by this equipment?
The tester can be used for cylindrical lithium-ion cells such as 18650, 21700, 26650 and customized battery cells.
