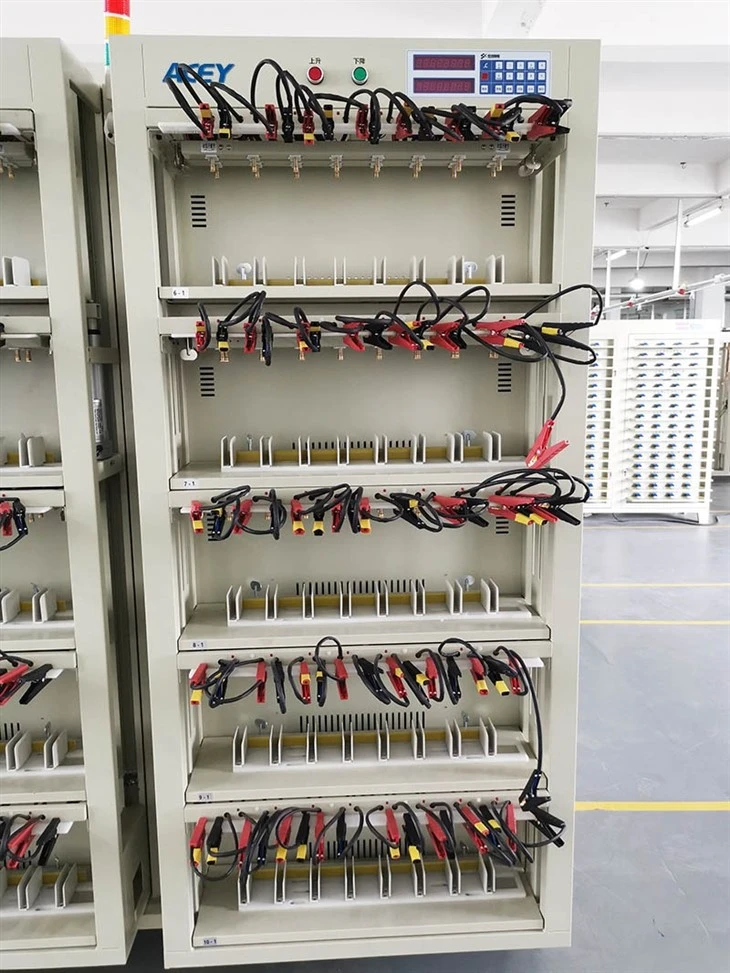

160 Channel 30A Prismatic Battery Capacity Tester
Model No.:ACEY-BCT530-160P
Battery Types:Prismatic Battery
Warranty:1 year
MOQ:1 set Package:Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 160 channel 30a prismatic battery capacity tester in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
160 Channel 5V 30A Prismatic Battery Charge Discharge Capacity Tester
Product Description
Prismatic lithium battery capacity tester is mainly composed of computer, communication interface and battery testing cabinet. Battery testing cabinet consists of a jig and a board body for placing the jig, constant current and constant voltage source, sampling circuit, dividing capacity control circuit, microcontroller and control panel. It is mainly used for power battery capacity separation, capacity testing and Cycle life testing, and is the mainstream in the field of power battery testing equipment to meet the needs of power battery.
Equipment Features
- The single point is independent, and the charging and discharging steps can be set independently for each battery test channel.
- The accuracy of the equipment is 0. 05%,the data recording time is 1s / time, and the stability is high.
- The software has powerful function and friendly man- machine interface.
- Four wire test interface ensures high measurement accuracy. Modular design concept, easy to mintain.
Equipment Structure
1. Independent CPU board, double keyboard board, front and back double side operation, the whole cabinet unified transmission control;
2. 20 sets of 8-channel constant current and constant voltage control module:
3. Two way AC / DC invertor module;
4. .Flat head clamp, eectric automatic clamping model.
Main Technical Parameters
| Number of equipment channels | The whole machine has 160chs |
| External dimension | Length 931* width 1861* height 2020 |
| Case color | Standard gray / black (customizable) |
| Clamp type | Flat head clamp (optional with crocodile clamp) |
| Clamp spring | 80MM |
| Support battery specifications | The battery range is 65-210mm in length, 20-70mm in thickness, 90-230m in height, and 45-160mm in polar ear. |
| Channel control mode | Each channel can be started, stopped, suspended, continued and protected independently. |
| Each channel has independent constant voltage and current. Hardware control circuit | |
| The accuracy of charging current and discharging current of each channel can be calibrated automatically by software | |
| Working power supply | Three phase five wire AC380V土10%, 50Hz |
| Power factor | ≥0.99 |
| AC current distortion rate | ≤2% |
| efficiency of the whole machine | Charge 80%, discharge 70% |
| Power consumption work | ≤ 29KW |
| Equipment failure rate | <1% |
| Work environment | Teaperature -10~40°C. Relative homidity 80% |
| Heat dissipation mode | Natural wind in, upward exhaust |
| Voltage measurement range | DC 0~5V |
| Battery voltage range | Charge DC 0~4.5V; discharge DC 4.5~2V |
| Constant voltage range | DC 2~4.5V |
| Voltage accuracy | ±(0.05% reading + 0.05% full), resolution ratio 1mV |
| Voltage stability | ≤(±1mV) |
| Current range | Charge DC 50mA～30A; Discharge DC 50mA～30A |
| Current accuracy | ±(0.05% reading + 0.05% full), resolution ratio 1mV |
| Current stability | ≤(±1mA) |
| Control mode | Computer control, can control the whole cabinet with scanning function |
| Communication mode | 485s port communication (port rate 57600)/ TCP |
| Process settings | Up to 32 steps and 256 cycles can be set |
| Charging mode | Constant current; constant pressure; constant current & pressure |
| Charging cut-off conditions | Voltage, current, time, capacity |
| Discharge mode | Permanent flow, constant power, constant resistance |
| Discharging cut-off conditions | Voltage, time, and capacity |
| Protection function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery |
| Time frame | 0~3000 min / step in min |
| Time accuracy | ≤±0.1% |
| Sampling inspection cycle | 1s-60s optional |
| Battery sorting | Divide according to capacity, time, open-circuit voltage, discharge platform, etc. |
Product Details
