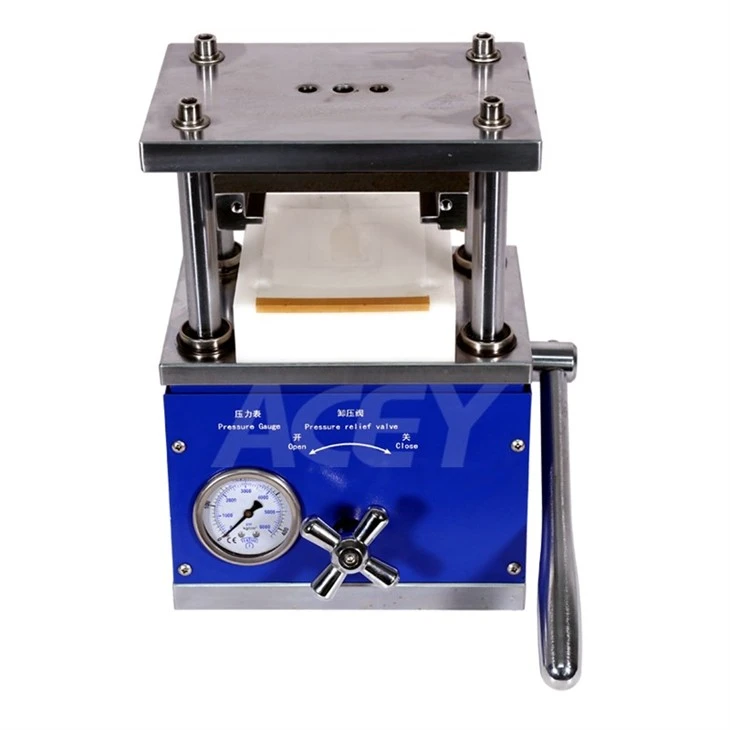

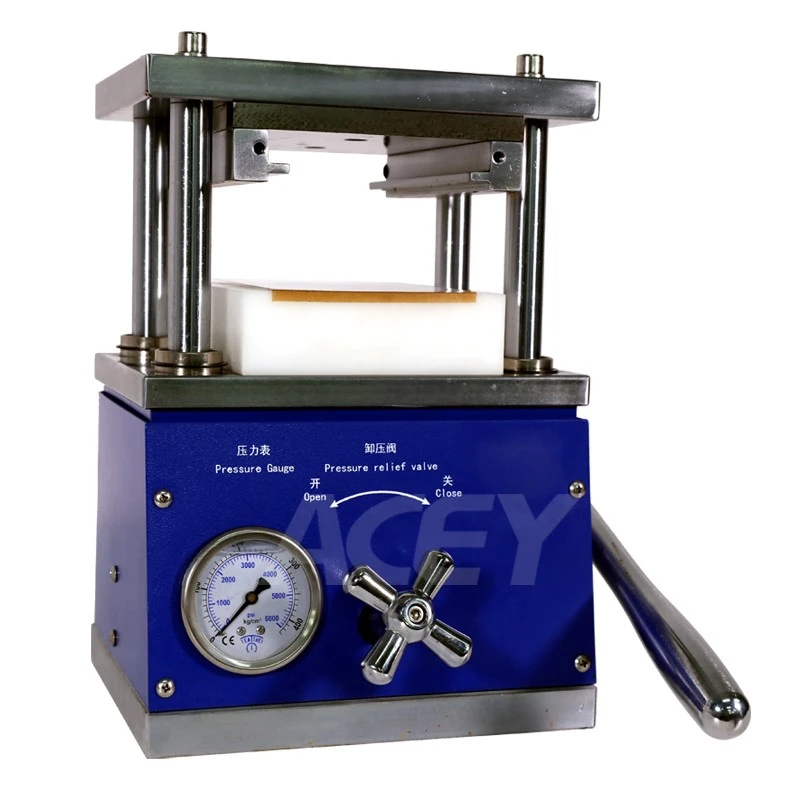

Laboratory Hydraulic Electrode Die Cutting Machine
Item No.: ACEY-HDC-1
Compliance: CE Certified
Warranty: One Year warranty with lifetime support
Order(Moq): 1 set
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Package: Plywood Case
Product Origin: China
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of Laboratory Hydraulic Electrode Die Cutting Machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
Precision Hydraulic Electrode Die Cutting Machine for Lithium Battery Research
Products Description
The Laboratory Die Cutting Machine is a precision electrode preparation device designed for lithium battery research and laboratory-scale production.
The machine uses a hydraulic punching mechanism to cut battery electrode sheets into highly consistent shapes with smooth edges and excellent dimensional accuracy. The compact design and stable hydraulic pressure system make it ideal for universities, research institutes, battery laboratories, and pilot-scale production environments.
Features
- Compact design allows for easy operation and placement inside a glove box.
- An integrated safety overflow oil valve enables pressure adjustment as needed, with an upper pressure limit that can be set to prevent damage from excessive pressure due to misoperation, thereby ensuring machine safety.
- A built-in pressure gauge allows the sealing pressure to be observed and accurately controlled.
- Hydraulic drive delivers a pressure capacity of up to 8T, providing vibration‑free and leak‑free die cutting.
- Changing the knife mold is convenient and quick.
- The tool offers a long service life, with normal use exceeding 30,000 cycles.
- No quality defects such as burrs, powder shedding, or indentations are present.
- A four-guide-pillar structure ensures smooth vertical sliding and high precision.
- Additional features include an attractive appearance, easy maintenance, compact size, convenient operation, and accurate molding results.
Specification
|
Model No. |
ACEY-HDC-1 |
| Punching size | 120x100mm (can be customized according to customer requirements |
| Punching accuracy |
±0.1 mm |
| Pressure | 8T |
| Die cutting stroke | 35mm |
| Structural material |
high-strength chromium steel, the surface will never rust after environmental protection plating and spraying. |
| Dimensions |
223mm X 170mm X 325mm |
| Weight | 25kg |
Products Details
