Pneumatic Spot Welding Machine For Battery
Model No.: ACEY-GS200A
Battery Types: Cylindrical Cell 14500/18650/21700/26650/32650/32700 etc
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of pneumatic spot welding machine for battery in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
Automatic Small 18650 Lithium Battery Spot Welding Machine
Products Description

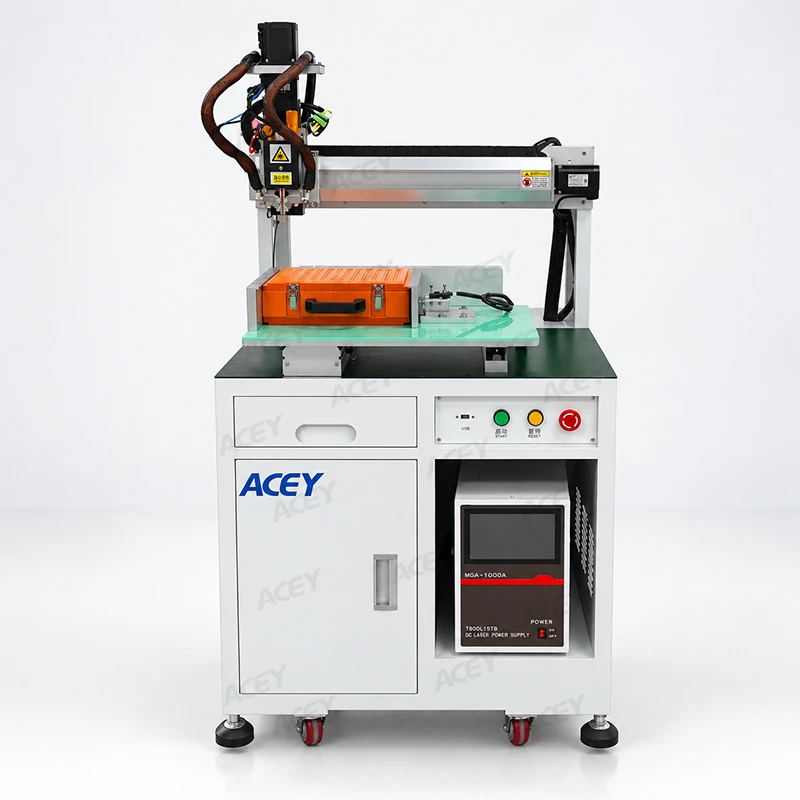

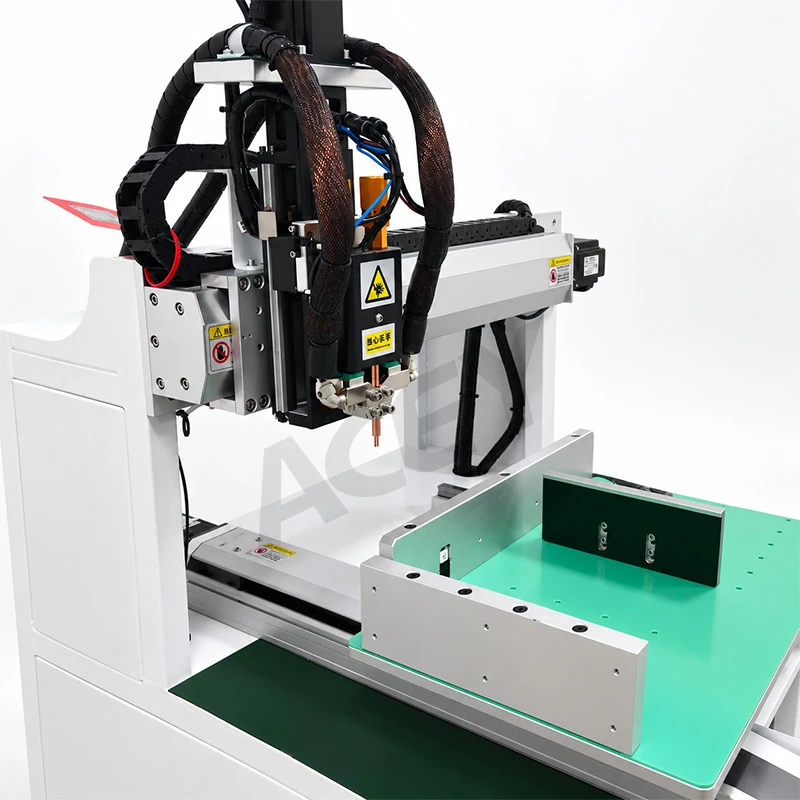

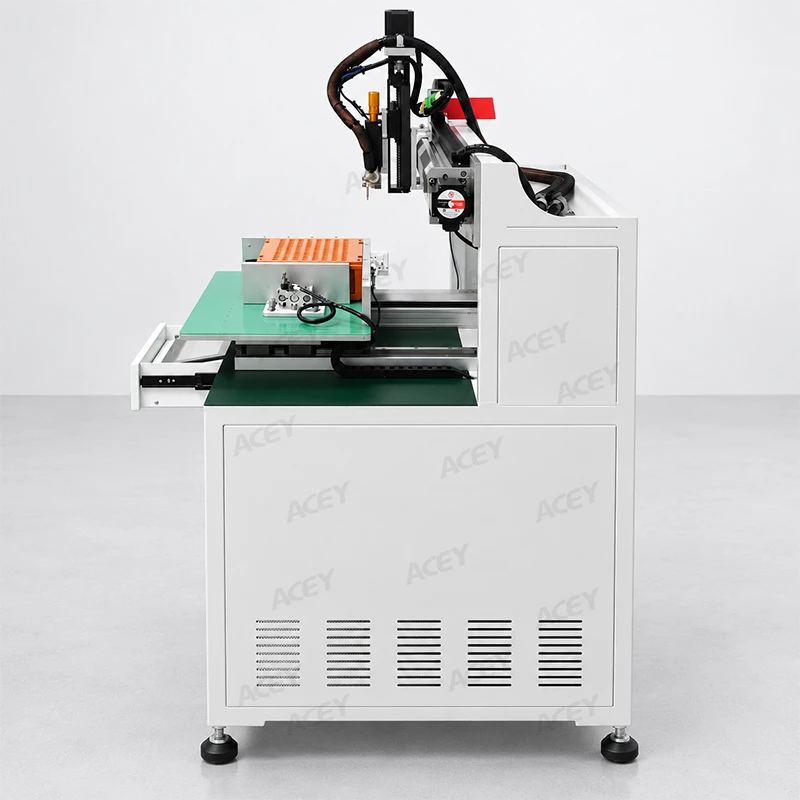

The ACEY-GS200A automatic spot welder is developed for the welding stage of cylindrical lithium battery pack assembly. It performs series and parallel welding of cylindrical cells and is designed to create consistent electrical connections between cells and nickel strips. The machine uses a three-axis motion platform with servo-controlled positioning. The X, Y and Z axes can be programmed according to the battery pack layout, helping maintain accurate welding positions across different cell arrangements.
For production flexibility, the system supports AutoCAD data import, array programming and manual programming. Operators can configure welding paths and point positions according to different battery pack designs without changing the basic machine structure.
Applications
- 18650 Battery Pack Assembly
- 21700 Battery Pack Assembly
- 26650 and 32700 Battery Pack Assembly
- E-Bike Battery Packs
- Electric Scooter Battery Packs
- Power Tool Battery Packs
- Portable Energy Storage Battery Packs
- Consumer Electronics Battery Packs
- Backup Power Battery Modules
- Custom Cylindrical Lithium-Ion Battery Packs
Features
- Automatic Battery Pack Welding – Designed for automatic series and parallel spot welding of cylindrical lithium-ion cells.
- Three-Axis Servo Positioning – X/Y/Z servo-controlled movement provides accurate and repeatable positioning of the welding head.
- Multiple Programming Methods – Supports AutoCAD file import, array programming and manual welding path programming.
- Real-Time Welding Monitoring – Monitors welding current and provides alarms for abnormal welding conditions.
- Defect Detection – Helps identify weak welds, false welds, missed welds and excessive sparking during operation.
- Multiple Welding Modes – Supports single-point, double-point and triple-point welding with programmable welding point spacing.
- Wide Cell Compatibility – Suitable for 14500, 18650, 21700, 26650, 32700 and other cylindrical lithium battery cells.

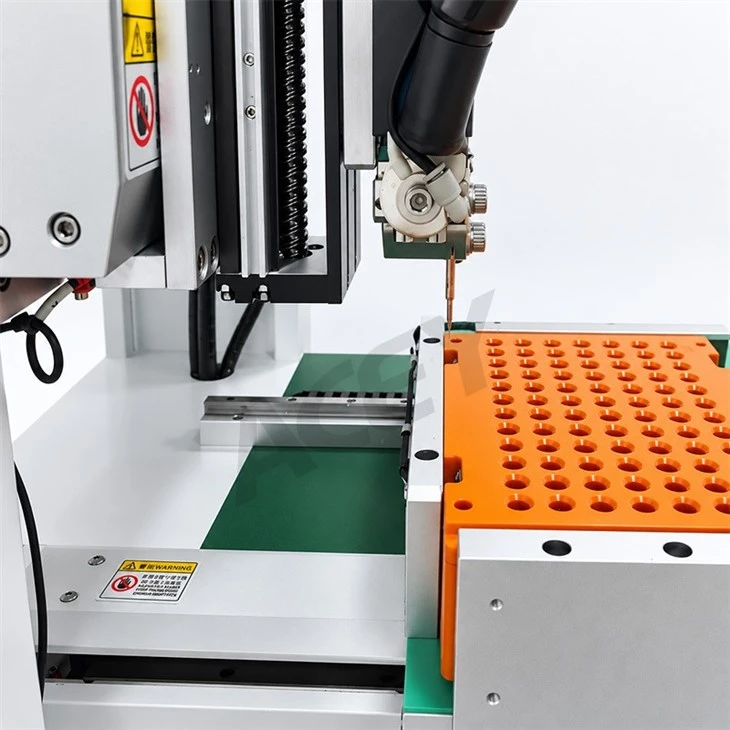

- Customizable Fixtures – Battery fixtures can be designed according to cell size, battery pack dimensions, cell arrangement and welding point layout.
- Flexible Production – Suitable for different cylindrical battery pack designs and small-to-medium batch production.
Specification
|
Item |
Specification |
|
Applicable Battery Cells |
Cylindrical lithium-ion cells, including 14500, 18650, 21700, 26650, 32700, etc. |
|
Compatible Module Dimensions |
X: 0–400 mm; Y: 0–300 mm; Z: 0–200 mm |
|
Motion Control System |
Motion controller |
|
Welding Monitoring |
Weld-point tracking, spark monitoring, false-weld detection, and missed-weld detection with event recording |
|
Welding Current Monitoring |
Real-time welding current monitoring with false-weld and weak-weld alarm functions |
|
Welding Modes |
Single-point, double-point, and triple-point welding |
|
Weld Point Distance |
The distance between welding points in double-point and triple-point welding modes is adjustable |
|
Cooling Method |
Forced-air cooling |
| Power Supply | 220 V, 50/60 Hz |
| Noise Level | ≤80 dB |
Products Display
FAQ
1. How does an automatic battery spot welding machine improve battery pack production?
An automatic spot welding machine uses programmed welding paths and servo-controlled positioning to place welding points consistently. This helps reduce manual positioning errors and improves repeatability when producing multiple battery packs with the same design.
2. What is the difference between single-point, double-point and triple-point welding?
The three welding modes refer to the number of welding points made at each programmed position. Single-point welding creates one weld, while double-point and triple-point modes create multiple welds with programmable spacing. The appropriate mode depends on the battery pack design and connection requirements.
3. Can AutoCAD drawings be used to program the welding path?
Yes. The GS200A supports AutoCAD data import, allowing the welding path to be created from battery pack design drawings. Array and manual programming are also available when adjustments are required during production.
4. How does the welding monitoring system detect abnormal welds?
The machine monitors welding current during operation. If the welding process shows abnormal conditions such as insufficient current, excessive sparking or other programmed welding abnormalities, the system can issue an alarm for operator inspection.
5. What should be considered when selecting a battery pack spot welder?
Important factors include the battery cell type and size, pack dimensions, series-parallel configuration, welding material and thickness, required welding speed, welding current, programming method and fixture design. The required welding parameters should be evaluated according to the actual battery pack structure.
