8000A Lithium Battery Spot Welder Welding Equipment
Item No.:ACEY-8000T
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of 8000a lithium battery spot welder welding equipment in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for 8000a lithium battery spot welder welding equipment.
8000A Lithium Battery Spot Welder Welding Equipment
Products Description

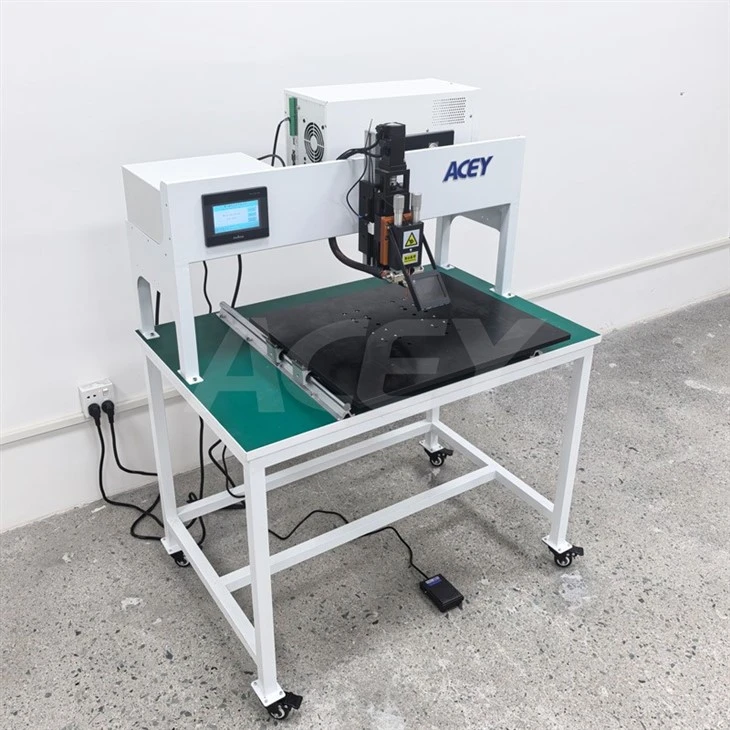

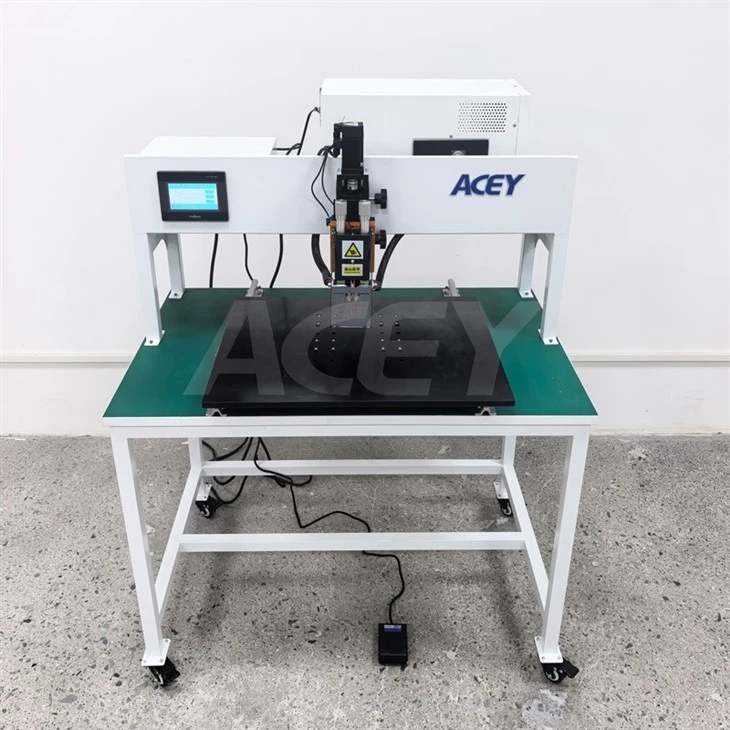

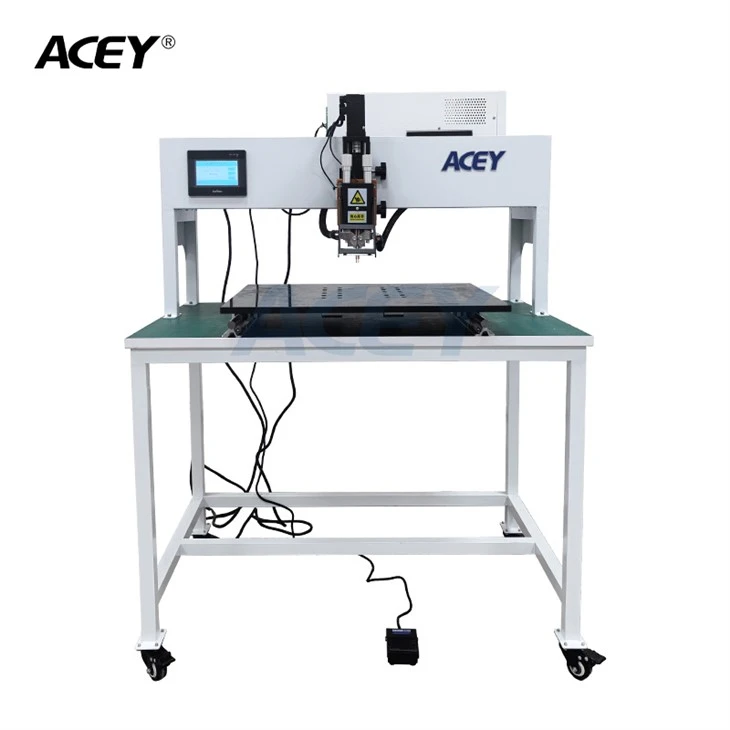

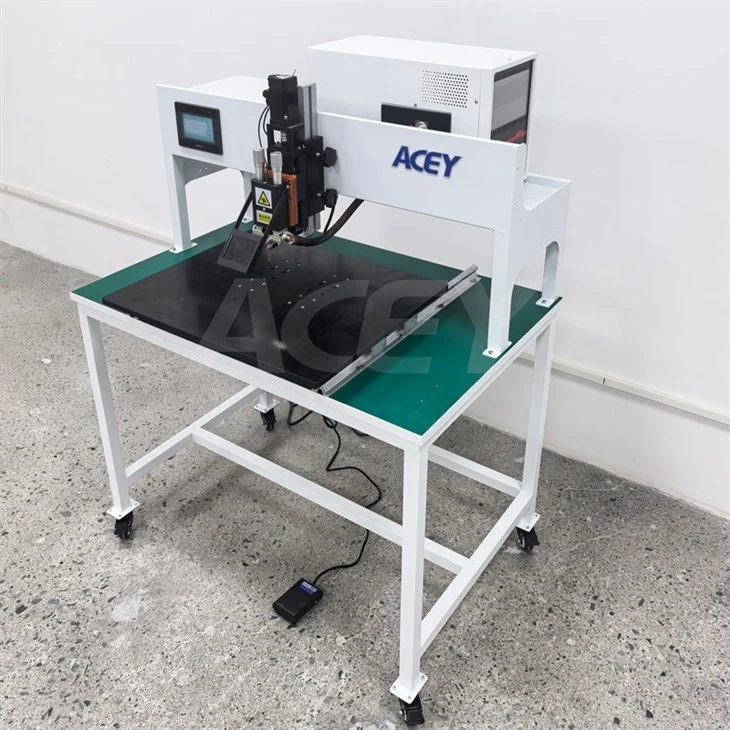

The ACEY-8000T gantry-type battery spot welding machine is designed for welding cylindrical and polymer battery cells to nickel-plated steel strips or pure nickel strips during battery pack assembly. It supports a variety of battery cell formats such as 18650, 21700, 26650, 32650, 32700, 32140, and 33140, configured in series or parallel. The machine is widely used in the assembly of battery packs for applications including power tools, energy storage systems, electric bicycles, solar street lights, and consumer lithium-ion batteries.
Features
- Applicable battery types: Lithium-ion cylindrical cells, pouch cells, etc.
- Equipment welding control method: pedal switch;
- Features weld point tracking, burn-out detection, false weld detection, and incomplete weld detection, recording, and alarm functions;
- X-axis travel: 240mm, Y-axis travel: 390mm, Z-axis travel: 60mm (height adjustable).
- Moving table size: 450mm × 550mm.
- Maximum compatible battery height: 150mm.
- Welding machine uses transistor welding, current 8000A.
- Cooling method: Forced air cooling;
Specification
| Ambient Temperature | -30ºC to 50ºC |
| Humidity | Below 90% |
| Power Supply Voltage | 220V-50Hz/60Hz |
| Load Capacity | ≤200kg/m² |
| Grounding Type | Direct Grounding |
| Site | Free from pollution and strong electromagnetic interference |
| Installation Environment | Flat, vibration-free, and shock-free |
| Equipment Noise | ≤80db |
| Equipment Dimensions (L x W x H) | L900mm * W650mm * H1139mm |
| Equipment Weight | Approx. 60.5Kg |
| Equipment Color | Computer White (can be adjusted upon request) |
| Total Power | ≤1.5KW |
Product Details
