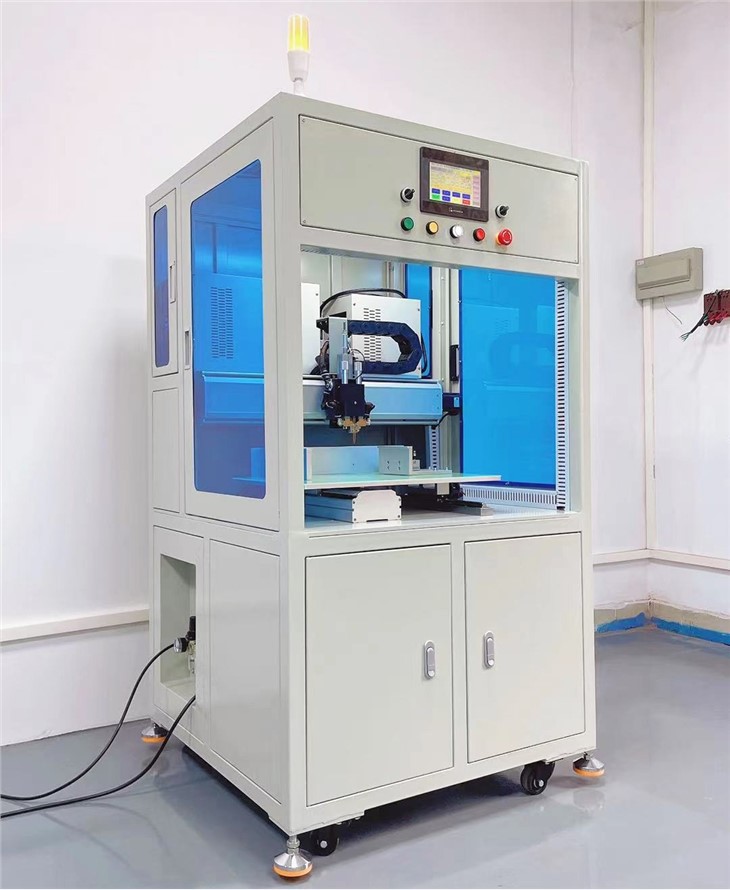

Battery Pack Welding Machine
Model No.: ACEY-S200A (Pneumatic)
Battery Types: 14500/18650/21700/26650/32650/32700/32140/33140
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of battery pack welding machine in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for battery pack welding machine.
Single sided Automatic Welding Machine For Cylindrical Cell Battery Pack
Products Description
Battery pack welding machine is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 battery cell.
Features
* Cold solder joint and sealing off alarm.
* Easy program, support matrix, array and point program, can store 100 group parameters.
* Welding needle abrasion alarm.
* Build-in welding current monitor, can display real time welding current.
* Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
* Can be matched with the production line of lithium battery group.
* Can store dozens process of different battery packs product, switching products without re-setting parameters.
* Can match a variety brand of spot welders.
Specification
|
Model No.: |
ACEY-S200A |
|
Y-axis travel |
500mm (customizable) |
|
X-axis travel |
400mm (customizable) |
|
Max spot welding speed |
0.5s/ spot (1 hour：about 1800 pcs 18650 cell) |
|
Motor drive speed |
600mm/S |
|
Max load electric cores |
X direction: 26; Y direction: 26 |
|
Capable file group storage |
100 groups |
|
Operating system |
embedded system human-machine interface |
|
Transmission mode |
Taiwan precision screw with guide rail |
|
Driving mode |
stepper servo motor |
|
Repeat positioning accuracy |
±0.02mm |
|
Dimensions |
L: 900mm, W: 900mm, H: 1650mm |
|
Power |
2000W |
|
Machine weight |
150KG |
|
Max bearing weight of Y-axis |
30KG |
|
Input power supply |
single-phase AC 220V/50Hz |
|
Air Source |
0.4-0.6 Mpa |
