Li-ion Battery Pack Assembly Machine
Scale: Automotive battery modules, power batteries, energy storage batteries,power tools and other application battery pack.
Battery type: Cylindrical cell.
Warranty:1 year Package:plywood case Free after-sales service
Li-ion Battery Pack Assembly Machine For Cylinder Battery
Products Description
ACEY provides complete lithium ion battery pack assembly line solutions for the manufacturing of cylindrical battery packs. Designed for cylindrical lithium-ion cells such as 18650, 21700, 26650, 32700 and other cell formats, the battery pack assembly line can be configured according to the required battery pack structure, production capacity, automation level, and testing requirements.

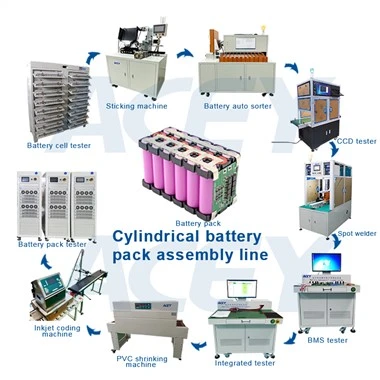

The complete lithium battery pack production process typically starts with individual cell testing and capacity grading. Qualified cells are automatically sorted according to voltage and internal resistance before entering the insulation and polarity inspection processes. After cell arrangement, nickel strips are welded to connect the cells and form the battery pack. The assembled pack then undergoes BMS testing, comprehensive electrical testing, heat-shrink packaging, coding, and final quality inspection.
Applications of Lithium Battery Pack Assembly Line
The battery pack assembly line is suitable for manufacturing cylindrical lithium-ion battery packs used in a wide range of applications, including:
- Power tools
- Electric bicycles and scooters
- Portable power stations
- Energy storage systems
- Electric vehicles
- Smart home devices
- Consumer electronics
- Mobile power supplies
- Lighting equipment
- Other customized lithium battery pack applications
Products
1. 512 channels battery cycler tester
Used for single cell charging and discharging, to test capacity.
2. Battery paper pasting machine
Used for cylinder cell anode insulation paper pasting
.
3. battery sorting machine
Single cell voltage and internal resistance tester, can be customized to 5channels, 6channels, 10 channels, and 11 channels.
4. CCD testing machine
Automatic testing machine,check the number of samples and the position of the positive and negative, quickly analyze the result (NG or OK), and confirm the position of NG, to confirm the positive and negative electrodes before the battery pack enters the spot welding. Prevent defects caused by incorrect position of the negative electrode.
5. Double sided battery spot welding machine
We have gantry spot welder,automatic single&double sided spot welder with current 5000A 8000A 10000A Optional, AC, DC inverter and transistor power supply for 18650, 21700, 26650, 32650, 32700 battery pack welding and assembly.
6. Battery management system testing machine
Bms tester is used in the safety test of lithium battery protection board, to detect whether the functional indicators of the protection board are within the reasonable parameters.
7. Battery comprehensive tester
The battery comprehensive test device is a device for fast and accurate testing of finished battery performance. The main test items include: open circuit voltage, AC internal resistance, discharge test, discharge over current test, short circuit protection test, charge test and charge protection test.
8. PVC shrink film machine
The heat shrink machine is designed for cylindrical and combined battery heat shrink packaging process, using a combination of far-infrared and circulating wind heating technology to ensure uniform heat shrinkage of the battery plastic cover, beautiful deformation and high concentration.
9. Expiry date and batch number printing machine
The coding machine is sprayed on the outer surface of the battery with the information of the battery, including the manufacturer, model. Production date, voltage, capacity. Energy, production batch number, etc.
10. Battery pack test machine
Suitable for detecting the performance and internal resistance, Voltage, Charging current, Discharge current, Overcharge current, Over discharge current, Current protection and other functional testing.
ACEY provides customized battery pack assembly solutions based on the cell type, battery pack configuration, output requirements, welding method, testing specifications, and desired automation level. From individual battery pack machines to complete production lines, we can help customers build a suitable lithium-ion battery pack manufacturing solution.
