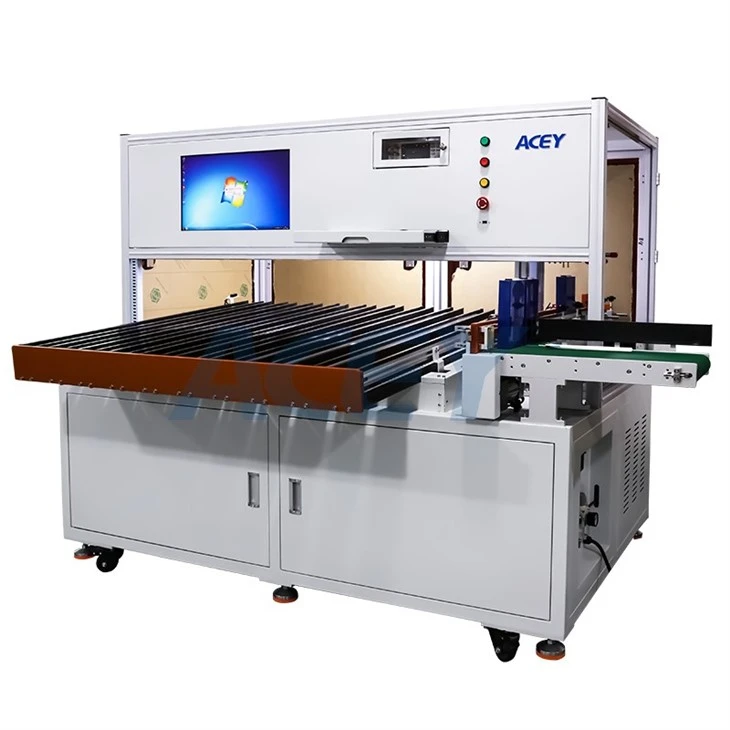

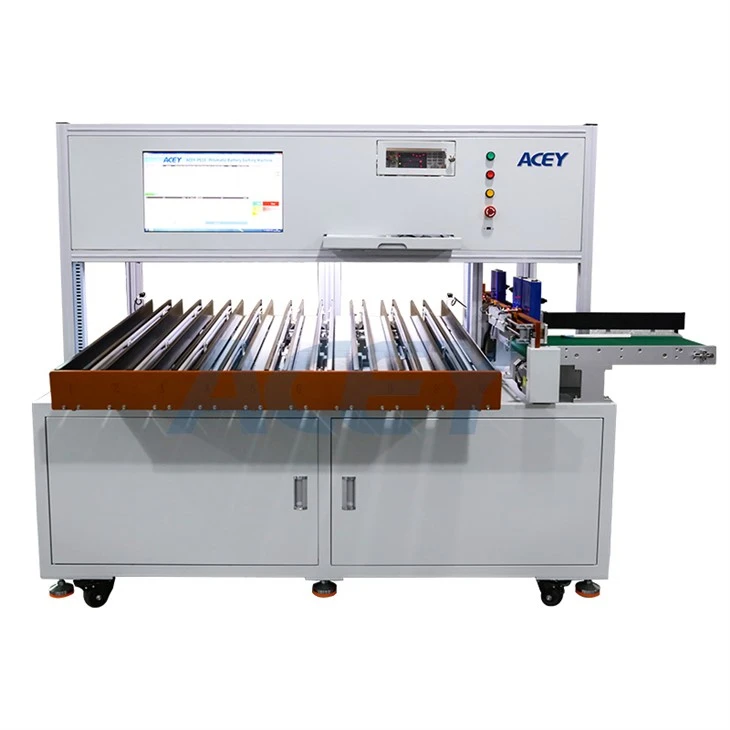

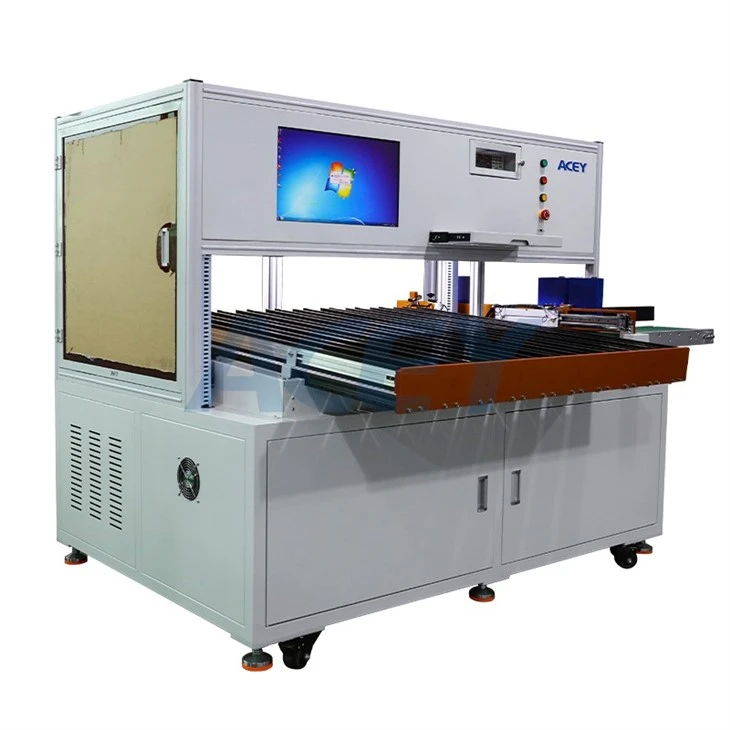

Automatic 10 Channels Prismatic Cell Sorting Machine
Model No.: ACEY-PS10
Battery Types: Prismatic battery
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of automatic 10 channels prismatic cell sorting machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
10 Channels Prismatic Cell Sorting Machine for Battery Pack Assembly
Product Description
The ACEY-PS10 Automatic Prismatic Cell Sorting Machine is designed for accurate sorting and matching of lithium-ion prismatic battery cells before battery module and battery pack assembly. The system measures cell voltage and internal resistance, automatically classifies cells into different groups, and separates defective cells to improve consistency and production quality.
Equipped with a high-precision Hioki BT3562 internal resistance tester, an integrated barcode scanner, and an industrial PC control system, the machine ensures reliable testing, complete data traceability, and efficient cell management throughout the production process. Suitable for EV batteries, energy storage batteries, consumer electronics, and battery pack production lines, this machine offers stable performance and simple model changeover for different prismatic cell sizes.
Features
High-Precision Cell Sorting
Automatically sorts prismatic lithium battery cells according to voltage and internal resistance, ensuring excellent cell consistency before module assembly.
Integrated Hioki Internal Resistance Tester
Built-in Japanese Hioki BT3562 tester provides highly accurate voltage and resistance measurement with fast response time for reliable grading.
Barcode Traceability
Integrated barcode scanning records every cell's testing data, making production tracking and quality management easier.
Flexible for Various Cell Sizes
Supports multiple prismatic cell specifications with convenient width adjustment and quick product changeover.
Intelligent Data Management
Industrial PC stores voltage, resistance, grouping information, and historical records for comprehensive quality control.
Stable and Efficient Production
Sorting efficiency reaches 10–12 cells per minute with equipment utilization above 95%, making it suitable for continuous battery production.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ACEY-PS10 |
| Sorting Channels | 10 (9 OK + 1 NG) |
| Cell Type | Prismatic Lithium Battery |
| Testing Parameters | Voltage & Internal Resistance |
| Sorting Speed | 10–12 PPM |
| Equipment Utilization | ≥95% |
| Applicable Cell Length | 100–300 mm |
| Applicable Cell Width | 20–85 mm |
| Applicable Cell Height | 80–300 mm |
| Control System | Industrial PC |
| Power Supply | AC220V 50Hz |
| Power Consumption | 2 KW |
| Air Pressure | ≥0.6 MPa |
| Machine Size | 1920 × 1600 × 1600 mm |
| Weight | 350 KG |
Applications
The 10-channel prismatic battery sorting machine is widely used for:
- Lithium battery manufacturing
- EV battery production
- Energy storage battery assembly
- Battery module production
- Battery pack assembly lines
- Battery repair factories
- Battery recycling and second-life battery matching
Products Details
FAQ
What is a battery cell sorting machine?
A battery cell sorting machine automatically measures the voltage and internal resistance of lithium battery cells, then classifies them into matching groups to improve battery pack consistency and safety.
Why is battery cell sorting necessary?
Even cells produced in the same batch have slight differences in voltage and internal resistance. Proper sorting helps increase battery life, improve pack performance, and reduce failure rates.
What battery types can this machine handle?
This model is designed for prismatic lithium-ion battery cells and supports a wide range of cell sizes with quick adjustment.
Can the sorting data be saved?
Yes. The industrial PC stores voltage, resistance, barcode, and grouping information for production traceability and quality analysis.
