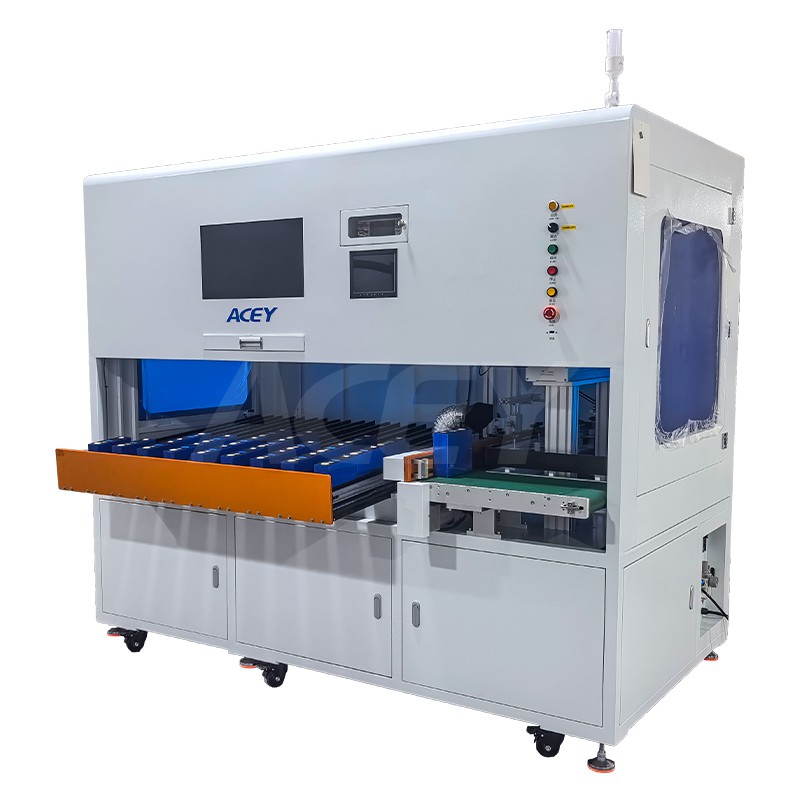

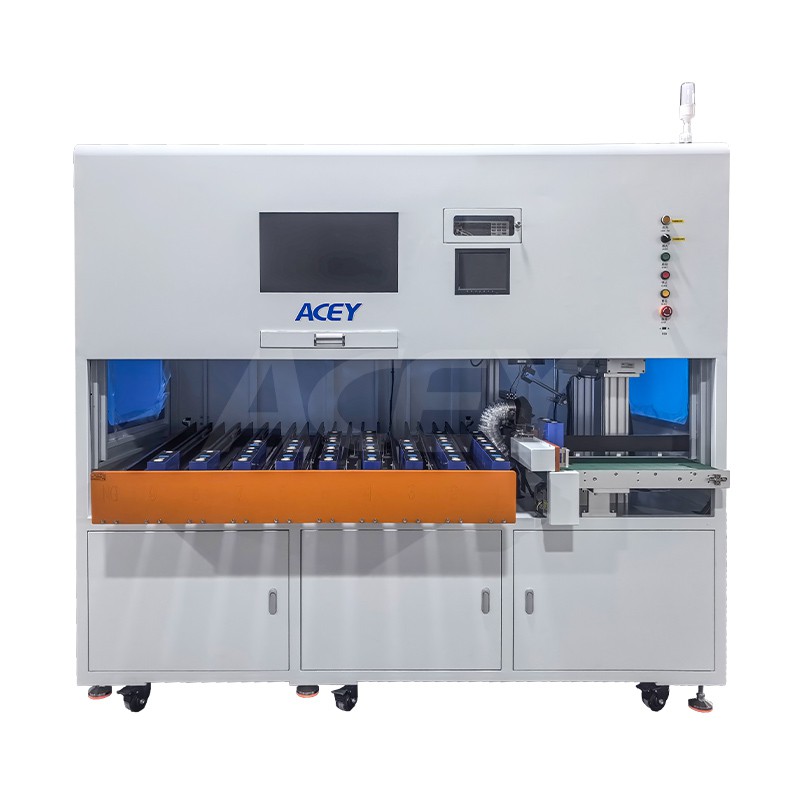

Prismatic Battery Cell Sorting Machine With Laser Cleaning
Model No.: ACEY-PSLC10
Battery Types: Prismatic battery
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of prismatic battery cell sorting machine with laser cleaning in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
10 Channels Prismatic Battery Automatic Sorting Machine with Laser Cleaning
Product Description
ACEY-PSLC10 The automatic prismatic battery sorting machine is suitable for sorting and assembling testing of prismatic batteries, while also performing laser cleaning before laser welding. The machine uses belt-driven feeding, making battery changeover simple. It can analyze and save test data of the prismatic batteries, accurately rejecting defective batteries, and collecting qualified batteries into receiving slots through sorting and matching. It is easy for operators to manage.
Application
Voltage and internal resistance tests were performed on the prismatic cells, and they were grouped. Simultaneously, the battery terminals were laser-cleaned.
Parameter
| Parameter | Specification |
| Compatible Dimensions (L × W × H) | 90–300 mm × 12–85 mm × 90–300 mm |
| Sorting Channels | 9 OK channels + 1 NG channel |
| Control System | PLC control system + linear module |
| Laser Cleaning Function | 200W MAX pulsed laser source |
| Loading & Testing | Integrated manual loading and automatic testing (optional internal resistance tester: Hope & Hioki) |
| Code Scanning Function | Integrated QR code / barcode scanning (optional: Hikvision & Keyence) |
| Sorting Process | Fully automated - reduces manual intervention |
| MES System Interface | Optional; real-time recording of battery QR code info and test data, generates SPC analysis reports |
| Max Sorting Speed | Approx. 10–12 PPM (more than 3× manual sorting efficiency) |
Equipment Environmental Requirements
- Ambient Temperature: 5°C-35°C
- Humidity: 20%-90%
- Air Pressure: 0.5-0.6 MPa
- Power Supply Voltage: 220V, 50Hz/60Hz
- Surface Load Ratio: ≤200kg/m²
- Grounding Type: Direct Grounding
- Site: Free from pollution and strong electromagnetic interference
- Installation Environment: Flat, free from vibration and shock
- Equipment Noise ≤80dB
