Prismatic Cell Sorting Machine

Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of prismatic cell sorting machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

10 Channels Input Front Output Front Prismatic Cell Sorting Machine For Lithium Battery

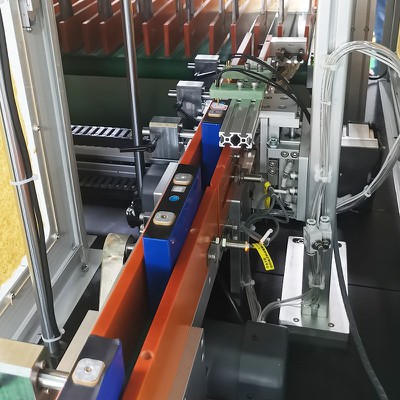

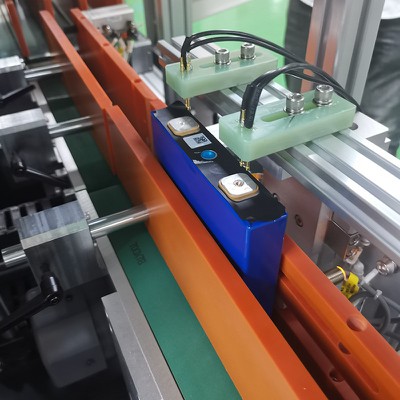

Prismatic cell sorting machine is used for  prismatic battery voltage, internal resistance detection, discrimination gear, upload data to the database, and other main functions.This sorting machine adopts stepping belt transmission structure, professional voltage internal resistance tester discrimination, single channel test, horizontal moving module mobile sorting, horizontal moving module mobile safety interlock induction, so as to ensure the normal operation of the manipulator safely and reliably.

1. Configuration requirements

Power supply: 220V ± 10%~50Hz; Power: 6.0KW (provided by the user)

Compressed air source: ≥ 0.6Mpa 30L/s (utilization rate 50%)

Environmental temperature: 20-50 ℃

2. Equipment production capacity: 500~600 units/hour

1) The main and secondary screens of the robotic arm are interlocked to ensure the absolute safety of maintenance operators entering the ground rail area.
2) In order to achieve data integration automation of the equipment, all robotic arms on this equipment are controlled by imported servo and ball screw, greatly reducing debugging and maintenance costs and time.
3) Reliable calibration mode, with detection accuracy within ± 0.01mm.
4) The upper and lower structure design of the robotic arm ensures efficient production capacity.
5). The test is set up with multiple channels, and each channel does not affect each other. It allows for efficient testing switching, and single channel testing can be enabled separately.
6). All pneumatic components, electrical components, and electronic control box parts should be isolated to ensure that their performance is not affected by water vapor.
