Prismatic Cell Sorter
Model No.: ACEY-PCS10
Battery Types:Prismatic cell
Warranty:1 year
MOQ:1 set
Package:Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of prismatic cell sorter in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

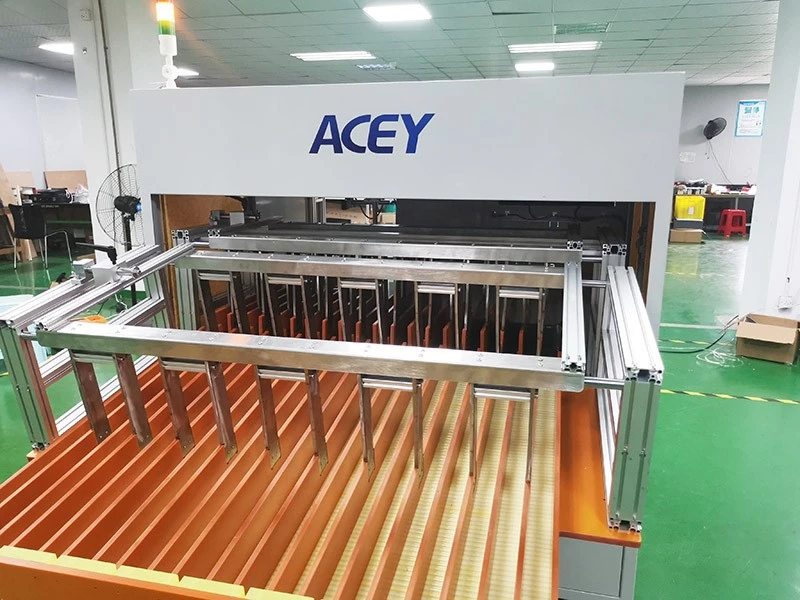

10 channels automatic prismatic cell sorter for lithium ion battery
Products Description
Prismatic cell sorter is mainly used for a variety of square case battery voltage, internal resistance detection, for discriminating gear, uploading data to the database, and other major functions; manual loading and unloading.
Working principle:
Prismatic cell sorter adopts stepping belt transmission structure, professional voltage internal resistance tester discrimination, single channel test, horizontal moving module mobile sorting, horizontal moving module mobile safety interlock induction, so as to ensure the normal operation of the manipulator safely and reliably, the whole machine is used in the ordinary room.
Features
Features:
1). The primary and secondary screens of the manipulator are interlocked to ensure the absolute safety of maintenance operators entering the area of the earth orbit.
2).In order to realize data integration automation, all manipulator on the equipment are controlled by imported servo and ball screw, which greatly reduces the cost and time of debugging and maintenance.
3).Reliable calibration mode, detection accuracy up to ±0.01mm.
4). The lower structure of the manipulator is designed to ensure high productivity.
5). The test is set with multiple channels, each channel does not affect each other, and the practical test switching can be carried out efficiently. The single channel test can be opened separately.
6). All pneumatic components and electrical parts, electrical control box should be isolated to ensure that their performance is not affected by water vapor.
7).Professional internal resistance tester is selected to ensure the reliability of product discrimination results.
8).The pressure of each cylinder can be adjusted by pressure regulating valve to achieve different process parameters.
9).This machine has the function of reserving various types of product parameters, greatly reducing the unknown work of the operator when changing the type.
10).This machine adopts programmable motion controller, industrial computer, 19 inch HD LCD touch screen control to realize man-machine dialogue, easy to operate.
11).The upper and lower frame adopts baking paint square, solid and beautiful.
12).With automatic, manual operation function, automatic and automatic operation with memory interlock function.
13). The machine's perfect product data system transmits data with the server at any time.
Working Flow
Configuration Requirements
Power source: 220V±10% ~ 50Hz; Power: 6.0kW (user provided)
Compressed air source: ≥ 0.6mpa 30L/s (utilization rate 50%)
Ambient temperature: 20-50℃
Equipment capacity: 500 / hour ~600 / hour
