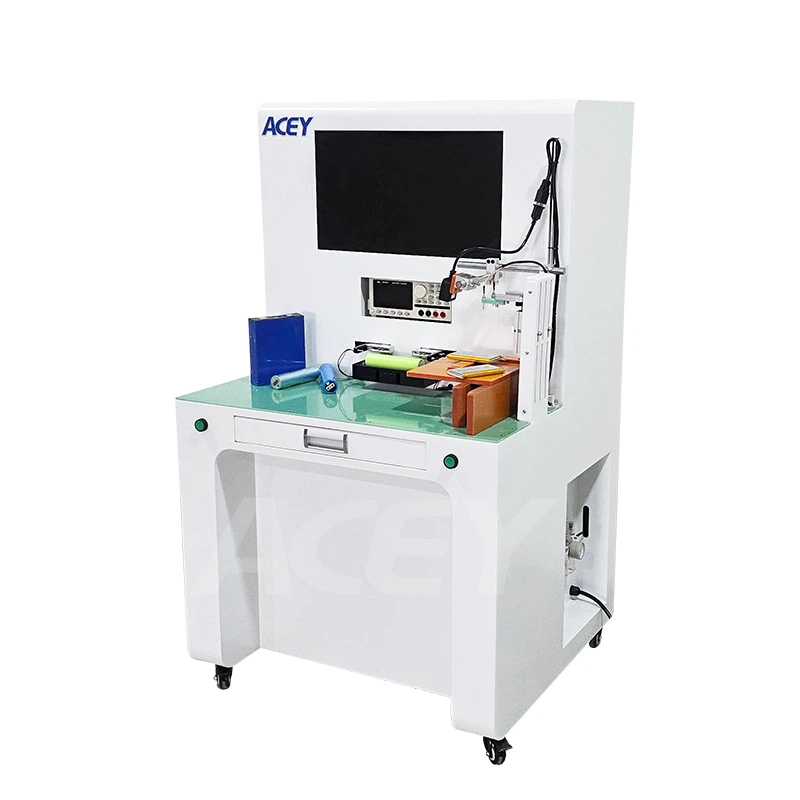

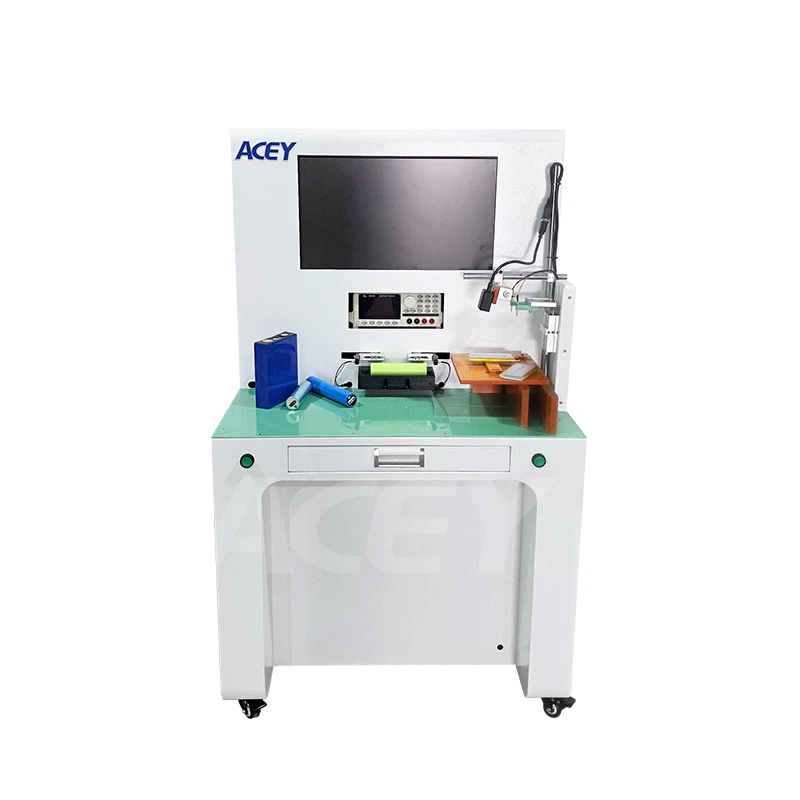

3 In 1 Manual Battery Cell Sorting Machine
Model No.: ACEY-MS03
Battery Types: Prismatic/Polymer/Cylindrical Battery
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 3 in 1 manual battery cell sorting machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
3 In 1 Manual Prismatic Polymer Cylindrical Battery Cell Sorting Machine
Product Description

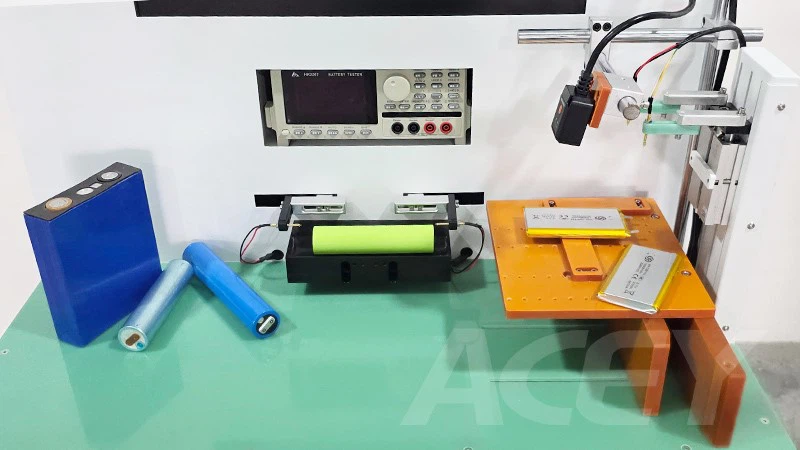

ACEY-MS03 Manually place the pouch cell, prismatic or cylindrical lithium battery into the test position. When the manual presses the squeeze start button, the prismatic or cylindrical test cylinder presses down/clamps, and the internal resistance and internal pressure are collected and recorded by the internal resistance tester. The display shows the gear position. After the test is completed, the prismatic or cylindrical test cylinder rises/releases, and the manual removes the prismatic or cylindrical lithium battery.
Product Features
- 3-in-1 design integrating voltage testing, internal resistance testing, and battery sorting

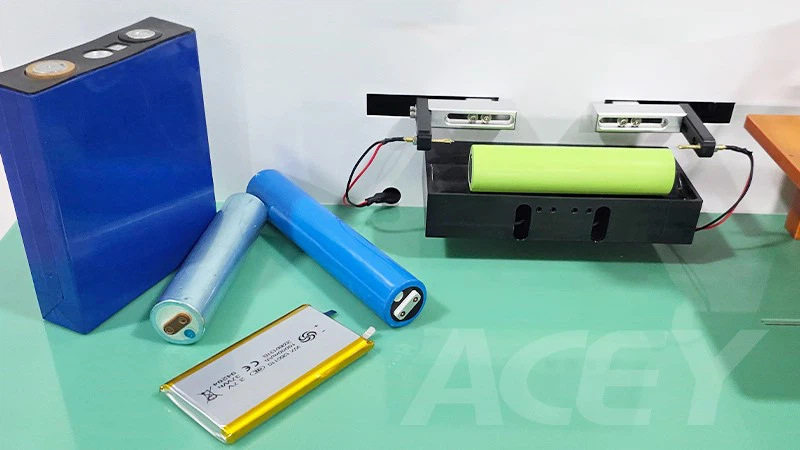

- Compatible with cylindrical and prismatic lithium battery cells
- High-precision voltage and internal resistance detection system
- Compact structure with easy operation and stable performance
- Suitable for battery pack assembly, laboratory testing, and small-scale production lines
Parameter
| Parameter | Specification |
| Applicable Battery Types | 280Ah prismatic lithium batteries, cylindrical lithium batteries, polymer cells |
| Compatible Module Dimensions | Prismatic: Length 80-300mm, Thickness 10-100mm, Height 80-300mm |
| Cylindrical: Diameter 21-50mm, Length 65-200mm | |
| Polymer: Width 30-300mm, Length 50-500mm | |
| Equipment Control Method | PLC control |
| Safety Feature | Dual-hand start for enhanced safety |
| Channel Settings | 10 channel settings available for better cost-effectiveness |
| Dimensions (L×W×H) | 800mm × 750mm × 1302mm |
| Weight | 100 KG |
Equipment Environmental Requirements
| Parameter | Specification |
| Ambient Temperature | 5°C - 35°C |
| Humidity | 20% - 90% |
| Air Pressure | 0.5 - 0.6 MPa |
| Power Supply Voltage | 220V, 50Hz / 60Hz |
| Surface Load Ratio | ≤200 kg/m² |
| Grounding Type | Direct Grounding |
| Site | Free from pollution and strong electromagnetic interference |
| Installation Environment | Flat, free from vibration and shock |
| Equipment Noise | ≤80 dB |
Products Details
