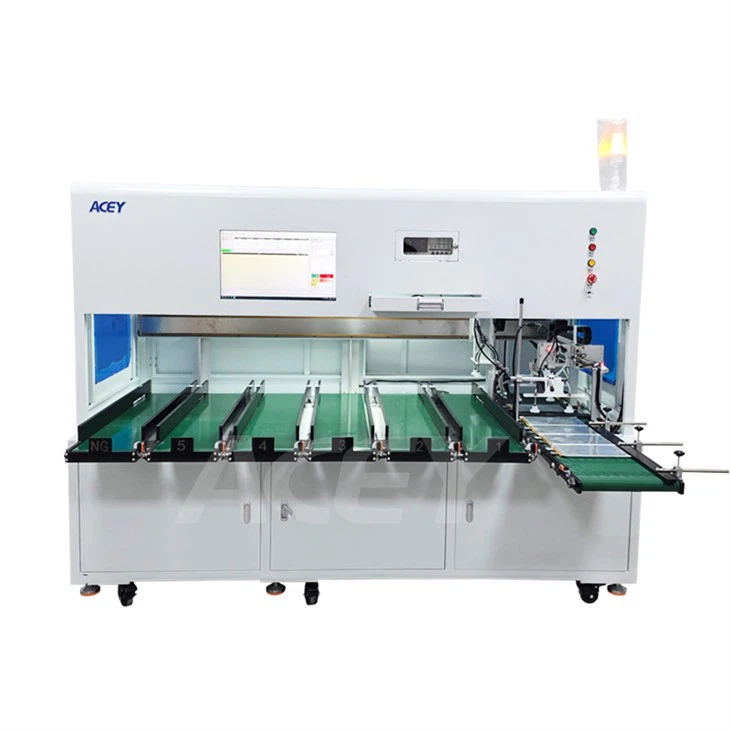

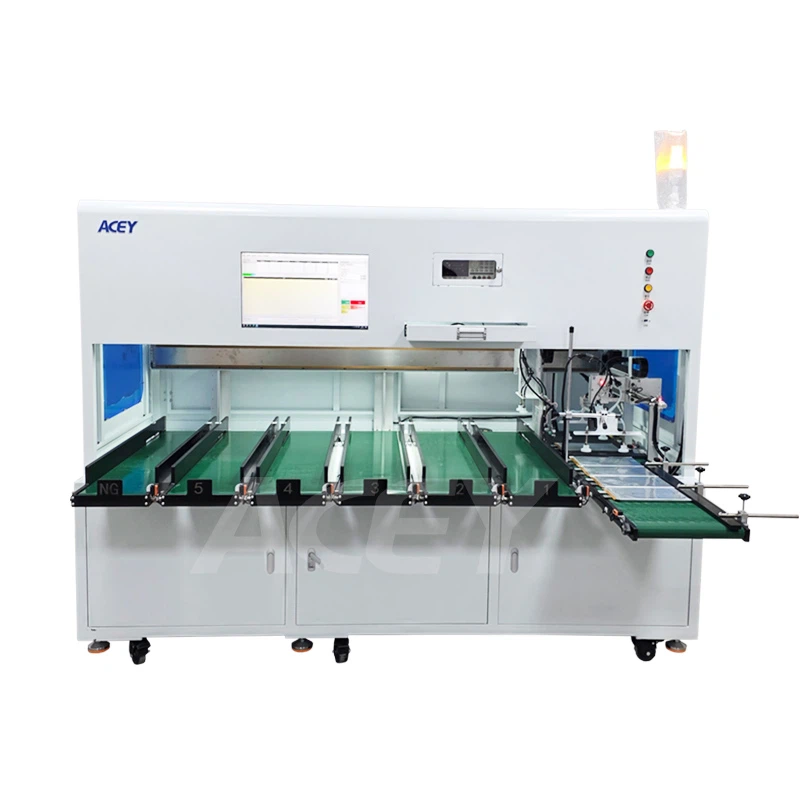

Polymer Battery Cell OCV IR Testing And Sorting Machine
Model No.: ACEY-PCSM6
Battery Types: Polymer Cell
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of polymer battery cell ocv ir testing and sorting machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
Polymer Battery Cell OCV IR Testing and Sorting Machine
Products Description

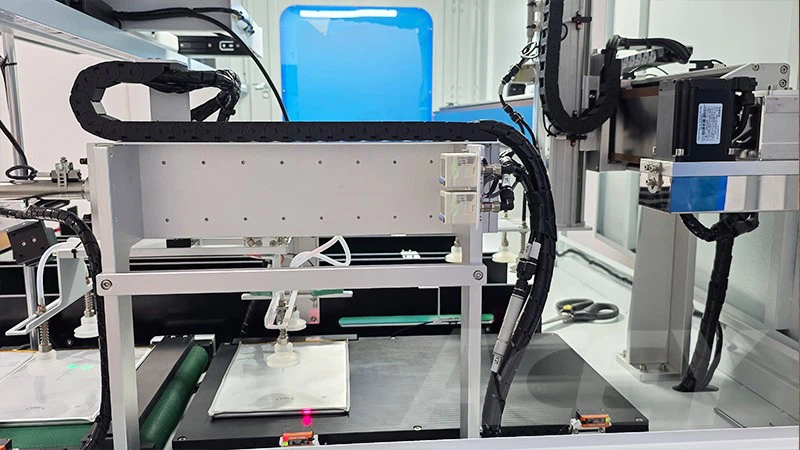

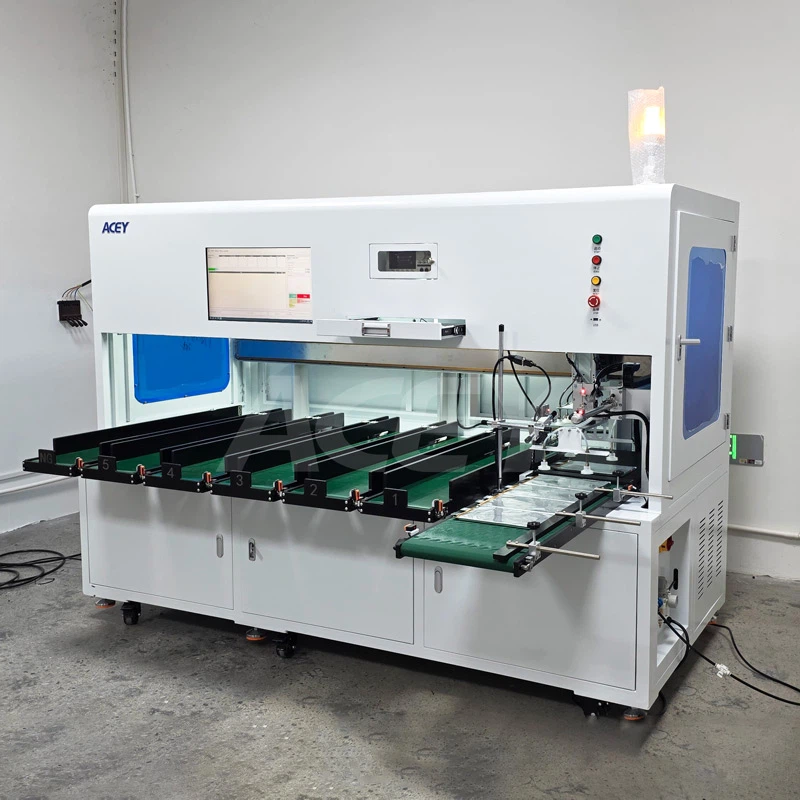

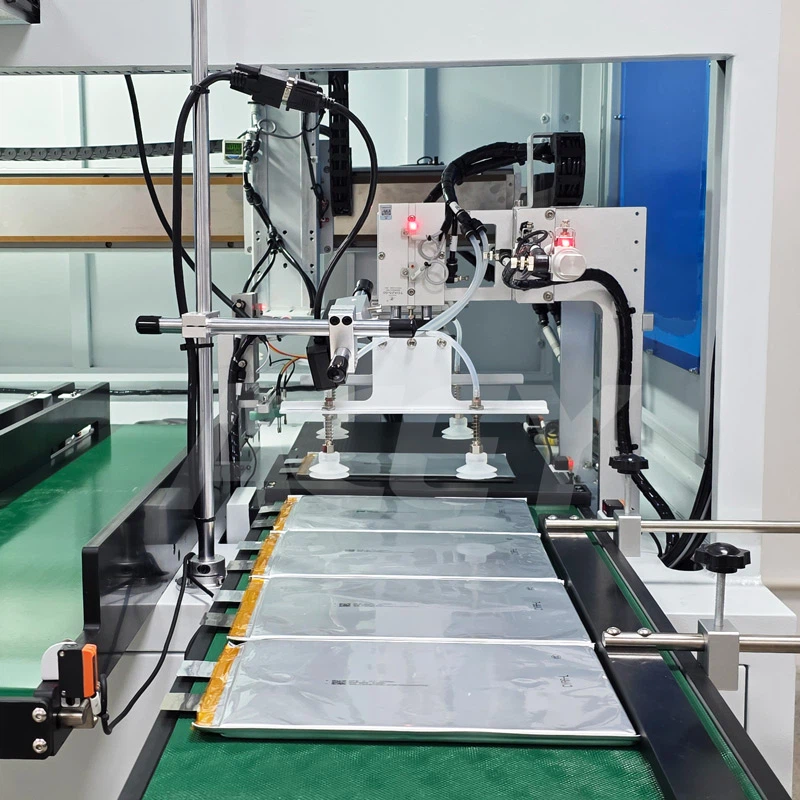

ACEY-PCSM6 automatic battery cell sorting machine is specially developed for voltage and internal resistance testing of polymer lithium battery cells. The equipment integrates automatic feeding, OCV testing, ACIR testing, barcode scanning, data recording, and intelligent sorting functions into one efficient system.
This machine is suitable for post-production battery cell grading and matching processes, helping manufacturers improve battery consistency, reduce manual errors, and enhance overall pack assembly quality.
Features
- Automatic voltage and internal resistance testing
- Suitable for polymer lithium pouch cells
- High-speed automatic sorting system
- Barcode scanning and MES data upload supported
- Real-time test data storage and export
- PLC programmable control system
- Stable and reliable continuous operation
- Reduces labor cost and sorting errors
Specification
| Product Model | ACEY-PCSM6 |
| Applicable Battery Type | Lithium polymer pouch cells |
| Compatible Cell Dimensions | Length: 50–200 mm Width: 20–100 mm Thickness/Height: 4–20 mm (Customizable) |
| Control System | PLC Control |
| Throughput / Speed | ≤ 1,000 PCS / Hour |
| Total Power Supply | ≤ 1.5 KW |
| Equipment Dimensions | L 1800 mm × W 1570 mm × H 1750 mm (Subject to final technical drawing) |
| Net Weight | Approx. 493 Kg |
| Equipment Color | Computer White (Customizable upon request) |
Environmental Requirements:
| Requirement Item | Standard Conditions |
| Power Voltage | 220V, 50Hz / 60Hz |
| Compressed Air Supply | 0.5 – 0.6 MPa |
| Ambient Temperature | 5°C – 35°C |
| Relative Humidity | 20% – 90% RH |
| Floor Load-Bearing Capacity | ≤ 200 kg / m² |
| Grounding Type | Direct grounding |
| Equipment Noise Level | ≤ 80 dB |
| Site Requirements | Flat, level ground free from vibration, mechanical shock, pollution, and strong electromagnetic interference. |
Product Details
