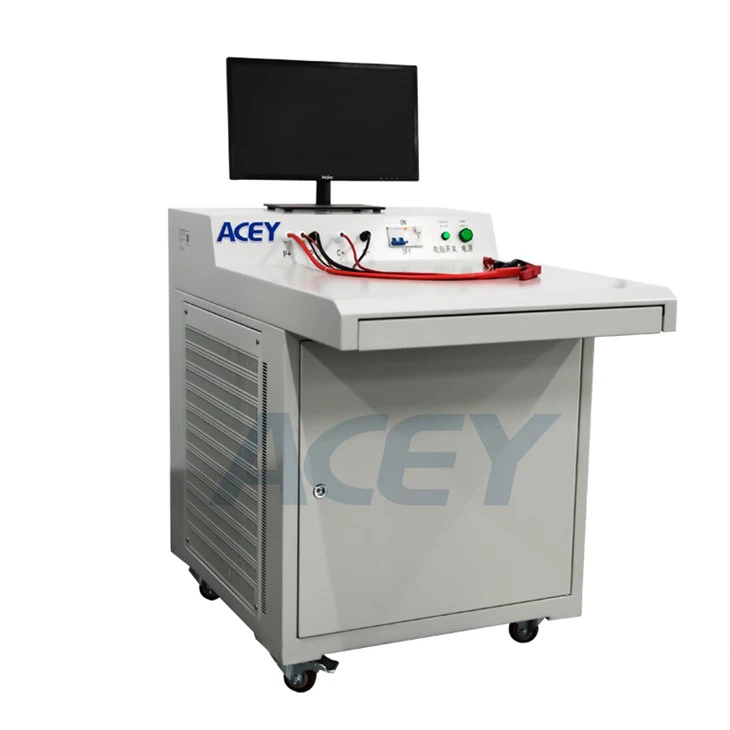

100V 30A 120A Battery Comprehensive Tester
Model No.: ACEY-BIT100-30A120A
Test open circuit voltage:120V
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 100v 30a 120a battery comprehensive tester in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
100V 30A Charge 120A Discharge Battery integrated tester
Products Description
ACEY-BIT100-30A120A Integrated tester is used to test battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharging current, continuous discharging voltage, charging overcurrent protection current, discharging overcurrent protection current, short circuit protection time, overcurrent delay time, post-test voltage.
Testing Items
*Voltage: No-load voltage and Short circuit protection voltage after the test is completed, Range:0-100V.
*Internal Resistance: ACIR1000hz, Range:0-4000mΩ
*Charging overcurrent protection current , Range:0-30A.
*Continuous charging current, Range:0-30A.
*Continuous charging voltage monitoring, Range:0-100V.
*Discharge overcurrent protection current and delay time, current range:0-120A.
*Overcurrent test mode: (1) Step test (2) quick test.
*Continuous discharge current, Range:0-120A
*Continuous discharge voltage judgment, Range: 0-100V
*Short circuit protection time：≤1000μS, Max short circuit current about 5000A
*Single cell voltage monitoring
*Appreciation of charge and discharge voltage: During the working test, if the power supply is cut off and the MOS tube of the protection board is turned off, no inrush current will be generated, and the protection board of the lithium battery pack will not be damaged.
*Support MES system
*Database: The software comes with a database, which can generate excel tables.
*Step-by-step mode: the test sequence can be adjusted automatically.
*Support chassis expansion.
Technical Parameters
*Voltage range: 0-100V Resolution:1mV Accuracy: 0.1%RD+0.1FS
*Internal resistance: 0-2000mΩ Resolution:0.001mΩ Accuracy: 0.1%RD+0.1FS
*Charge current: 0-30A Resolution: 0.001A Accuracy: 0.1%RD+0.1FS
*Discharge current 0-120A at the highest voltage, continued discharge current 120A,
Resolution: 0.001A Accuracy: 0.1%RD+0.1FS
*Overcurrent delay time: 0-30S Resolution: 1mS Accuracy: 0.1%RD+0.1FS
*Short circuit time: 0-2000μS Resolution: 1μS Accuracy: 0.1%RD+0.1FS
*NTC range: 0-100K 0.001K
*R1 range: 0-100K 0.001K
*Power supply: AC 200V-240V
*Maximum working power for charging:3000W (When charging with maximum current)
*Surge voltage:＜15V
Equipment requirements:
*Equipment operating environment: ventilated and dry plant.
*Working environment: temperature -10℃～40℃/humidity: 10%～90%
*Equipment operation mode: upper computer control, manual test.
*The equipment comes with NG alarm device (buzzer)
Product Details
Certifications
Cooperative Partner
Company Information
ACEY New Energy Technology, founded in 2009, is a one-stop supplier specialized in manufacturing advanced machineries and offering the best tailored solutions for lithium-ion battery pack assembly line. With more than ten years experience, our team integrate R&D, manufacture, and technical services into one. We have been committed to providing professional services for every of our client.
Package
Strong plywood case or ultra thick&hard paper carton package, inner thick foam cushion to protect the machine. We also support customized service if you need.
Transportation
By sea, by air or by express, we will find the most suitable transportation for you according to your need.
