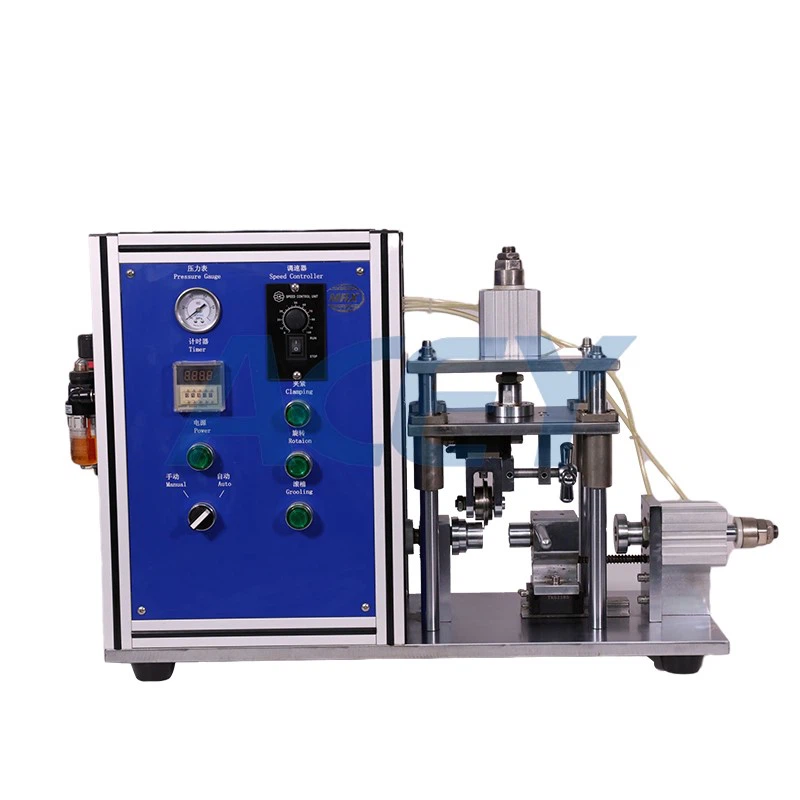

Semi-Auto Grooving Machine
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of semi-auto grooving machine in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for semi-auto grooving machine.

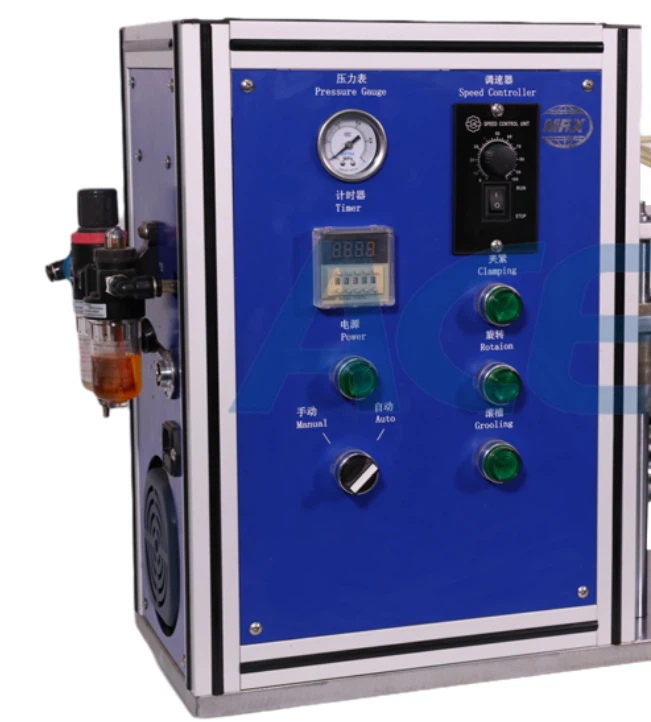

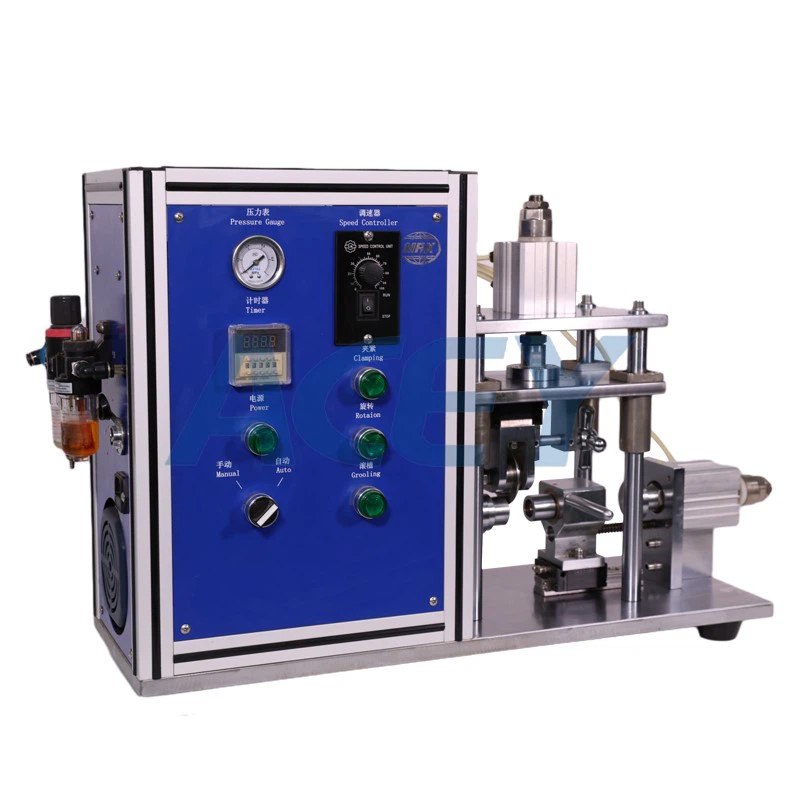

Semi-Automatic Cylindrical Cell Grooving Machine for 18650 21700 26650 Battery Cases
Product Description
It is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries. The replacement of rolling groove molds can be applied to the production of cylindrical batteries of various specifications.
Features
- The rolling groove size is adjustable, offering high precision and consistent dimensional stability.
- Capable of processing various types of rolling grooves for cylindrical batteries.
- The machine features a compact design, elegant appearance, and user-friendly operation.
- Suitable for rolling grooves of various steel-shell cylindrical batteries, including models such as 18650, 26650, and 21700.
- Also applicable for rolling grooves of aluminum-shell capacitors with a diameter within Φ30.
Specification
|
Model No. |
ACEY-GM-1 |
| Roll groove depth |
1.2～2.0mm (adjustable) |
| Rolling groove width | 1.1～1.5mm (according to the thickness of the hob) |
| Processing accuracy |
±0.1mm |
| Hob life |
> 1 million times |
| Capacity | Semi-automatic 400 EA/H |
| Configuration power supply |
220v/50Hz |
| Power 140W | |
| Compressed air |
0.5MPa～0.7MPa |
| Suitable for various steel shell cylindrical battery roll grooves such as 18650, 26650.21700 | |
| Suitable for aluminum shell capacitor rolling groove within Φ30 | |
| Dimensions | 820mm X 255mm X 510mm |
| Weight | 80kg |
Products Details
