Stainless Steel Vacuum Glove Box
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of stainless steel vacuum glove box in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

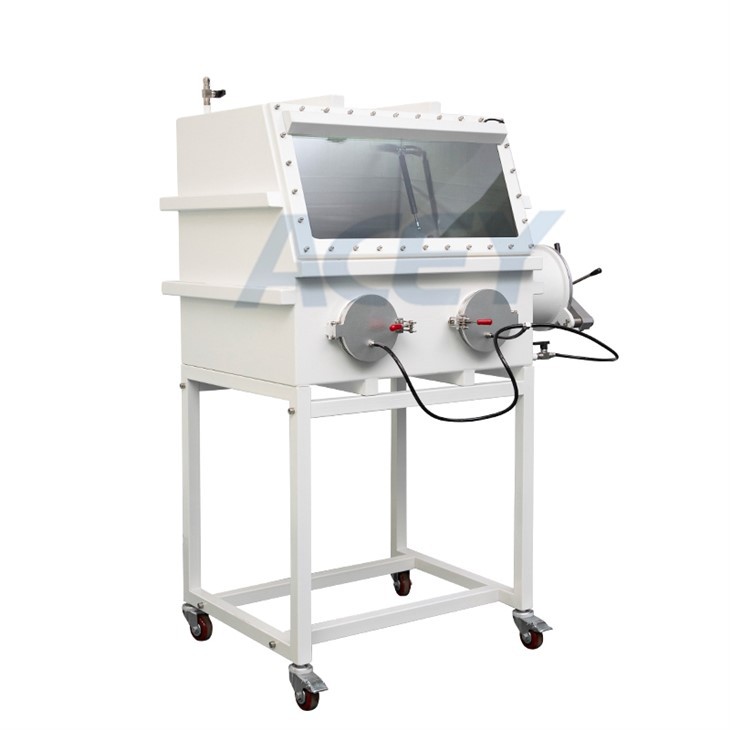

Stainless Steel Vacuum Glove Box
Product Description
The Laboratory Glove Box, also known as a containment glove box, is an essential piece of equipment for laboratories. It provides a safe and controlled environment for scientists to work with hazardous or sensitive materials that require a high level of isolation from the environment.
The Laboratory Glove Box is typically made of materials such as stainless steel or acrylic and features airtight chambers with gloves that allow operators to manipulate the materials inside the box without direct contact. It also includes a variety of systems such as air filtration, gas purging, and temperature control to maintain a stable and clean environment.
In addition to ensuring the safety of laboratory personnel, the Laboratory Glove Box plays a critical role in maintaining the integrity of sensitive materials and experiments. Its use has led to countless advances in scientific research and technologies, from the development of new medicines to the production of high-tech electronics.
Features
|
Box body |
SUS304 stainless steel, thickness 3mm, inner surface: brushed stainless steel, External surface: spray paint, white |
| Window | The front of the operation box is made of 10 mm thick organic glass, with a wide viewing angle and no blind spots. |
|
Ball valve |
The inlet and outlet balloon is made of 304 stainless steel. There are water nozzles inside and outside the valve to allow water and air to enter. Some instruments (such as spin coaters) can be placed in the box and can be evacuated through it. |
| Lighting | UV-free white light, installed above and in front of each glass window |
| Power supply |
The box is equipped with multi-hole power sockets to meet the needs of customers’ internal instrument use. |
|
Gloves |
The operating glove box uses industrial-grade corrosion-resistant latex gloves, and the glove mouth is fixed with a sealing ring. |
| Reserved interface | Reserved interface for KF, the glove box can be upgraded at any time later. |
Specification
|
Lab Glove Box Specification |
||
|
Model Number |
|
VGB-3 |
|
Material |
|
Stainless SUS304, 3MM |
|
Main Chamber Dimension |
|
780mm(L)×650mm(W)×700mm(H) |
|
Main Chamber Pressure |
|
Max. Vacuum Level: -0.1MPa |
|
Antechamber Dimension |
|
made of 304 stainless steel ø240mm, length =260mm, right side, with slidable tray inside |
|
Antechamber Pressure |
|
Max. Vacuum Level: -0.1MPa |
|
Window Panel |
|
1 Transparent Front Panel Removable tempered window with 2 glove ports (10mm) |
|
Gloves |
|
1 pair of Latex gloves |
|
Lighting System |
|
1 Lighting System (110V~250V) |
|
Pressure Gauge |
|
1 Pressure Gauge on Antechamber, Germany WIKA brand |
|
KF Connectors |
|
Standard KF-25 connectors and needle valves |
|
Option |
|
Oxygen monitoring unit (0 -1000 PPM ) Moisture monitoring unit(0-1000 PPM) Automatic Pressure Controller Automatic Humidity Controller (1-99%RH) Solvent removal system Open loop / Closed-loop HEPA Filters High speed vacuum pump (2L/S High speed vacuum pump) Purification System
|
