Automatic Laser Welding Machine for Battery Pack Assembly
Model No.: ACEY-LWM-1500W/2000W/3000W
Application: Steel, copper, aluminum, tin, nickel, chromium, gold, silver, titanium, niobium and other metals or alloys and other dissimilar materials.
Warranty:1 year
MOQ:1 set
Package:Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of Automatic Laser Welding Machine for Battery Pack Assembly in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
1500W 2000W 3000W 6000W CNC Automatic Fiber Laser Welding Machine for Battery Pack Assembly
Products Description
ACEY-LWM Automatic Fiber Laser Welding Machine is designed for high-precision welding in lithium battery pack manufacturing. Equipped with a high-performance fiber laser source, CNC motion control system and CCD monitoring module, the machine provides accurate and consistent welding for battery cells, tabs, busbars and electrical connections.
Compared with conventional resistance welding techniques, laser welding provides deeper penetration, a smaller heat-affected zone, reduced deformation, and better welding consistency. It is particularly well-suited for highly reflective battery materials such as aluminum, copper, and nickel.
Features
- Imported ITF anti-high-reflection fiber laser available in 1500W, 2000W, 3000W, or 6000W.
- Imported high-power fiber welding head.
- Customized cooling system from top domestic brands.
- Taiwan HIWIN guide screw with specifications X600-Y400-Z300.
- Customized worktable dedicated to battery pack assembly.
- INOVANCE servo motors and drivers.
- Customized software system.
- Taiwan Googoltech laser control card.
- EVOC industrial computer paired with a Dell monitor.
Specification
|
Parameter of Laser |
Average output power |
1500W/2000W/3000W |
|
Center wavelength |
1080±10nm |
|
|
Operation module |
continuous/modulation |
|
|
Maximum modulation frequency |
5KHZ |
|
|
Stability of output power |
<1% |
|
|
Red light |
Have |
|
|
Output connector |
QBH |
|
|
Output fiber length |
10M |
|
|
Input power |
220V |
|
|
Control mode |
RS232/AD RS232/AD |
|
|
Power adjustable range |
(10-100)% |
|
|
Power consumption |
4000W |
|
|
Weight |
<80 |
|
|
Parameter of cooling system |
Power supply system |
2-HZ+PE |
|
Rated power/current |
15A |
|
|
Water flow |
＞66L/min@3.5bar |
|
|
Pump head |
58.5m |
|
|
Water control range |
10℃～40℃ |
|
|
Water control accuracy |
±1.5℃ |
|
|
Water tank volume |
90L (effective) |
|
|
Refrigerant |
R22/1.5Kg |
|
|
Protection level |
IP44 Indoor application |
|
|
Applicable medium |
Deionized water,Distilled water |
|
|
Environmental requirements |
temperature:10-40℃,humidity10-90℃ |
|
|
Parameter of Laser Welding Machine |
Collimation unit |
FC=150mm |
|
Focus unit |
FF=200mm |
|
|

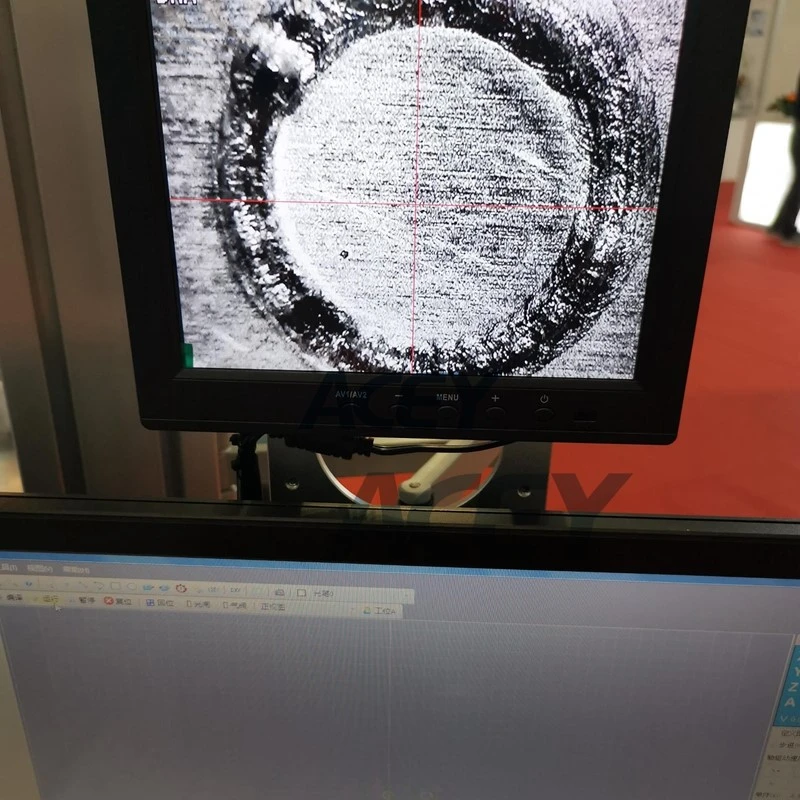

Monitoring unit |
CoaxialCCD |
|
|
Protection unit |
Coaxial or Rangefinder |
|
|
Protective lens |
D30*2mm |
|
|
Weight |
5KG |
|
|
Laser |
Laser |
Canada ITF1500W/2000W/3000W |
|
Welding head |
XHP1500/2000/3000 |
|
|
Cooling system |
2P |
Products Details

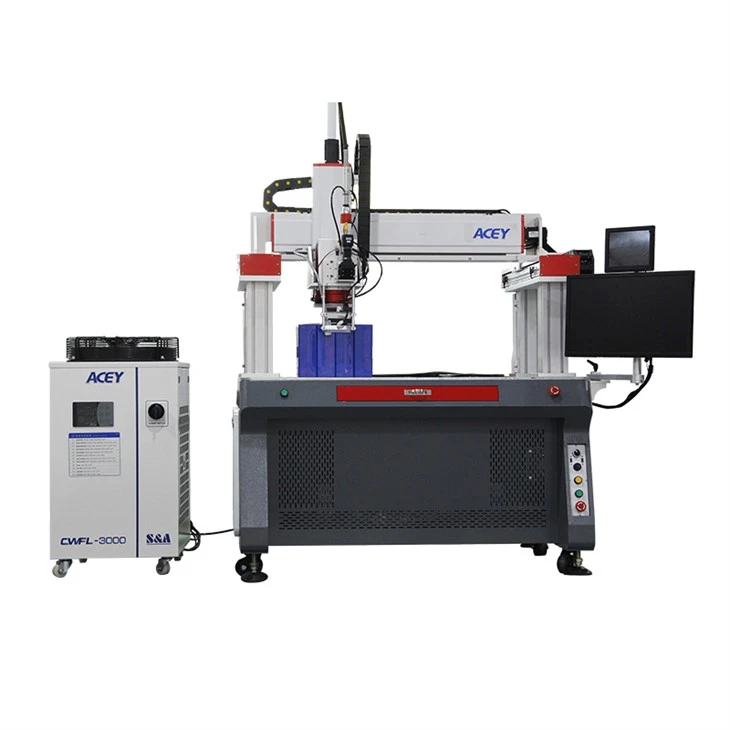

Appearance of the model of welding table with outer cover:
(According to customer demand can add or cancel the upper cover mechanism)
