Automatic Battery Insulation Paper Sticking & Sorting Machine
Model No.: ACEY-SS11
Battery Types: 18650/21700/26650/32650/32700
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of automatic battery insulation paper sticking & sorting machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
Automatic Battery Insulation Paper Sticking and Sorting Machine
Products Description
ACEY-SS11 Automatic Battery Insulation Paper Sticking and Sorting Machine is an integrated solution for cylindrical lithium-ion battery cell preparation and classification. It combines insulation paper application with electrical performance sorting in one production system, helping battery pack manufacturers reduce manual handling and improve production efficiency.
The machine is designed for cylindrical battery cells such as 18650, 21700, 26650, 32650 and 32700. Before sorting, the equipment automatically applies highland barley paper or PVC insulation material to the designated battery terminal. The cells are then tested for voltage and AC internal resistance and automatically distributed into preset sorting groups. By integrating two commonly used processes into one machine, the system simplifies material transfer between insulation paper sticking and battery sorting. Sorting parameters can also be configured according to different battery pack assembly requirements.
Features
- Two Processes in One Machine – Combines cylindrical battery insulation paper sticking and cell sorting in a single automated system.
- Automatic Electrical Sorting – Tests battery voltage and AC internal resistance and distributes cells according to preset sorting values.
- Wide Cylindrical Cell Compatibility – Suitable for common cylindrical cells including 18650, 21700, 26650, 32650 and 32700.
- High-Throughput Operation – The insulation paper sticking unit can process approximately 4,000–4,500 cells per hour, while the sorting unit can reach up to 6,000 cells per hour under suitable conditions.
- Flexible Sorting Configuration – Provides multiple receiving channels for different battery performance grades, with a separate channel for unqualified cells.
- PLC and Touchscreen Control – Uses PLC control, servo drive and a touchscreen interface for convenient operation and parameter adjustment.
Specification
|
Sticker machine |
Voltage Supply |
single-phase ~ 220V, 50Hz |
|
Rated power |
2KW |
|
|
Surface pad material |
highland barley paper or PVC material |
|
|
Material specification requirements |
the max diameter of barley paper roll material is 350MM, |
|
|
battery type |
18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material |
|
|
Feeding method |
insert battery cell hopper: 400pcs each time, available for 2 separate inserting units |
|
|
Cushioning power |
electric or pneumatic |
|
|
Control device |
7.5 inch touch screen, PLC programmer and servo motor |
|
|
Barley paper roll width |
100mm |
|
|
Speed |
4000-4500PCS/hour, 4PCS per punch |
|
|
Dimensions |
L1000mm×710mm×1500mm |
|
|
Machine weight |
200Kg |
|
|
Sorting machine |
Equipment power supply |
single-phase ~220V±10%/50Hz±10%, power <300W |
|
Battery Types |
18650 and other cylindrical cells | |
|
Receiving channel |
10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
|
|
Test parameters |
AC internal resistance, DC voltage |
|
|
Internal resistance test |
Test range: 80mΩ, |
|
|
Accuracy: ±0.5%rdg |
||
|
Sorting speed |
6000 pieces/hour |
|
|
Unwinding channel |
400 batteries can be stored |
|
|
Display result |
5.7 inch LCD screen + PC synchronous display + industrial computer |
|
|
Weight |
<300Kg |

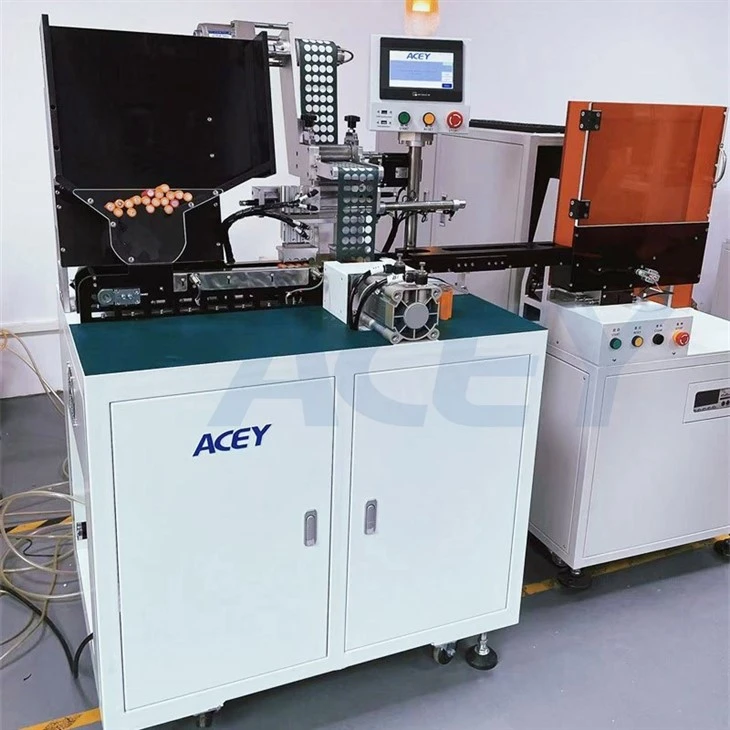

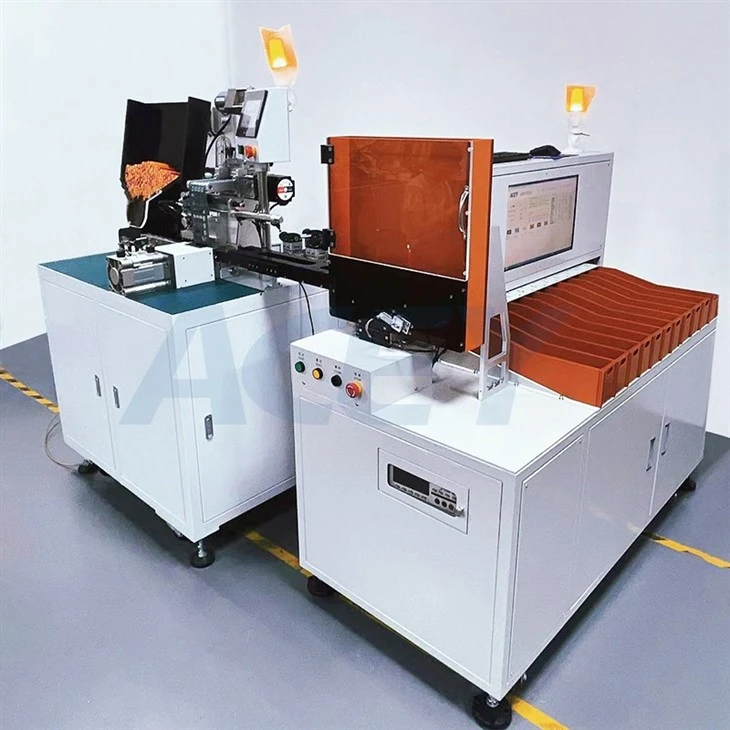

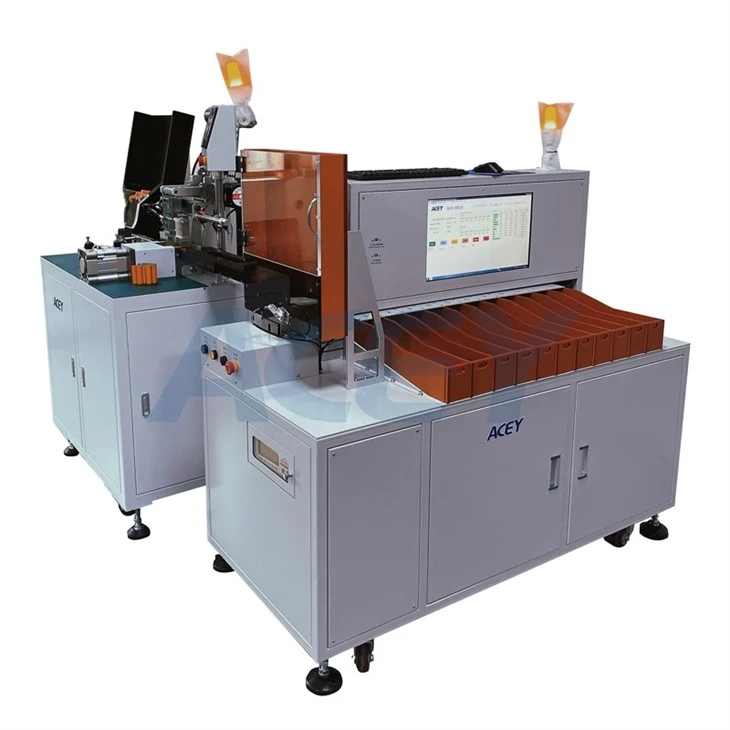

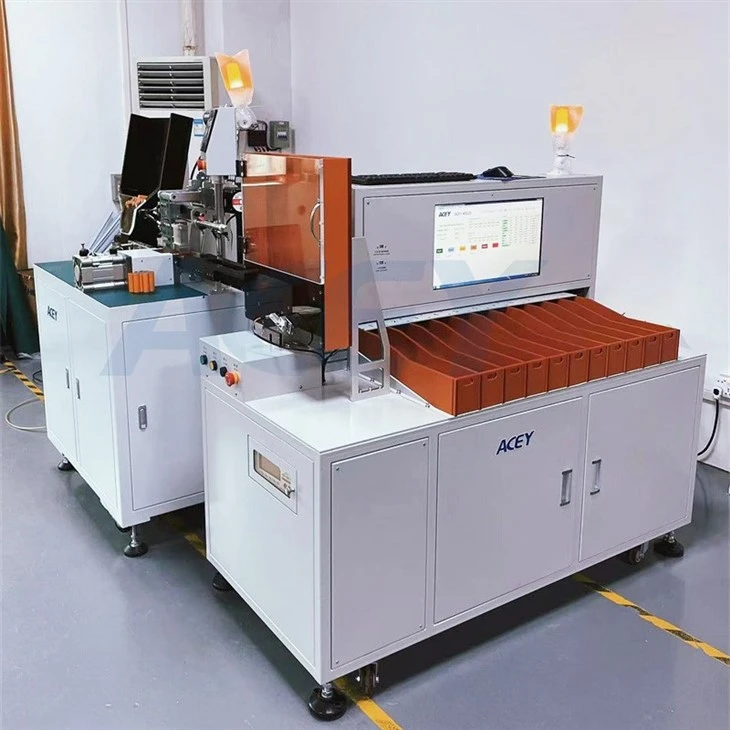

Product Details
