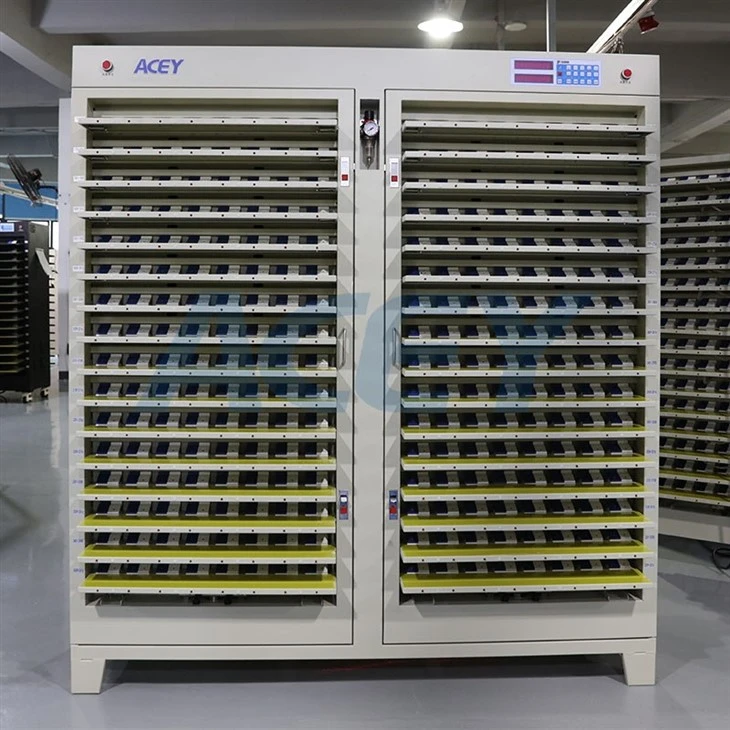

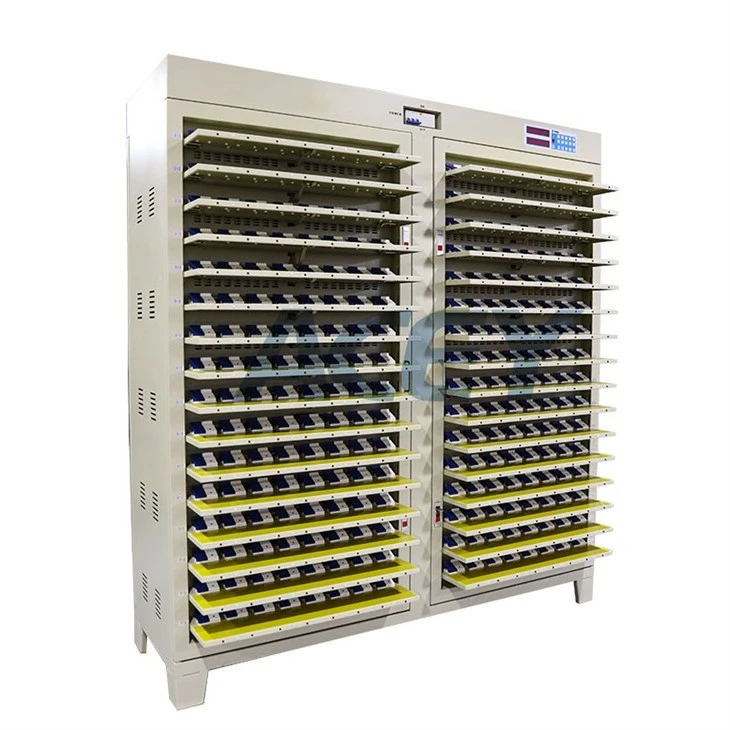

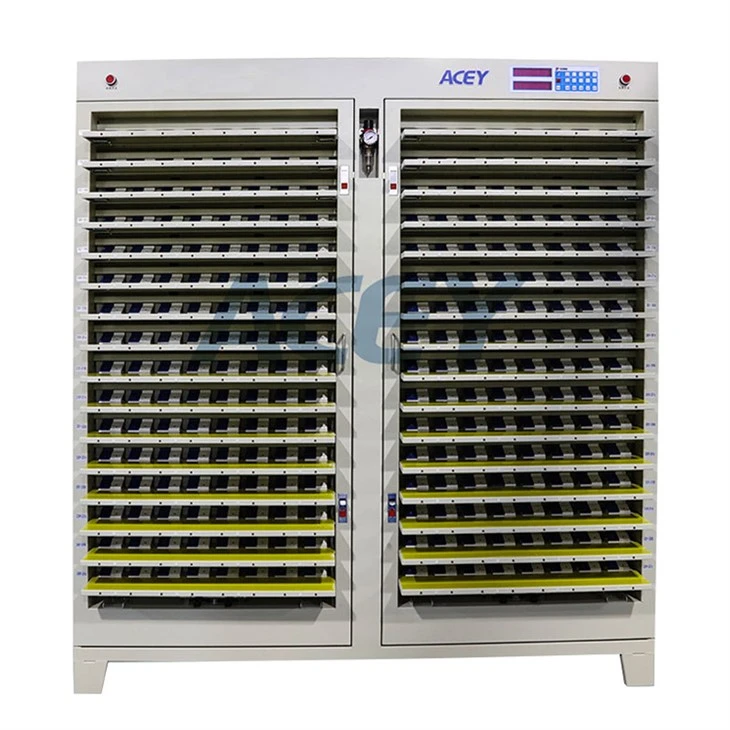

5V 1A 512Chs Battery Charge Discharge Test Equipment
Model No.: ACEY-PCT501-512
Battery Type: Polymer battery
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 5v 1a 512chs battery charge discharge test equipment in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.
5V 1A 512Chs Battery Charge Discharge Test Equipment for Polymer Cell
Product Description
The ACEY-PCT501-512 pouch cell grading machine employs a master-slave control architecture based on a computer-microcontroller configuration, combining advanced engineering, operational stability, user-friendly controls, and high-efficiency testing. In this setup, the computer communicates with the hardware to send instructions and collect data, while a local keyboard enables manual operation, parameter adjustment, and real‑time status monitoring. A dedicated CPU-driven constant current board delivers precise constant current and constant voltage control. Recognized for its outstanding cost‑performance ratio, the system serves as an essential testing and production asset for lithium‑ion battery manufacturers, capacity grading facilities, and R&D institutions.
Features
- Each battery channel is equipped with an independent constant-current and constant-voltage source, ensuring stable operation without impact.
- The equipment is controlled by an AVR microcontroller and connected to a computer for operation. All test data and curves can be saved, or tests can be performed directly through the device's keyboard panel by setting up the process and executing sorting.
- The system continuously monitors and displays the status of each battery. If an abnormal condition occurs, the corresponding channel will stop automatically and the indicator light will turn on.
- It features power-off protection; the system can resume the previous test process automatically when power is restored.
- Power components use MOSFETs, suitable for batteries with lower discharge voltage, such as LiFePO₄ batteries.
- The system adopts a graphical user interface for intuitive operation, displaying each battery's voltage, current, time, and capacity in real time, with color-coded indicators for different operating states and abnormal conditions.
- It is recommended to equip each computer with a UPS power supply to prevent data loss or computer damage during power outages. Each computer can connect up to 10 devices to ensure stable performance.
Specification
| Structure Of Equipment | |
| Number of device channels | 512 Channels |
| Size (width * depth * height) cm | 160*55*184 |
| Clamp form | Cylindrical four-wire fixture |
| Color of device | Dark grey |
| Clamp center distance | 40mm/35mm |
| Support battery height | Adjustable within 10-100mm range |
| Working power | Three-phase five-wire system ac380v±10%, 50hz |
| Working power dissipation | ≤27kw |
| Work environment | Temperature 0-40 ℃, relative humidity ≤80% |
| Heat-dissipating method | Natural wind intake and upward exhaust |
| Channel Parameter | |
| Voltage testing range | 0-5V, 1MV resolution |
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V |
| Constant voltage range | 2.5V-4.5V |
| Voltage accuracy | ±(1‰ reading +1‰ full) |
| Current range | 60mA-1A, Reslution: 1mA |
| Current accuracy | ±(1‰ reading +1‰ full) |
| Control mode | Computer connection equipment work, Whole |
| Machine Control | |
| Software Function | |
| Communication mode | Rs485, baud rate 57,600 |
| Process set | Maximum 32 work steps and 256 cycles |
| Charging mode | Constant current, constant voltage |
| Charging cutoff condition | Voltage, current, time, capacity |
| Discharge | Constant current |
| Discharge cut-off condition | Voltage, time, capacity |
| Protection function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc |
| Time range | 0 - 30,000 minutes |
| Time accuracy | ≤±1‰ |
| Sampling inspection period | ≤8s |
| Minimum data recording frequency | ≤8s |
| Battery grading | By capacity, time, discharge platform, etc |
| Data processing | Data, graphs, and loop diagrams |
Products Detail
