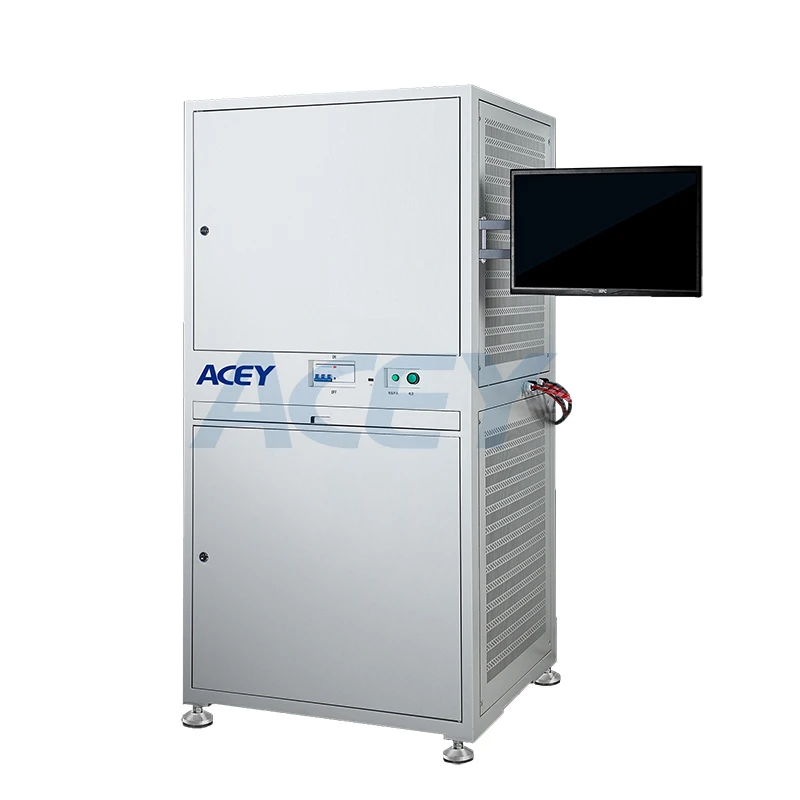

60V 30A Charge 300A Discharge Battery Integrated Tester Manufacturer
Model No.: ACEY-BIT60-30A300A
Test open circuit voltage:60V
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Compliance: CE Certified
60V 30A Charge 300A Discharge Battery Integrated Tester Manufacturer
Products Description
ACEY-BIT60-30A300A Lithium battery pack multifunction comprehensive tester is a fast and accurate device to test the performance of finished battery. It can measure the open circuit voltage, internal resistance, charge, discharge, overcurrent protection, short circuit protection and other functions of the battery. It can easily detect bad batteries and increased production efficiency.
Testing Items
1.Voltage: No-load voltage and Short circuit protection voltage after the test is completed,Range:0-60V.
2.Internal Resistance：ACIR1000hz, Range:0-4000mΩ
3.Charging overcurrent protection current , Range:0-30A.
4.Continuous charging current, Range:0-30A.
5.Continuous charging voltage monitoring, Range:0-60V.
6.6-1Discharge overcurrent protection current and delay tim, Rang of current:0-300A,Overcurrent maximum power 18KW. 6-2 Overcurrent test mode: (1) Step test (2) quick test.
7.Continuous discharge current, Range::0-300A
8.Continuous discharge voltage judgment, Range: 0-60V
9.Short circuit protection time：≤1000μS, Max Short circuit current about 5000A
10.Single cell voltage monitoring
11.Appreciation of charge and discharge voltage:
12.During the working test, if the power supply is cut off and the MOS tube of the protection board is turned off, no inrush current will be generated, and the protection board of the lithium battery pack will not be damaged.
13.Support MES system
14.Database: The software comes with a database, which can generate excel tables.
15.Step-by-step mode: the test sequence can be adjusted automatically.
16.Support chassis expansion
Technical Parameters
- Voltage range: 0-60V resolution:1mV Accuracy 0.1%RD+0.1FS
- Internal resistance: 0-2000mΩ resolution:0.001mΩ Accuracy 0.1%RD+0.1FS
- Charge current: 0-30A resolution: 0.001A Accuracy 0.1%RD+0.1FS
- Discharge current: 0-300A at the highest voltage, continued discharge current 300A,resolution:0.001A Accuracy 0.1%RD+0.1FS
- Overcurrent delay time: 0-30S resolution:１mS Accuracy 0.1%RD+0.1FS
- short circuit time: 0-2000μS resolution:1μS Accuracy 0.1%RD+0.1FS
- NTC range: 0-100K 0.001K
- R1 range: 0-100K 0.001K
- Power supply: AC 200V-240V
- Maximum working power for charging:1800W(When charging with maximum current)
- Maximum working power for discharging:18KW(When discharging with maximum current
- surge voltage＜15V
Product Details
Certifications
Cooperative Partner
Company Information
ACEY New Energy Technology, founded in 2009, is a one-stop supplier specialized in manufacturing advanced machineries and offering the best tailored solutions for lithium-ion battery pack assembly line. With more than ten years experience, our team integrate R&D, manufacture, and technical services into one. We have been committed to providing professional services for every of our client.
Package
Strong plywood case or ultra thick&hard paper carton package, inner thick foam cushion to protect the machine. We also support customized service if you need.
Transportation
By sea, by air or by express, we will find the most suitable transportation for you according to your need.
