Automatic Film Coating Machine
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of automatic film coating machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

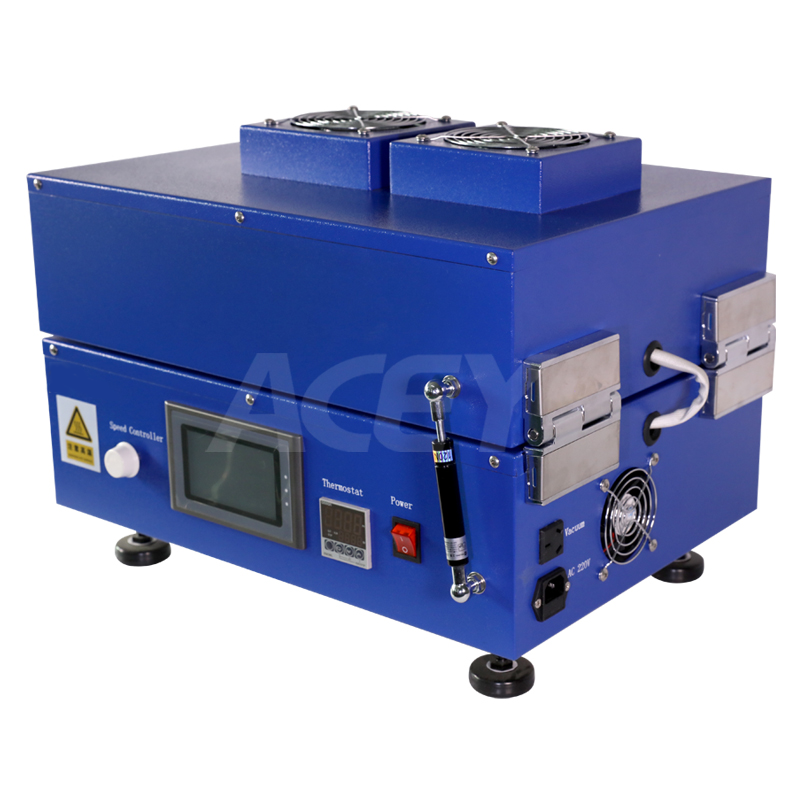

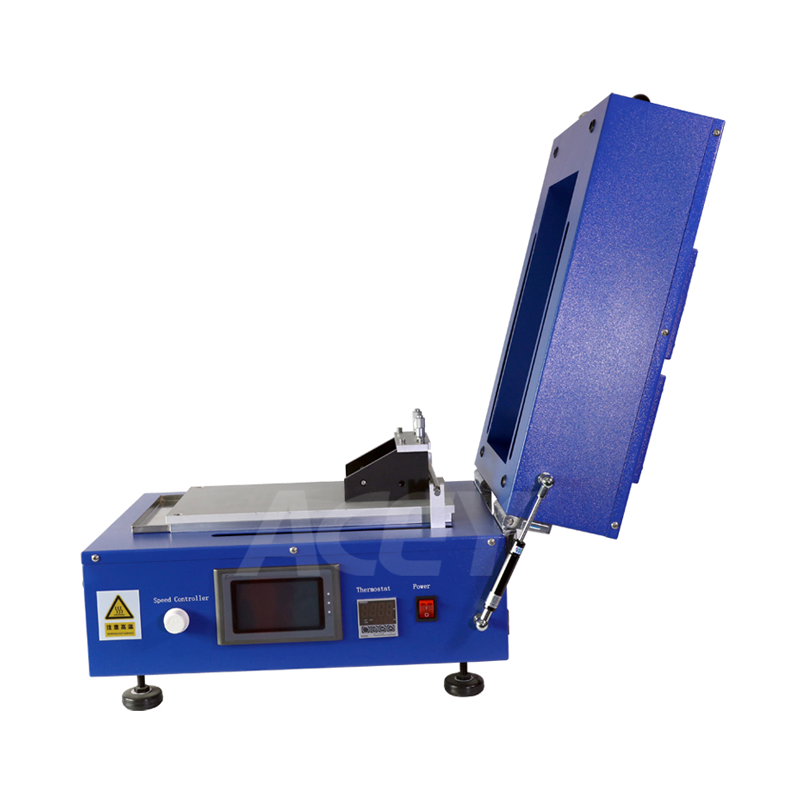

Automatic Film Coating Machine for Battery Electrode Coating
Product Description
Automatic film coating machine for battery electrode coating are widely used in the research of various high-temperature coating films, such as ceramic films, crystalline films, battery material films, and special nano-films; they can adapt to the development of science and technology for film formation under high temperature conditions in the future.
Features
- Using large area uniform heating to ensure high precision and uniform temperature in the cavity;
- Flat coating, motor-driven scraper coating, stable and adjustable coating speed;
- The coating film speed is adjustable. The vacuum aluminum pan can quickly place or remove copper foil, aluminum foil, etc., built-in vacuum pump or connected to an external vacuum source, and the substrate is adsorbed without deformation;
- Standard film dispenser, high coating precision, coating Adjustable cloth thickness;
- Can be used in the glove box, easy to operate and small in size, which can save space;
- PLC. Touch screen control for easy parameter setting:
Specification
| Product Name: | Automatic film drying coating machine | ||||||
| Model No.: | ACEY-HFC250 | ||||||
| Heating drying system | room temperature～150℃, digital display temperature controller, accuracy ± 1℃ | ||||||
| Coating method | flat coating, standard film maker (can be enlarged), optional scraper, wire rod and other gauges | ||||||
| The coating width | adjustable from 6.4-100mm, the coating stroke is about 250mm, and the stroke is steplessly set and adjusted in the touch screen | ||||||
| Coating drive | motor drive, the coating speed is steplessly set and adjusted in the touch screen; | ||||||
| Coating speed: | 0～120mm/sec (such as lithium iron phosphate slurry); | ||||||
| Scraper adjustable range | 0～6mm adjustable | ||||||
| Vacuum plate size | L365mm×W200mm×H32mm | ||||||
| Vacuum plate | aluminum plate with vacuum | ||||||
| Accuracy: | ±3μm, optional display 1μm dial indicator | ||||||
| Power supply | 220V/50Hz | ||||||
| Weight | 50KG | ||||||
| Dimensions | L505mm×W355mm×H325mm | ||||||
| Packing details | Include 1 built-in oil-free vacuum pump | ||||||
Products Details
