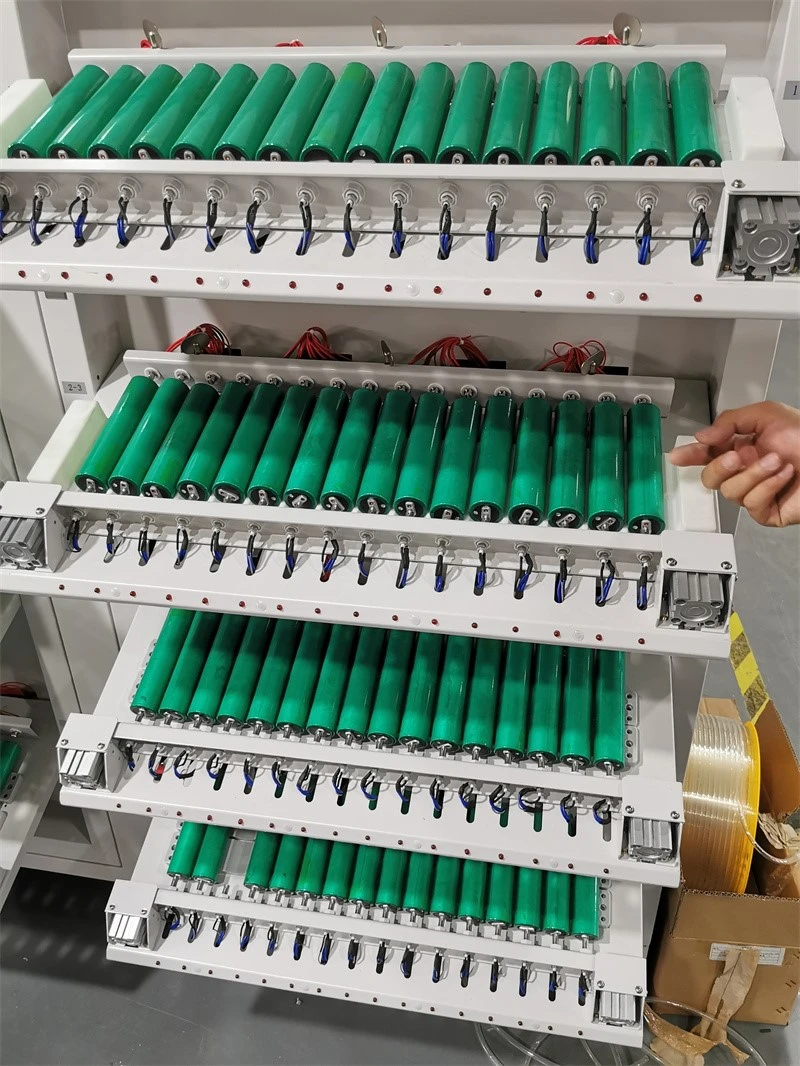

lithium battery testing equipment
battery cell testing equipment

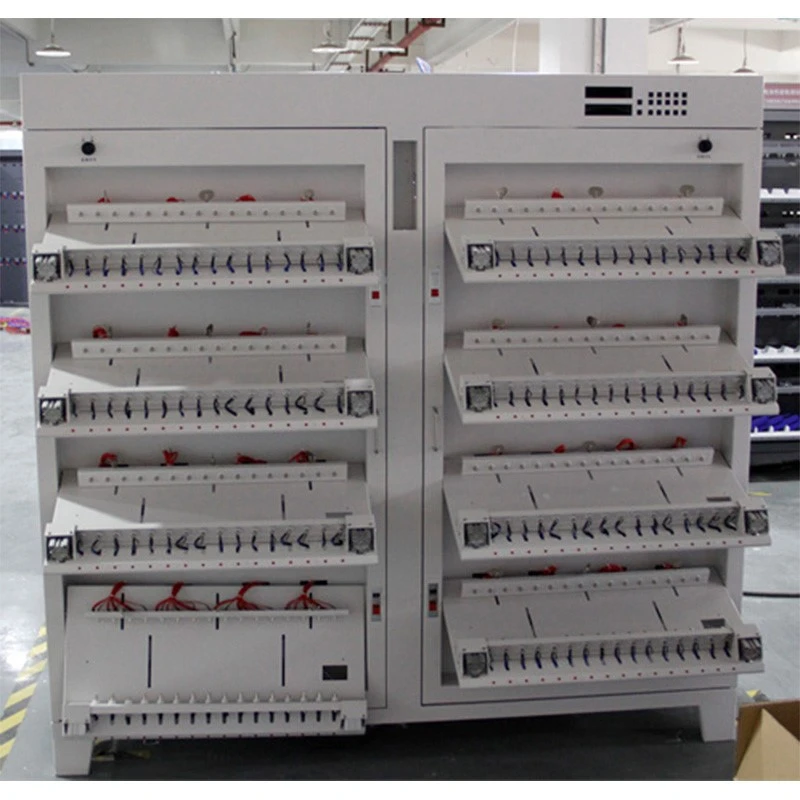

battery tester for lithium batteries

Lithium Battery Capacity Tester

Name: China Lithium Battery Capacity Tester Manufacturers Suppliers - Customized Service - Acey New Energy
Brand: Acey
SKU: 212791220

Item:5V 20A Battery cell testing equipment
Model No.: ACEY-BCT520-256
Battery Type: Cylindrical Battery 32140/33140/34189 or Prismatic Battery
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case

Send Inquiry

Product Introduction

Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of lithium battery capacity tester in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

lithium battery capacity tester

Products Description

Battery cell capacity grading machine is used to test capacity, charging and discharging of single battery, to achieve the consistency of battery cells.

The equipment is connected and controlled by a computer to send commands and collect data; the keyboard can manually operate the equipment to display parameters and status; the constant current board is commanded by the CPU and has constant current and constant voltage functions; when the battery is charged, the two-way power supply converts alternating current to 14V Direct current, through the constant current board to realize the charging control and detection of the battery; when the battery is discharged, the process is opposite to the charging process. First, the battery voltage is raised to 15V through the constant current board, and then the two-way power supply converts the direct current into alternating current and feeds it directly. into the AC power distribution network of the factory, thus realizing the energy feedback of battery discharge electric energy.

Working Principle and Features

The capacity sorting of Li-ion battery is screened by the cell capacity grading cabinet, the function of the cell capacity grading cabinet is similar to the charger, except that it can charge and discharge a large number of batteries at the same time.

Lithium batteries are managed by computer to get the data of each testing point, so as to analyze the size of these batteries' capacity and internal resistance and other data to determine the quality level of the batteries, and this process is capacity sorting.

Specification

Structure of equipment
Number Of Device Channels	The whole machine has a total of 256 channels
Dimensions	L1684W1091H1640
Chassis Color	Standard gray black (can be customized)
Fixture Form	Customized fixture, using pallet structure, cylinder open clamp.
Fixture Spacing	37mm
Support Battery Specifications	Length: 120-185mm; Diameter: 34/35mm
Channel Control Mode	Each battery has an independent constant current and constant voltage source, which is stable and without impact. can be realized
	start, stop, pause, resume and protect
	Each channel has independent constant voltage and constant current hardware control circuit
Working Power	The charging current and discharging current accuracy of each channel can be automatically calibrated by software
Power Factor	Three-phase five-wire system AC380V±10%, 50HZ
Ac Current Distortion Rate	≥0.99
Power Department Efficiency Index	≤2%
Working Power Consumption	Charge ≥80%, discharge ≥70%
Equipment Failure Rate	<1%
Working Environment	Temperature -10~40, relative humidity 80%
Cooling Method	TNatural air intake, upward exhaust
Power Section Protection Function	1. Grid voltage over-limit protection 2. Power grid frequency over-limit protection
Channel parameters
Voltage measurement range	DC 0~5V
battery voltage range	Charging DC 0~4.5V; Discharging DC 4.5~2V
Constant voltage range	DC 2~4.5V

Voltage accuracy	±(0.5‰ reading+0.5‰ full scale),
Voltage control resolution	0.1mV
Voltage sampling resolution	0.1mV
Voltage stability	≤(±1mV)
Current range	Charging DC 50mA～20A; Discharging DC 50mA～20A
Current accuracy	±(0.5‰reading+0.5‰full scale)
Current control resolution	1mA
Current sampling resolution	0.1mA
Current stability	≤(±1mA)
Current Rise Time (90% Load)	≤50MS
Channel startup time (90% load)	≤50MS
