18650 Battery Sorter and Tester
Model No.: ACEY-AS5S
Battery Types: Cylindrical Battery
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of 18650 Battery Sorter and Tester in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

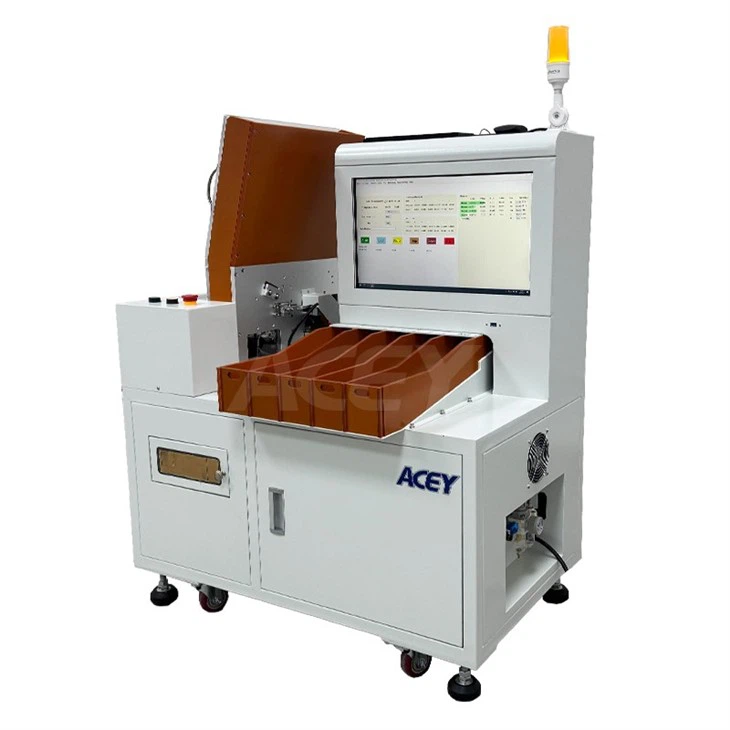

5 Channel Battery Cell Testing and Grading Machine for 18650 21700 Lithium Cells
Product Description
ACEY-AS5S lithium cell sorting machine automatically sorts batteries according to preset specifications with high speed and accuracy. By eliminating human errors such as misoperation and misclassification during the sorting process, it significantly enhances both sorting quality and efficiency. This system is ideally suited for automated sorting of cylindrical batteries.
Parameters
| Item No. | ACEY-AS5S | ||||||
| Voltage Supply | Single-phase ~220V±10%/50Hz±10%, power <800W | ||||||
| Battery Types | 18650(other sizes are universal to change the feeding mold) | ||||||
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. | ||||||
| Test parameters | AC internal resistance, DC voltage | ||||||
| Internal resistance test | Test range: 80mΩ, | ||||||
| Accuracy: ±0.5%rdg | |||||||
| Display resolution: 0.01mΩ | |||||||
| Voltage test | Test range： 8V | ||||||
| Accuracy ：±0.015%rdg, | |||||||
| Display resolution： 0.01mV | |||||||
| Sorting speed | 80ppm | ||||||
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. | ||||||
| Size | L960mm*W540mm*H1350mm | ||||||
| Weight | <150Kg | ||||||
Features
- Automatically classifies cylindrical batteries (including models such as 18650, 21700, 26650, and 32650) according to voltage and internal resistance.
- Delivers high precision, rapid processing, a high level of automation, and strong productivity.
- Touchscreen interface offers easy operation with quick responsiveness.
- Comprehensive and varied process detection signals ensure proven maturity and dependable performance.
- Every detail is designed with a human-centered approach, significantly enhancing operator and product safety.
- Accommodates different battery cell sizes by changing the sorting mold (molds are sold separately).
- A computer is included as part of the system package.

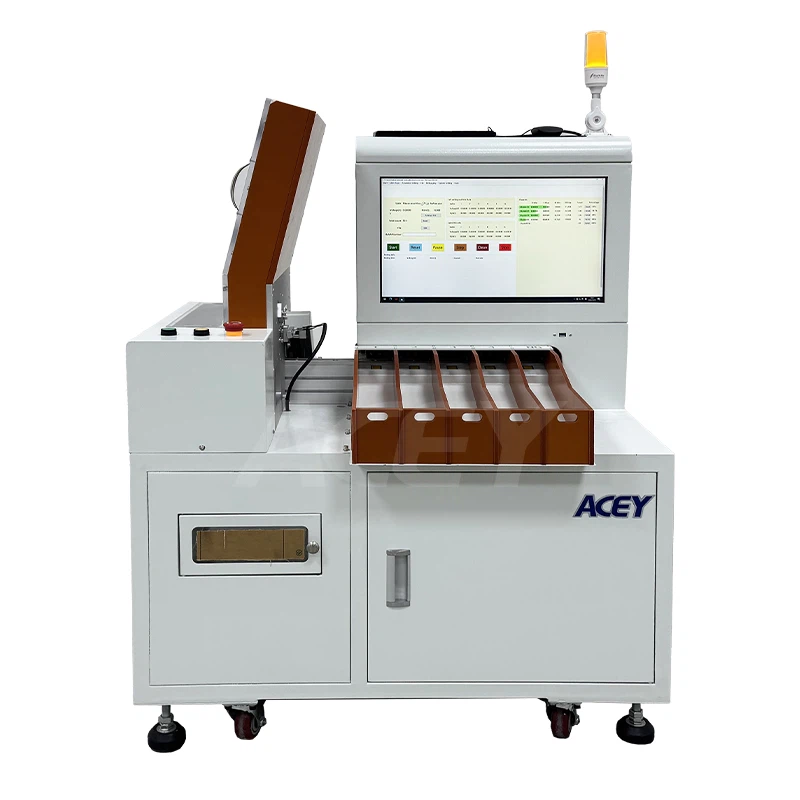

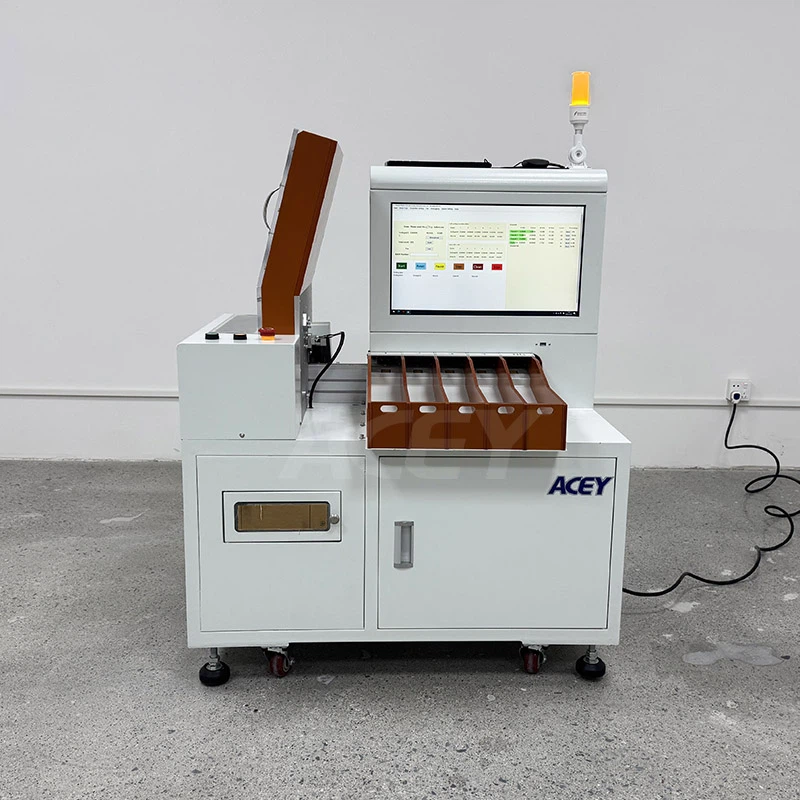

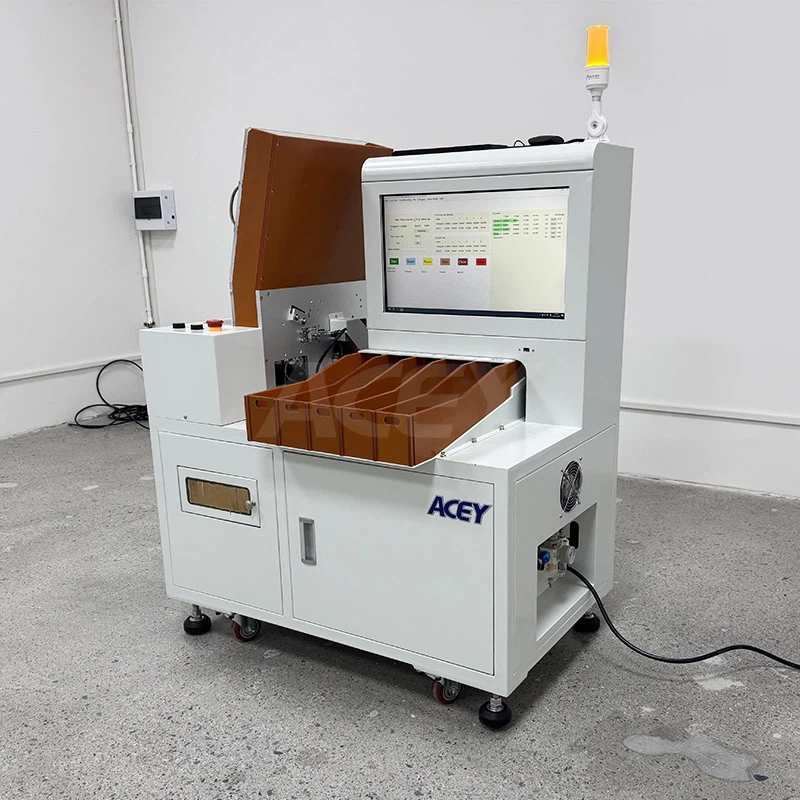

Products Details
