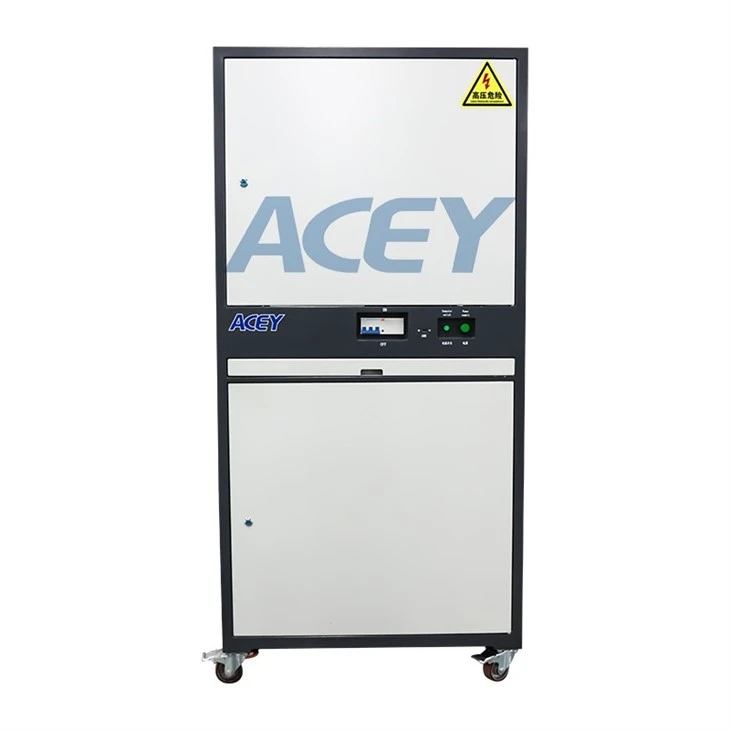

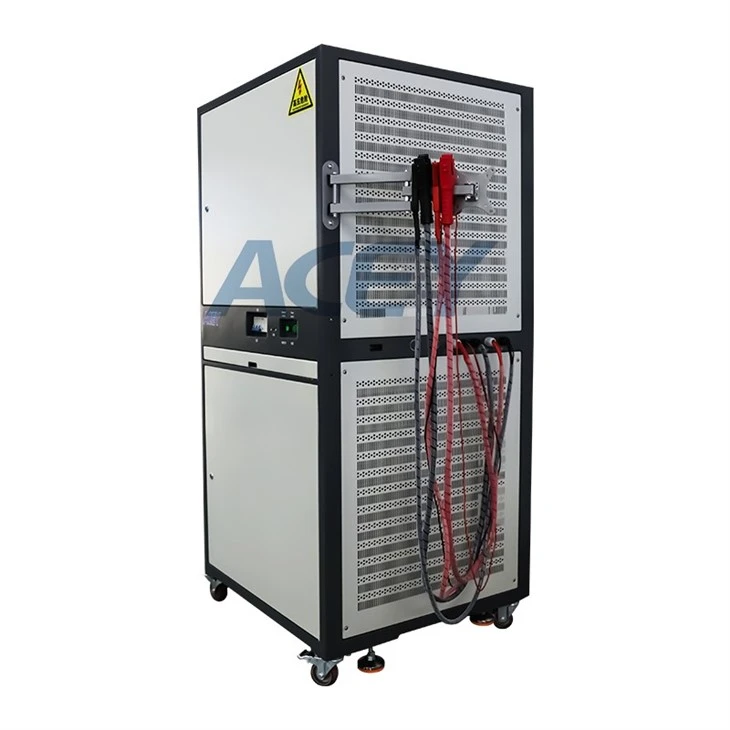

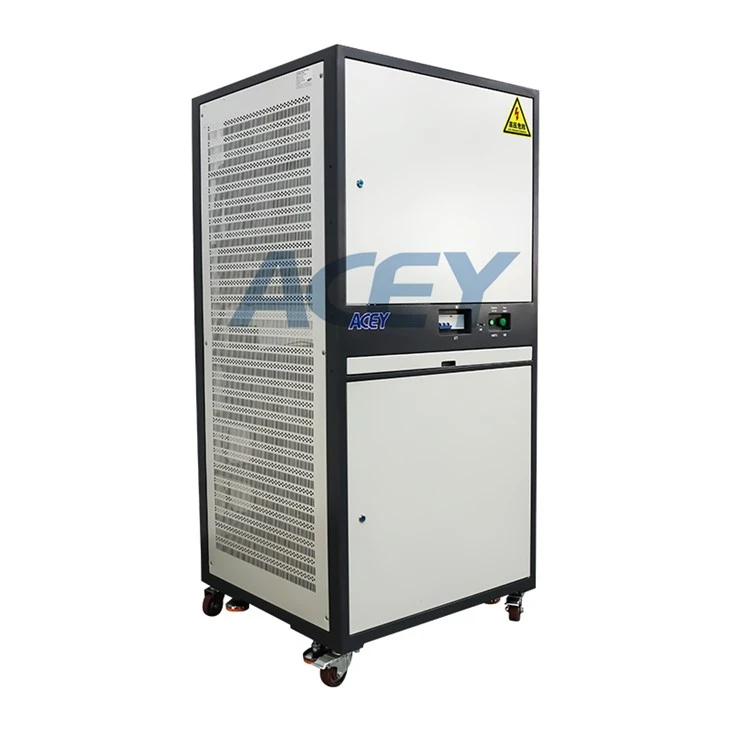

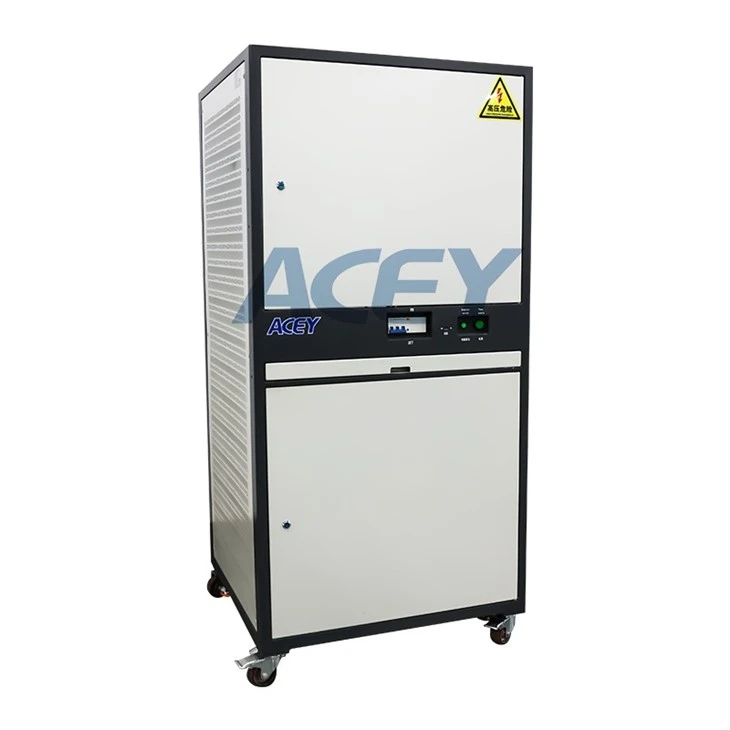

Battery Pack Charge Discharge Comprehensive Tester

ACEY-BIT120-50A600A Battery Comprehensive Tester combines battery production testing with instrument calibration, functioning as both a high-precision electronic load and a multi-purpose battery analyzer. It is compatible with all power battery series featuring CH+, P+, CH-, and P- terminals, and automatically tests key parameters including open-circuit voltage, AC internal resistance, various charge-discharge protection points, and delay times.

1. Voltage: No-load voltage and Short circuit protection voltage after the test is completed, Range:0-120V.
2. Internal Resistance: ACIR1000hz, Range:0-4000mΩ
3. Charging overcurrent protection current , Range:0-50A.
4. Continuous charging current, Range:0-50A.
5. Continuous charging voltage monitoring, Range:0-120V.
6. Discharge overcurrent protection current and delay time, current range:0-600A.
7. Overcurrent test mode: (1) Step test (2) quick test.
8. Continuous discharge current, Range:0-600A
9. Continuous discharge voltage judgment, Range: 0-120V
10. Short circuit protection time：≤1000μS, Max short circuit current about 5000A
11. Single cell voltage monitoring
12. Appreciation of charge and discharge voltage:
13. During the working test, if the power supply is cut off and the MOS tube of the protection board is turned off, no inrush current will be generated, and the protection board of the lithium battery pack will not be damaged.
14. Support MES system
15. Database: The software comes with a database, which can generate excel tables.
16. Step-by-step mode: the test sequence can be adjusted automatically.
17. Support chassis expansion.
