Purification Glove Box
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance

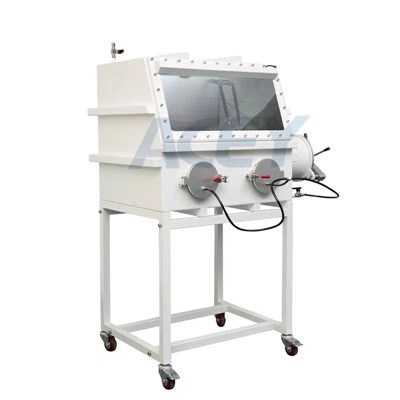

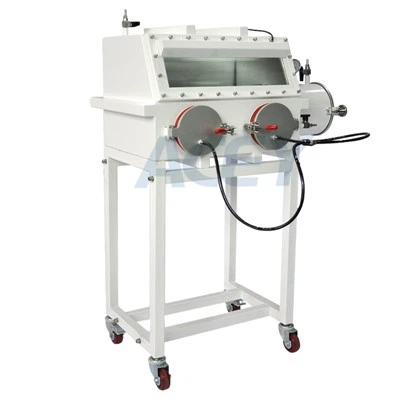

Lab Purification Vacuum Glove Box With Water And Oxygen Content Below 1ppm
Product Description
- Lab Purification Vacuum Glove Box With Water And Oxygen Content Below 1ppm, form a sealed environment, filled with Inert gas or nitrogen to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water, oxygen are equipment a 1 ppm below according to ISO 10648-2).
- Mainly for O2, H2O clearing.
Features
- Automatic control system pressure;
- Automatic control system purge state;
- Automatic control system Automatic switching & circulation mode on and off;
- Automatic control of the regeneration process of the gas purification system;
- Automatically prompts alarm function;
- System control parameter settings;
- Record system parameters;
- System password protection.
Specification
|
Configuration and Quantity |
Technical parameters |
Remark |
|
1 Main Chamber |
L1220 x W760 x H900 |
Stainless steel 304 with 3 mm thickness Round corner for easy cleaning |
|
1 transparent visualization panel |
thickness: 10mm |
Inclined panel of tempered window glass with thickness of 10mm; |
|
1 leg support |
H = 900mm |
Carbon steel, with casters (with support feet), convenient mobile glovebox, fine-tune the level |
|
2 Shelves |
Stainless steel SUS304 |
Adjustable type shelves L x D = 800 x 200 mm |
|
2 Glove Port |
Aluminum alloy: ∅220mm |
Option material: stainless steel / Polyoxymethylene polymer |
|
2 Gloves |
Cuff diameter 8”, Length 800mm, Thickness: 0.4mm |
Material: butyl rubber; O-ring sealed Brand: NORTH (USA) Option material: Neoprene / Rubber |
|
1 Power Board |
220 VAC |
220 VAC, 50 Hz, single phase |
|
1 Lighting system |
Lamp, ballast |
Built-in fluorescent lamp Brand: Philips (Netherlands) |
|
2 HEPA filters |
Subject to HEPA standards |
Inlet and outlet filter can eliminate particle size >0.3 μm, installed in the cabinets |
|
4 KF40 Spare connectors |
KF40 |
Configuration quick connector, located in the box right side, so that the liquid or gas can be easily and safely in and out of the cabinet. Material: SUS304 stainless steel |
|
1 Electrical Feedthrough |
Connect Use |
Installed on one of 4 KF40 Spare connectors |
|
1 Gas / liquid Feedthrough |
Connect Use |
Installed on one of 4 KF40 Spare connectors |
Products Details
