Manual Roller Press Machine
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of manual roller press machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

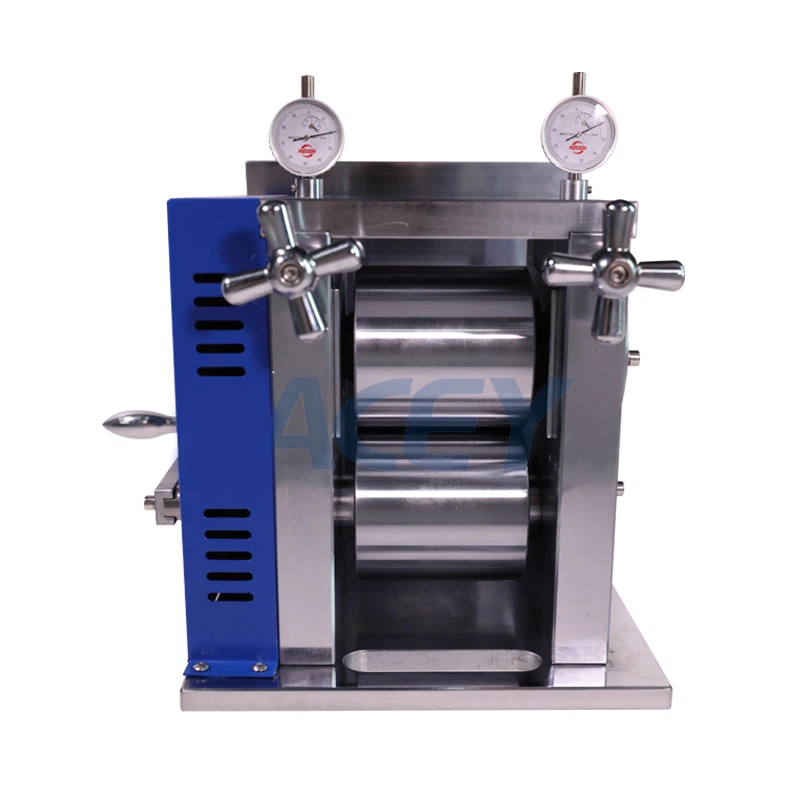

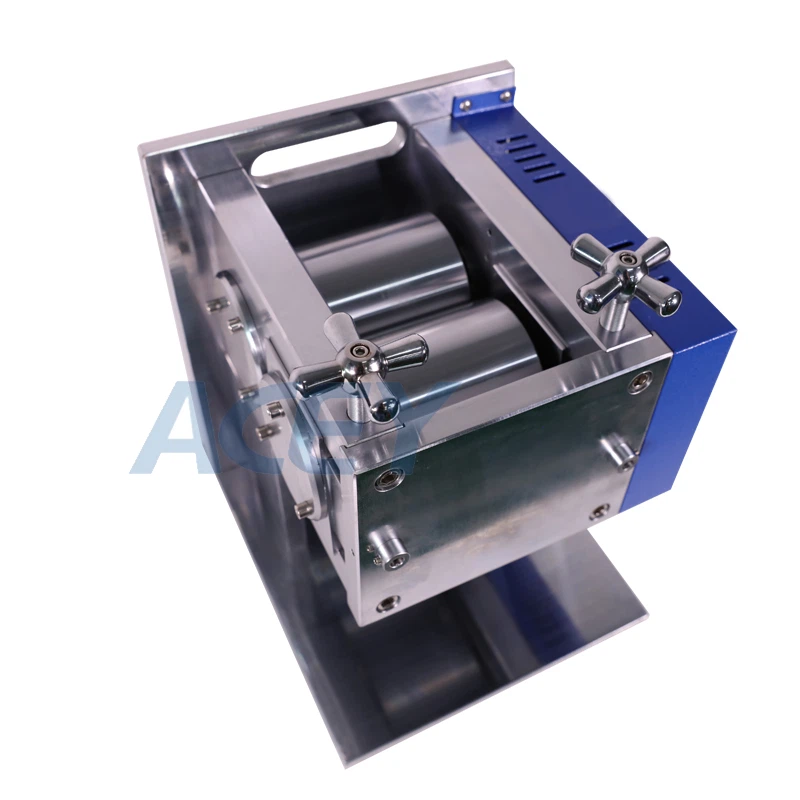

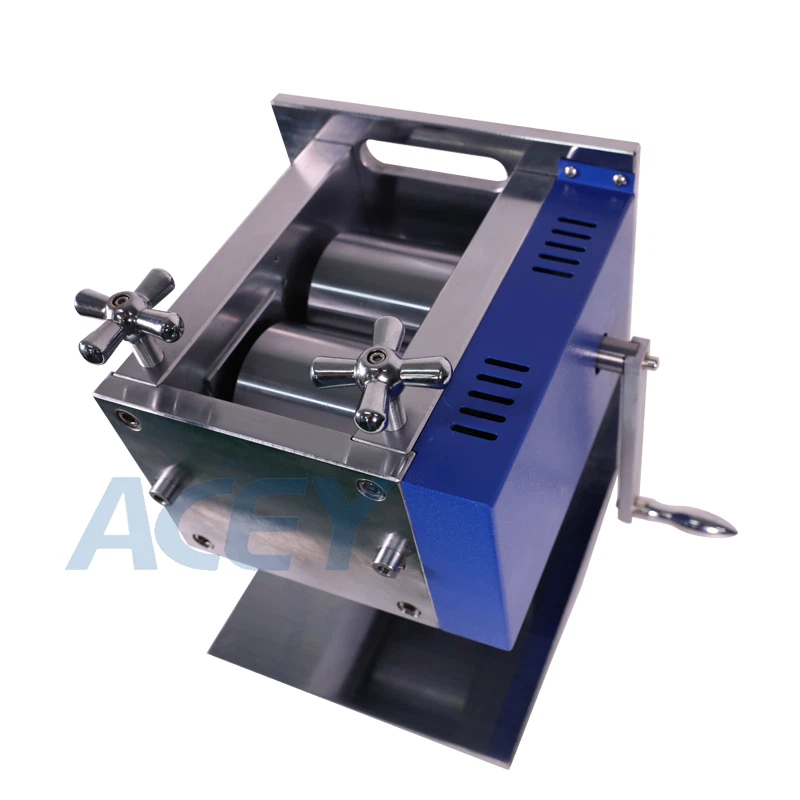

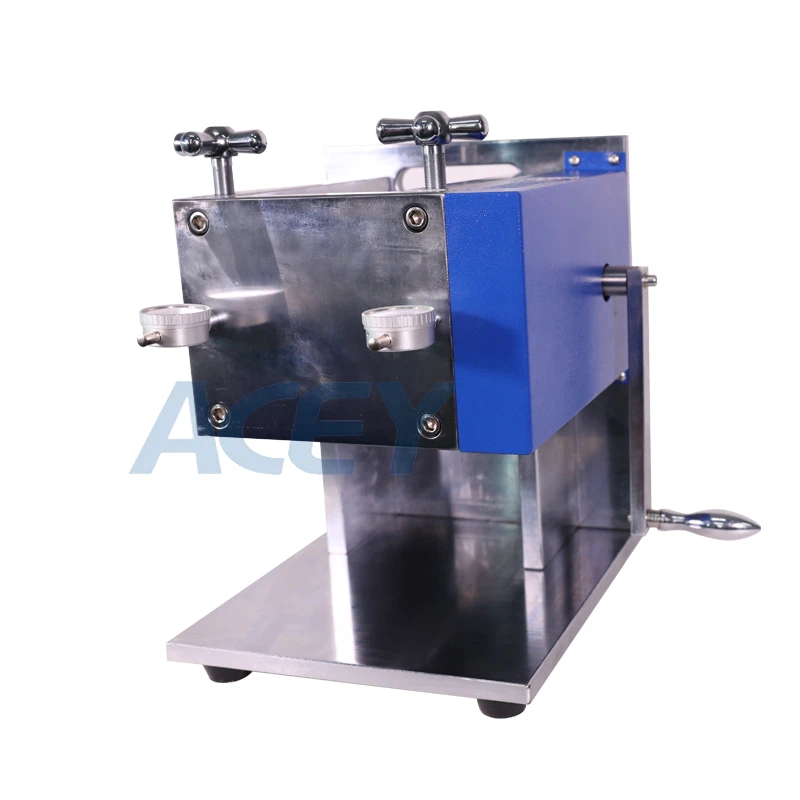

Manual Roller Press Machine for Battery Electrode Calendering
Product Description
Manual Roller Press Machine for Battery Electrode Calendering is aimed at high-precision rolling of positive and negative plates in the battery industry. The equipment has good horizontal and vertical rolling uniformity, and the appearance of the rolled product is high-quality. The equipment is provided by the hydraulic system to provide pressure for roll rolling. It is suitable for Where there is a higher requirement for the consistency of rolling force and rolling gap.
Features
- The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
- Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
- High rolling precision, roller cylindricity≤±2um.
- Vertical design, convenient for feeding and rolling of strip material.
- Adopt gear meshing rotation to realize the roller pressing.
Specification
| Product Name: | Manual horizontal roller machine | ||||||
| Model No.: | ACEY-MRP100W | ||||||
| Roller size: | diameter Φ96mmX100mm | ||||||
| Roller cylindricity | ≤±2um. | ||||||
| Roller hardness: | HRC62 | ||||||
| Roller finish: | above 0.4 | ||||||
| Rolling thickness: | 0～2mm, the gap can be adjusted | ||||||
| Roll placement: | horizontal placement | ||||||
| Operation method: | manual | ||||||
| Feeding speed: | 0～40mm/s, depends on the speed of hand crank | ||||||
| Dimensions: | L405mm*W305mm*H355mm | ||||||
| Equipment weight: | 50KG | ||||||
Products Details
