PVC POF Heat Shrink Tunnel Equipment For Battery Packs

Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of pvc pof heat shrink tunnel equipment for battery packs in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for pvc pof heat shrink tunnel equipment for battery packs.

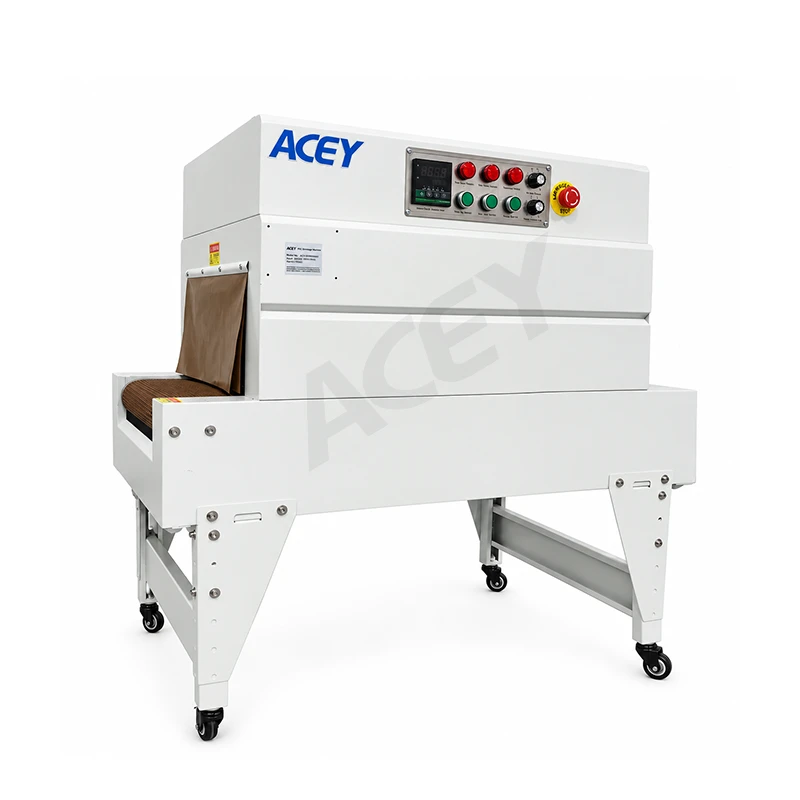

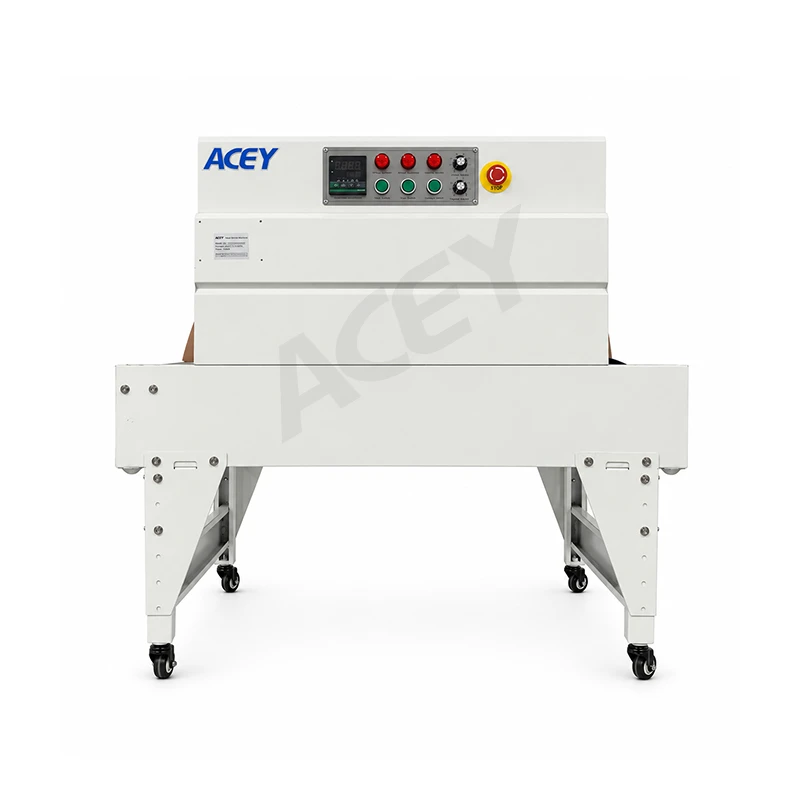

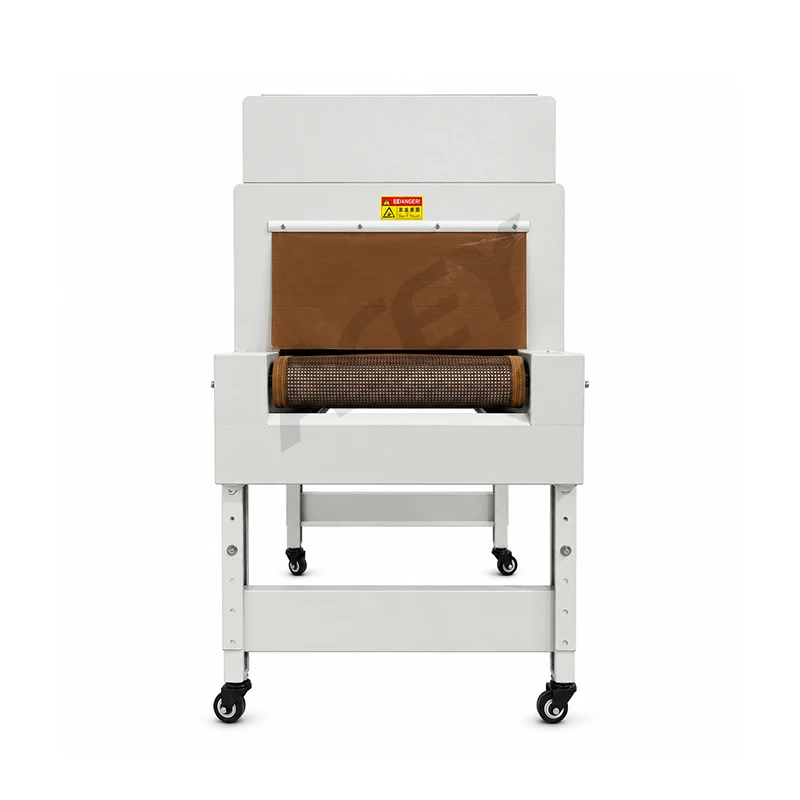

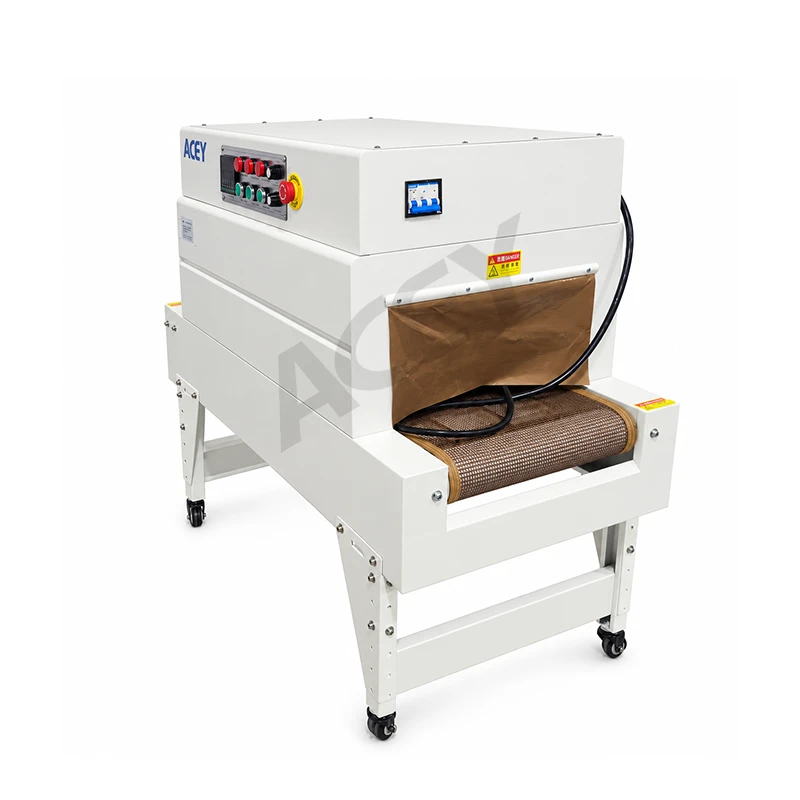

Automatic PVC POF Heat Shrink Tunnel Machine for Battery Pack Packaging

ACEY-HSM4020 automatic heat shrink tunnel machine is designed for shrink film packaging of compact products, including selected lithium battery packs and electrical components. It uses a heated tunnel and a conveyor system to shrink PVC or POF film around pre-wrapped products, helping create a neat and consistent outer package.

With a rated heating power of 5.5 kW and an adjustable conveyor speed of 0–15 m/min, the machine allows operators to adjust the product's travel time through the heating chamber according to the film type, product dimensions and required shrink effect. The machine features an 800 × 400 × 200 mm shrink tunnel, a Teflon conveyor and a maximum conveyor load of 15 kg. Its compact structure makes it suitable for packaging workstations and production areas where floor space is limited.

For lithium battery pack manufacturers, heat shrink packaging can provide an outer film covering for assembled battery packs. The final packaging result depends on film selection, pack geometry, temperature settings and conveyor speed. Sample testing is recommended before production to confirm packaging quality and suitability.

1. PVC and POF Film Compatibility
Supports heat shrink packaging with PVC and POF films, subject to film specifications and application requirements.

2. Adjustable Conveyor Speed
The 0–15 m/min conveying range allows operators to adjust the heating exposure time for different products and films.

3. 5.5 kW Heating System
Provides the rated heating power required for the specified shrink tunnel configuration.

4. Compact Tunnel Design
The 800 × 400 × 200 mm tunnel size is suitable for selected compact products within the machine's dimensional limits.

Note: Confirm the power supply and other specifications with our sales team before ordering. Customization should be evaluated according to the actual product dimensions and production requirements.

Frequently Asked Questions

Q1: Which shrink films can the ACEY-HSM4020 process?

The ACEY-HSM4020 is designed for PVC and POF shrink films. Film thickness, shrink temperature and packaging requirements should be checked before confirming compatibility.

Q2: Is this heat shrink tunnel machine suitable for lithium battery packs?

It can be used for selected lithium battery pack outer-film packaging applications. Suitability depends on the pack dimensions, weight, shape and film specifications. Please provide a sample or detailed product information for evaluation.

Q3: How do I choose between the HSM4020 and HSM5035?

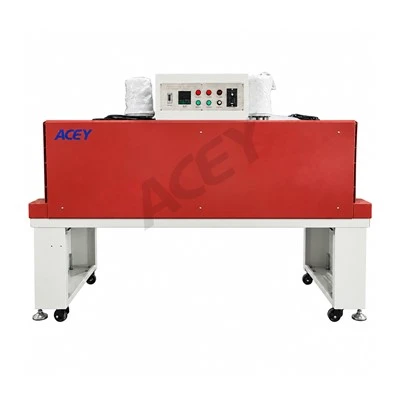

The HSM4020 is a compact model designed for PVC and POF films, with a 5.5 kW rated power and a 15 kg maximum conveyor load. The HSM5035 supports PE, PP, POF and PVC films and has a larger tunnel and higher load capacity. Choose according to your film type, product dimensions, package weight and production requirements.
