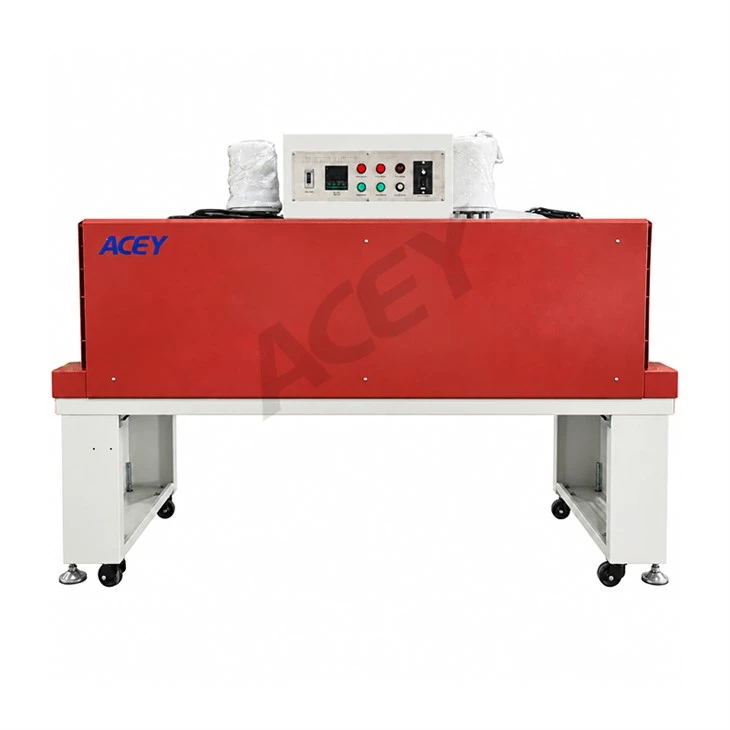

PE POF PVC PP Automatic Heat Shrink Tunnel Machine With Conveyor
Item No.: ACEY-HSM5035C
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co., Ltd. is a manufacturer and supplier of pe pof pvc pp automatic heat shrink tunnel machine with conveyor in China, offering factory-direct supply to customers worldwide. We also provide battery pack assembly equipment and turnkey production lines that comply with applicable CE requirements, along with OEM/ODM services and 24/7 after-sales support. Contact ACEY for product specifications, model selection advice, and a detailed quotation for pe pof pvc pp automatic heat shrink tunnel machine with conveyor.
Automatic Heat Shrink Tunnel Packaging Machine for PE, POF, PVC PP
Products Description

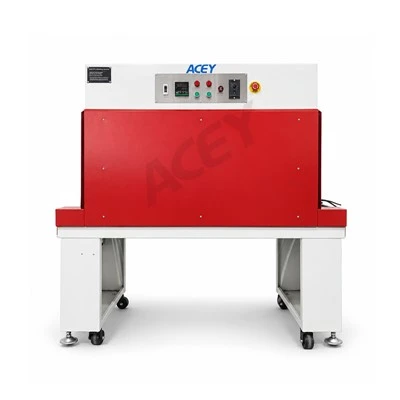

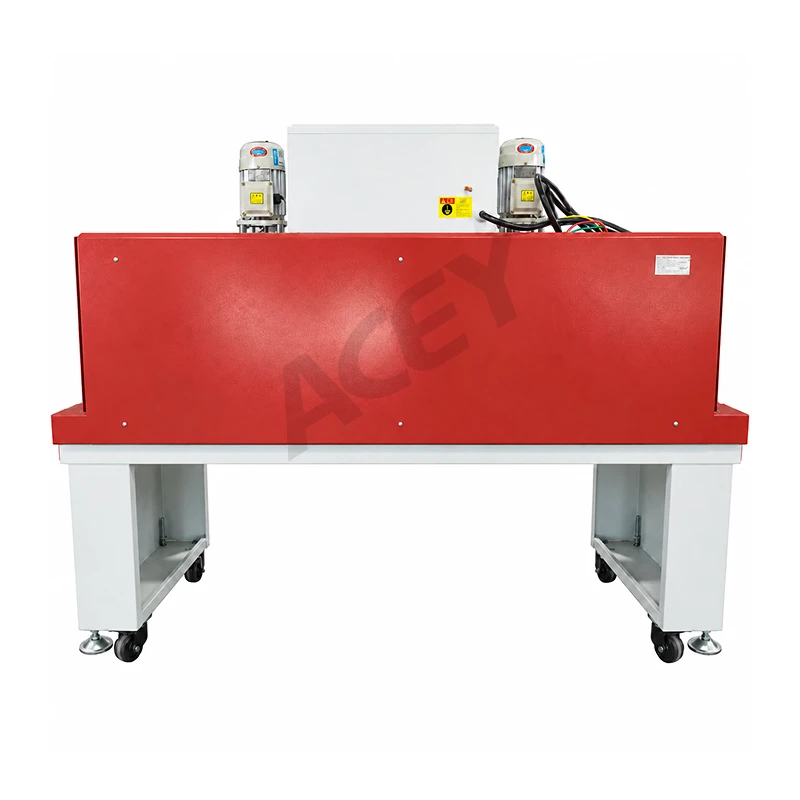

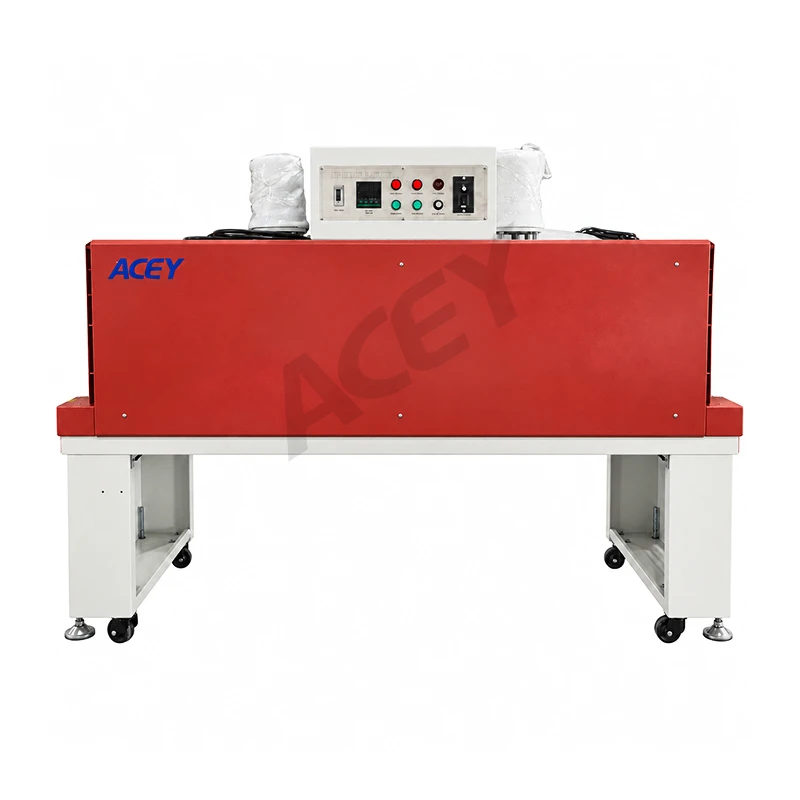

The ACEY-HSM5035C Heat Shrink Tunnel Machine is designed for shrink packaging applications using PE, POF, PVC and PP films. It uses a heated tunnel and a conveyor system to apply heat to packaged products, helping the shrink film conform to the product surface.
With a 15 kW heating system, an 1,800 mm-long shrink tunnel and an adjustable conveyor speed of 0–15 m/min, this machine allows operators to adjust the packaging process according to product dimensions, film type and shrinkage requirements. The effective tunnel opening measures 400 × 300 mm (W × H), while the conveyor supports a maximum load of 25 kg. These specifications help manufacturers evaluate whether the machine is suitable for their products before purchasing.
Features
1. Compatible with Multiple Shrink Films
The machine supports PE, POF, PVC and PP shrink films, providing flexibility for different industrial packaging requirements. Film selection should be based on the product, film properties and required packaging result.
2. Adjustable Conveyor Speed
The conveyor speed can be adjusted from 0 to 15 m/min. Operators can select a suitable conveying speed according to the product size, film type and required shrinkage effect.
3. 15 kW Heating System
The 15 kW power rating provides the heating capacity specified for this model. The operating temperature and conveying speed should be adjusted to suit the selected film and product.
4. Defined Tunnel and Effective Opening Dimensions

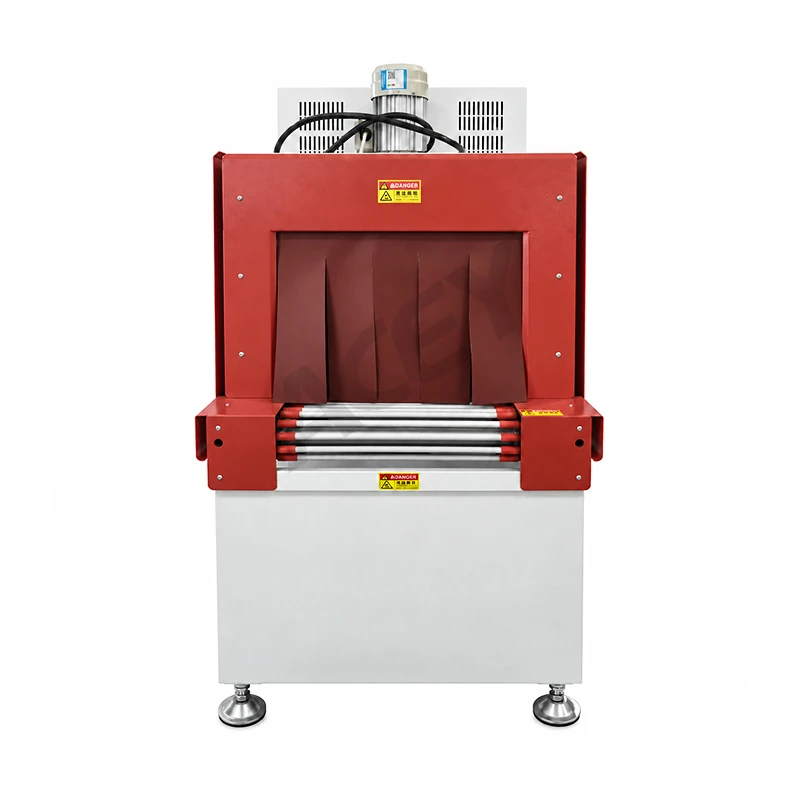

The shrink tunnel measures 1,800 × 500 × 350 mm (L × W × H), with an effective passage size of 400 × 300 mm (W × H). These dimensions help buyers assess product clearance and packaging compatibility.
Specification
| Parameter | Specification |
|---|---|
| Model | ACEY-HSM5035C |
| Power Supply | 380 V, 50–60 Hz |
| Total Power | 15 kW |
| Shrink Tunnel Dimensions (L × W × H) | 1,800 × 500 × 350 mm |
| Effective Tunnel Size (W × H) | 400 × 300 mm |
| Conveyor Speed | 0–15 m/min |
| Conveyor Loading Capacity | 25 kg maximum |
| Machine Dimensions (L × W × H) | 2,100 × 750 × 1,620 mm |
| Machine Weight | Approximately 200 kg |
| Compatible Shrink Films | PE, POF, PVC, PP |
Note: Confirm the power supply and other specifications with our sales team before ordering. Customization should be evaluated according to the actual product dimensions and production requirements.
Product Detail
Frequently Asked Questions
1. What shrink films can the ACEY-HSM5035C process?
The ACEY-HSM5035C is specified for PE, POF, PVC and PP shrink films. Please provide your film type and product dimensions to confirm suitability for your application.
2. Can the conveyor speed be adjusted?
Yes. The specified conveyor speed ranges from 0 to 15 m/min, allowing adjustment according to the product, shrink film and packaging requirements.
3. Is the ACEY-HSM5035C suitable for battery pack shrink packaging?
It can be considered for battery pack shrink packaging when the product dimensions, weight, film type and heat exposure requirements are compatible with the machine. Please provide your battery pack specifications for confirmation.
