Vacuum Sealing Machine
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, PayPal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of vacuum sealing machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

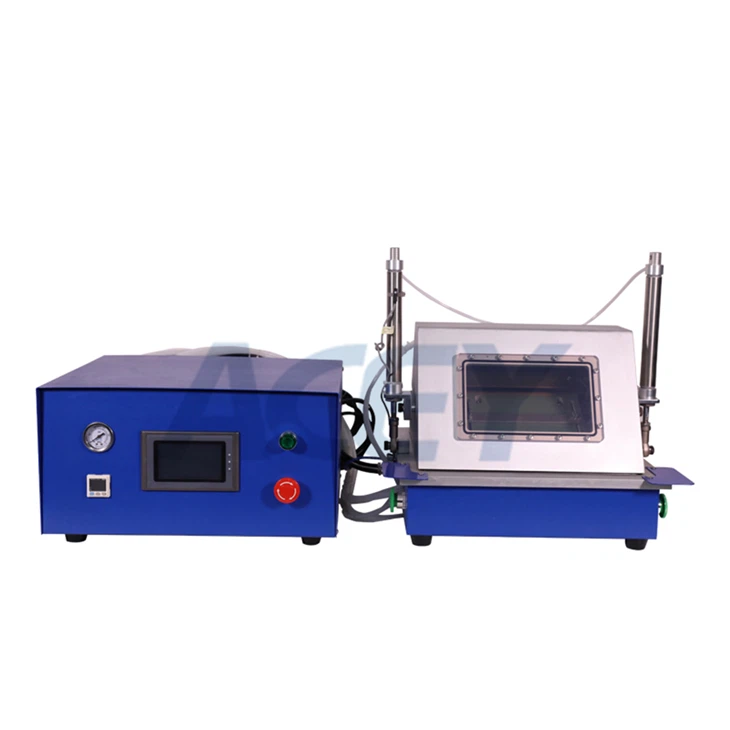

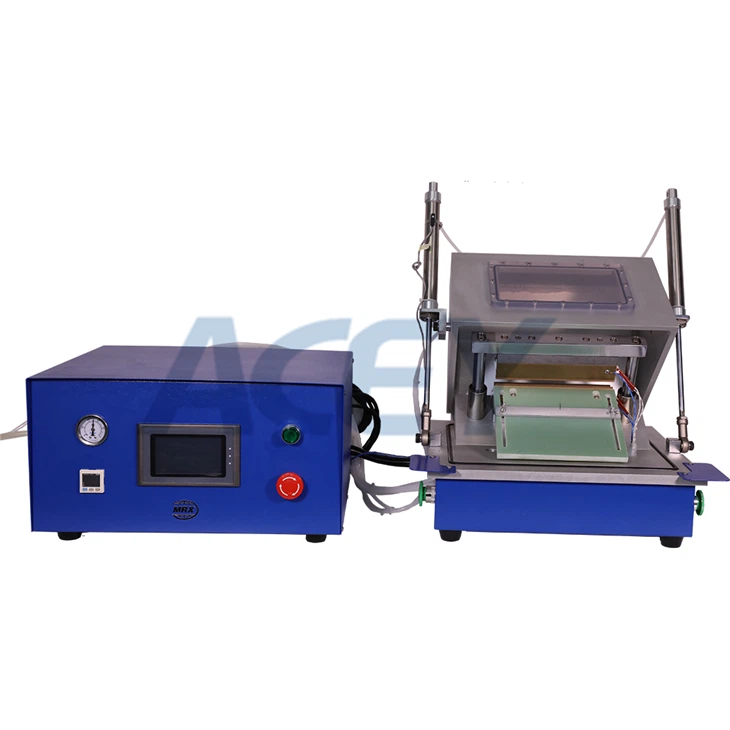

Pouch Cell Compact Vacuum Pre-sealing Machine
Product Description
Pouch cell vacuum pre-sealing machine is mainly used for vacuuming and hot-pressing pre-encapsulation of polymer/pouch cell lithium batteries after liquid injection and standing; this machine accurately controls the main vacuum exhaust box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of the battery aluminum-plastic shell.
Features
*The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;
*The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
*The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately.
Ensure the parallelism requirements of the product after edge sealing;

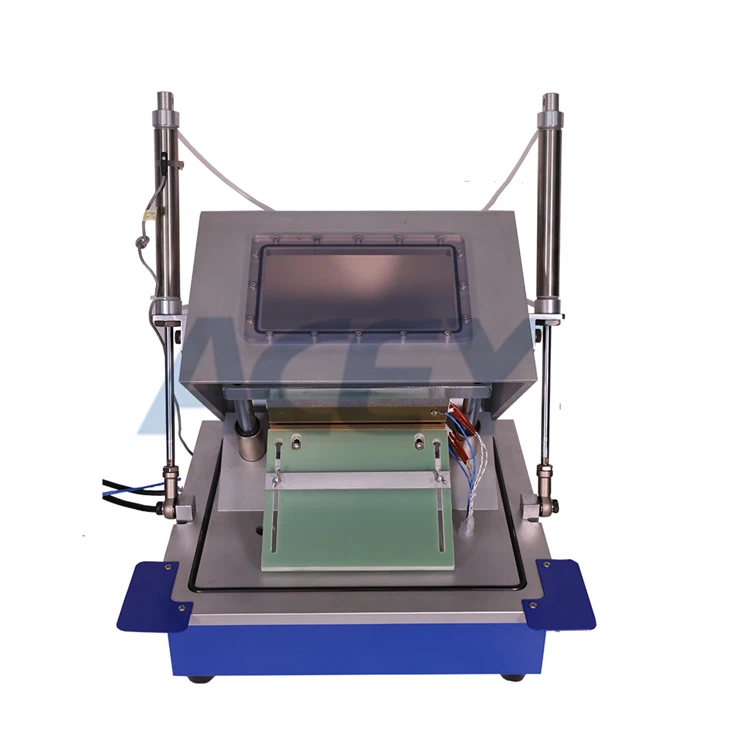

* Through the perspective window, you can observe the changes in the cavity while working.
*The cover cavity is driven by an air cylinder and guided by the rotating guide sleeve, which can move up and down flexibly, and the guiding is accurate to ensure the product tightness requirements.
*It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

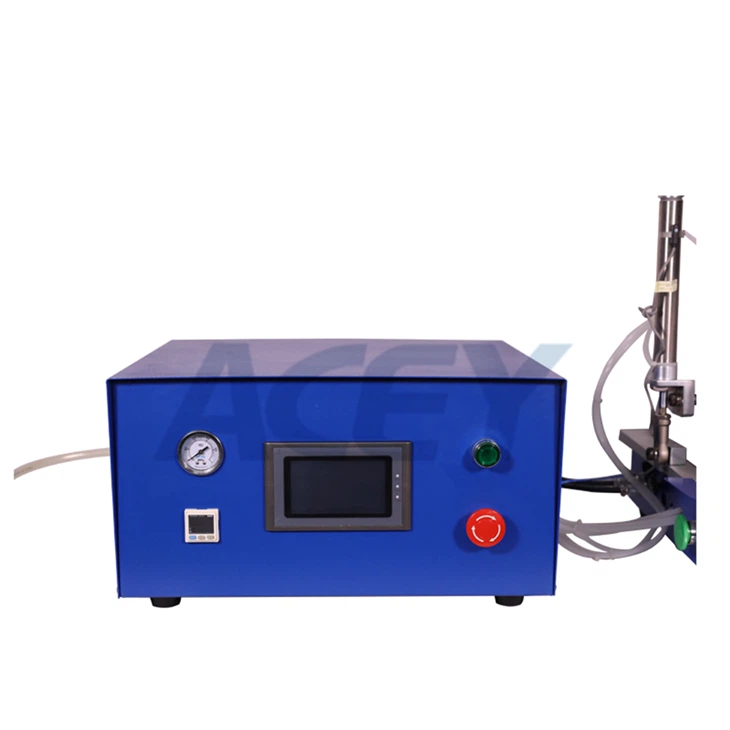

*The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.
*Easy operation, beautiful appearance, small size and light weight.
*PLC touch screen automatic control;
*The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure;
*Vacuum degree can be adjusted up to -95Kpa (the buyer shall provide a vacuum pump);
*The range of the battery is 200 in length and 160mm in width (including air bag position)
Specification
| Item Name: | Vacuum Sealing Machine For Preparing Pouch Cell | ||||||
| Item No.: | ACEY-VPS200 | ||||||
| Head temperature: | room temperature～250℃, temperature adjustable; | ||||||
| Temperature control accuracy: | ±2℃; | ||||||
| Heat sealing pressure: | 0～7Kg/cm2 adjustable; | ||||||
| Heat sealing time: | 0～99 seconds adjustable; | ||||||
| Edge banding width: | 5±0.4mm (according to customer requirements); | ||||||
| Edge sealing size: | 200mm; | ||||||
| Seal thickness range: | 60~300um | ||||||
| Seal thickness accuracy (mm): | package thickness difference between any two points <15um | ||||||
| Gas consumption: | about 0.2L compressed gas/each time. | ||||||
| Compressed air source: | 0.5～0.7Mpa; | ||||||
| Pneumatic working speed: | ≥180 times/h | ||||||
| Power supply: | 220V/50Hz; | ||||||
| Power source: | 220V/50Hz; power: using 300w heating tube, the power consumption is about 0.6KW when heating. | ||||||
| Dimensions: | working part: 470mm*485mm*435mm; control box: 420mm*325mm*225mm | ||||||
| Equipment weight: | 55Kg | ||||||
Products Details
