Pouch Cell Case Forming Machine
Order(Moq): 1 set
Compliance: CE Certified
Package: Plywood Case
Product Origin: China
Warranty: One-year warranty with lifetime support
Payment: T/T, Western Union, Paypal, Ali Trade Assurance
Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of pouch cell case forming machine in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

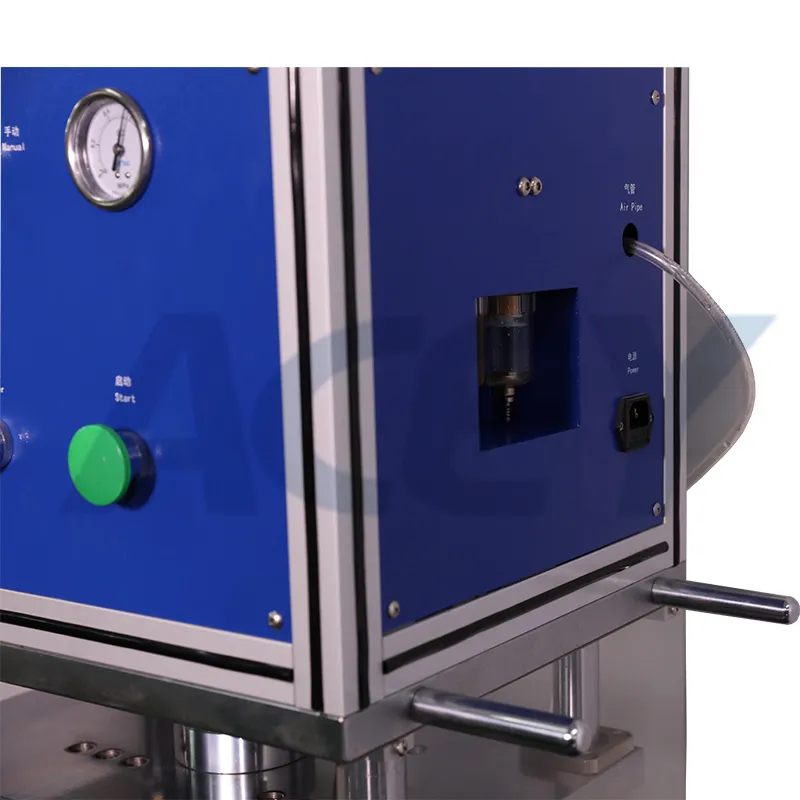

Polymer Battery Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
Product Description
Pouch cell case forming machine is mainly suitable for the hot flattening and shaping of the electric core after winding, which is convenient to enter the shell. The wound cell is placed on the template to shape the cell through pressure and heating to achieve the same thickness of the cell, reduce the elasticity of the cell, reduce the short circuit rate of the core and ensure the consistency of the thickness of the finished cell. Automatic thermoforming machine
Features
*The temperature of the work surface can be adjusted through the button on the thermostat panel. The current value and the set value of the set temperature can be displayed on the LCD display, which is intuitive and clear, with high temperature control accuracy and easy operation;
*The pressure of the upper and lower working table can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
*The machine adopts a single station structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable;
*The work surface is made of high-quality materials, with good heat transfer effect, saving power consumption and improving work efficiency;
*Use light curtain protection device, safe to use;
*This machine has a temperature abnormal alarm function;
*Heat pressing time, temperature and pressure can be adjusted;
*This machine adopts automatic and semi-automatic control, easy to operate;
*Small size, can save space;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Electric control can be used for automatic operation during operation, and manual function can be used during debugging.
Specification
| Power supply: | AC220V/50Hz; power: 1.5 KW; | ||||||
| Air source: | 0.5Mpa～0.8Mpa | ||||||
| Heat pressing area: | 200x200mm; | ||||||
| Pressure: | 1T pressure adjustable; | ||||||
| Temperature control accuracy: | ±2℃; | ||||||
| Heating temperature: | normal temperature ~ 200℃ adjustable; | ||||||
| he plane parallelism of the two pressure plates: | within 0.05 | ||||||
| Equipment size: | 320mm X 325mm X560mm | ||||||
| Weight: | 90kg. | ||||||
Products Details
