Laboratory Z-Fold Electrode Stacking Machine for Lithium-ion Pouch Cell Assembly
Product Description

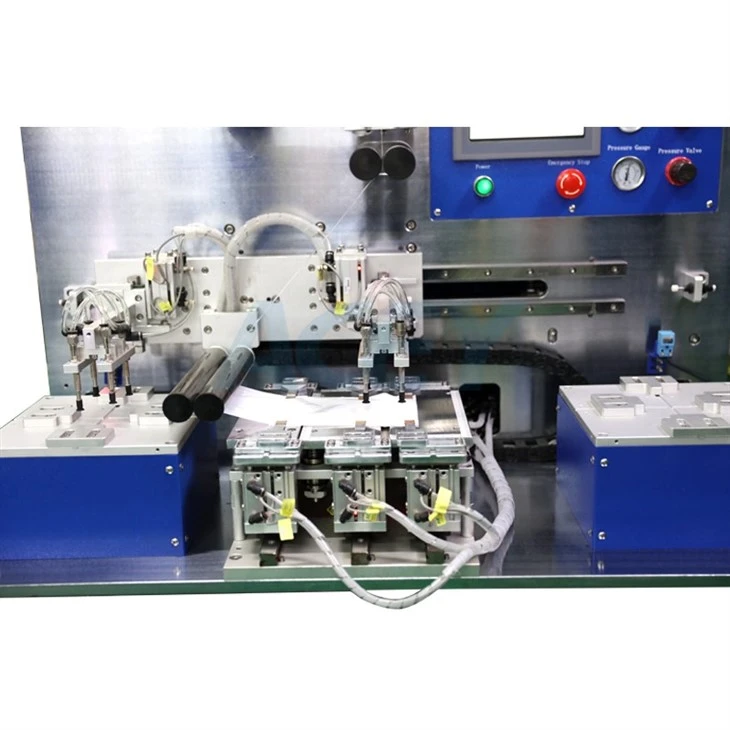

The ACEY-SSM-C Laboratory Electrode Stacking Machine is developed for precision assembly of laminated lithium-ion pouch cells. It automatically aligns and stacks cathode electrodes, anode electrodes and separator films into a highly consistent Z-fold structure, significantly improving assembly accuracy compared with manual stacking.
Designed for battery research laboratories, universities and pilot production facilities, the machine combines servo positioning, automatic separator tension control and programmable stacking parameters to ensure excellent repeatability across different cell formats.
What is Z-Fold Electrode Stacking?
Z-fold stacking is a pouch cell assembly process in which cathode electrodes, anode electrodes and separator film are alternately laminated to create a layered cell structure.
Features
- The number of laminations can be automatically controlled according to the preset;
- Adopting compatibility design, battery size change can be realized by adjusting the positioning fixture, and the adjustment range is large;
- PLC control, HMI operation, easy to use and maintain;
- Pole pieces are manually loaded, automatically positioned, the robot automatically sucks the pieces, and automatically stacks;
- Automatic servo constant tension control of coiled material diaphragm.
- Diaphragm automatic photoelectric correction control.
- Diaphragm winding core 3 inch winding core, pneumatic shaft clamping.
- Automatic servo constant tension control of coiled material diaphragm.
- Diaphragm automatic photoelectric correction control.
Specification
|
Model No. |
ACEY-SSM-C |
| Lamination method Z-shaped lamination | |
| Operation method |
manual feeding, manipulator fetches the stacks, and automatically pulls the diaphragm. |
| Lamination accuracy, neatness ≤±0.3mm | |
| Lamination range Battery Min. L62mm *W46mm, Max. L200mm*W200mm, without tabs | |
| Lamination thickness Max.30mm | |
| The number of laminated layers Max. 500 can be set | |
| Diaphragm roll diameter Max. 250mm | |
| Diaphragm winding core 3 inch winding core, pneumatic shaft clamping | |
| Automatic servo constant tension control of coiled material diaphragm. | |
| Diaphragm automatic photoelectric correction control. | |
| Power supply voltage single-phase AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 0.6KW | |
| Air source 0.5~0.8MPa compressed air | |
| Using environment The recommended environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference | |
| Dimensions |
L1100mm*W790mm*H755mm |
| Weight | 300kg |
