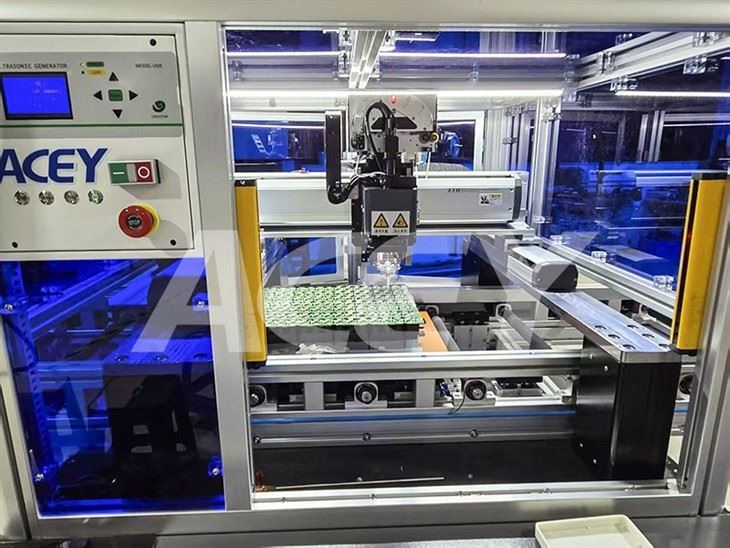

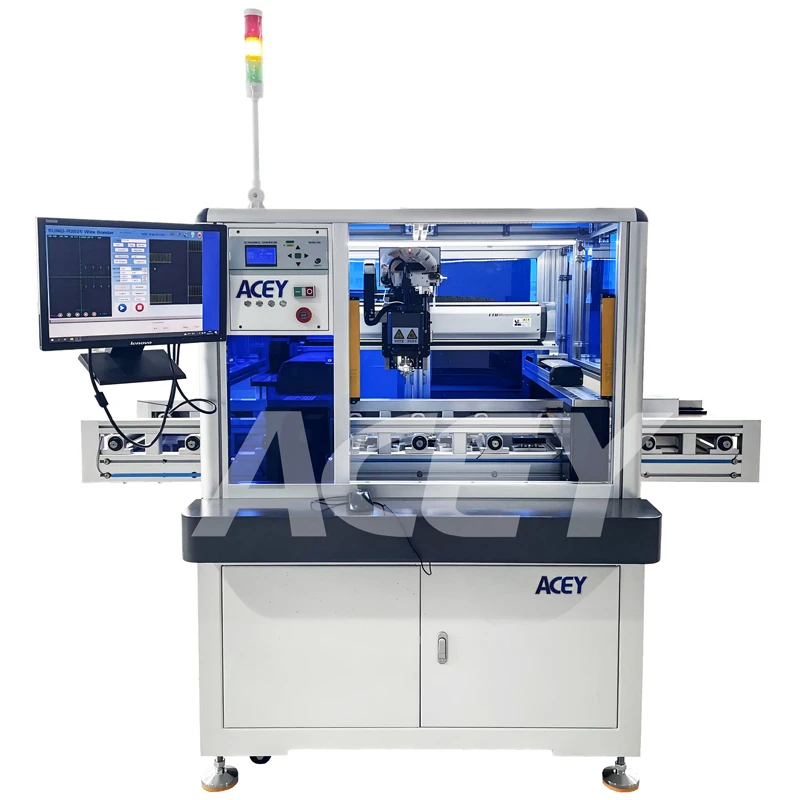

Heavy Automatic Wire Bonding Equipment

Advantages

1. Manual (front-end station) loading, automatic identification and positioning, automatic bonding, manual (flowing into the back-end station) unloading.
2. This assembly machine is dedicated to the bonding production of battery products specified by the customer. Non-universal equipment.
3. If other products are needed, they need to be modified and used according to actual conditions.

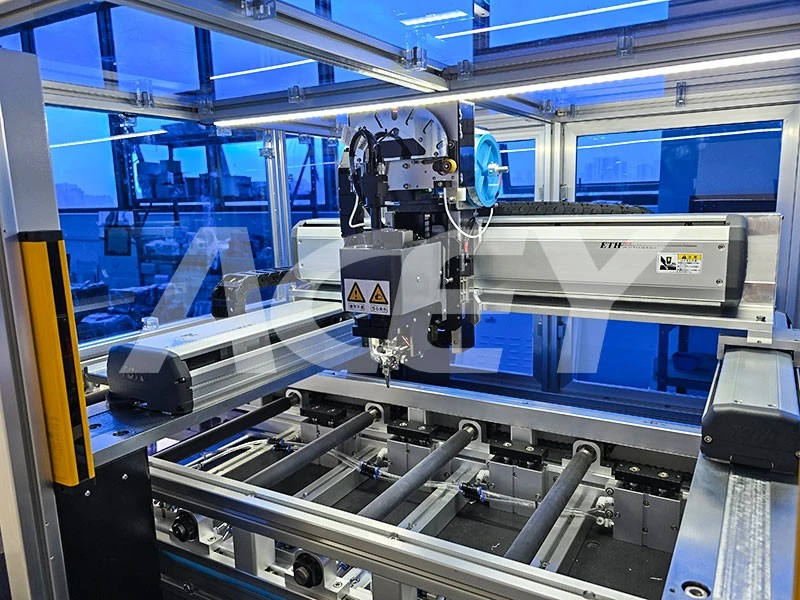

4. This machine is mainly composed of frame assembly, XYZC feeding assembly, automatic feeding mechanism, wire feeding mechanism, jig positioning and pressing assembly, welding head mechanism and console.
5. X Y Z module uses precision ball screw drive, the distance repeat positioning accuracy is less than ±0.02mm, and the angle positioning accuracy is ±1°.
6. The control system adopts industrial computer + motion control card to control the operation of the private server motor. The equipment is easy to operate and maintain, the control interface is friendly, and the parameter setting is digital, it is more flexible.
7. The welding pressure is automatically controlled, and the powerful ultrasonic power guarantees stable and reliable welding quality.

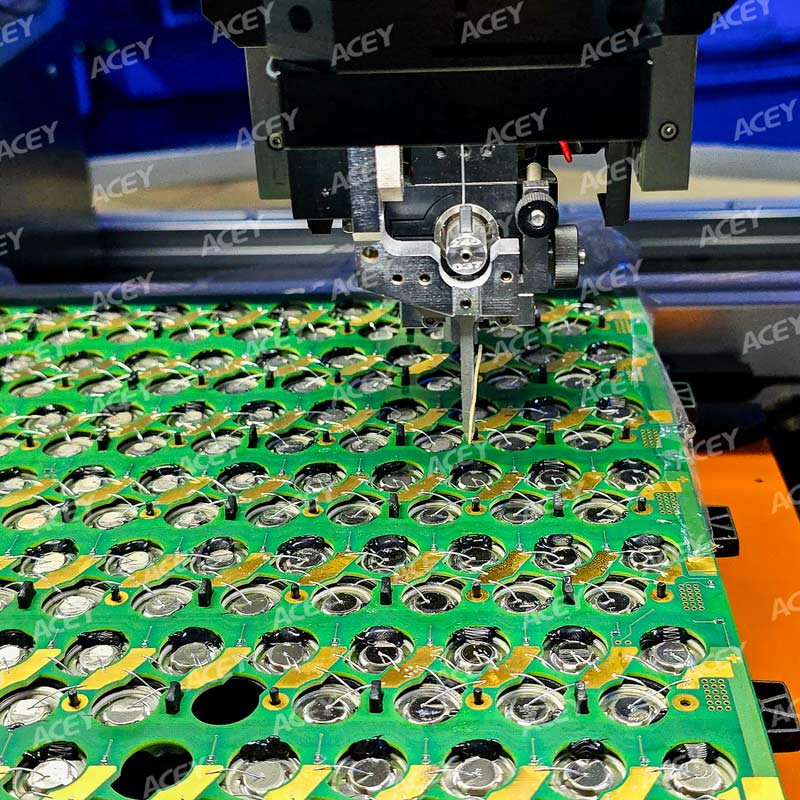

8. The equipment features dual-point welding (first and second welding) capabilities, significantly reducing solder joint resistance and improving reliability when welding large-area power devices.
9. Using quick clamp clamping, single button start, easy and safe for personnel to discharge materials.
10. Left-in and right-out can be used for online multi-section track transmission, which can be directly connected to the production line.
