All-in-One Integrated Lithium Battery Testing Equipment For Polymers Battery&Coin Cell

Name: China All-in-One Integrated Lithium Battery Testing Equipment For Polymers Battery&Coin Cell Manufacturers Suppliers - Acey New Energy
Brand: Acey
SKU: 296914312

Item: Battery Testing System
Model No.: ACEY-WHW-200L-0C-220V-5V50mA-160CH
Battery Type: Small polymer battery and coin cell
Warranty: 1 year
MOQ: 1 set
Warranty: One-year warranty with lifetime support
Package: Plywood Case

Send Inquiry

Product Introduction

Xiamen Acey New Energy Technology Co.,Ltd is one of the most reliable manufacturers and suppliers of all-in-one integrated lithium battery testing equipment for polymers battery&coin cell in China. Please rest assured to buy high quality products made in China here from our factory. Contact us for customized service.

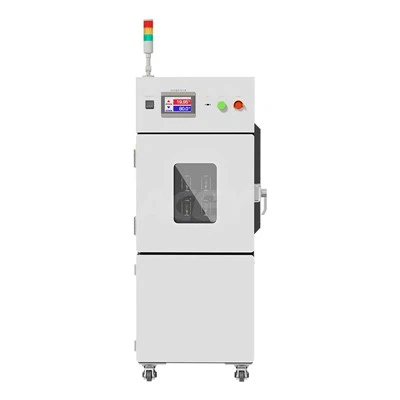

5V50MA 160Chs All-in-One Integrated Lithium Battery Testing Equipment for Polymer Battery&Coin Cell

Product Description

The battery testing system is designed for performance evaluation of button cells and small polymer batteries. It features 160 independent test channels with a 5V/50mA specification and utilizes a four-layer sample rack capable of holding up to 160 batteries simultaneously. The integrated testing chamber has a 200L internal capacity and maintains precise temperature control from 0 to 60°C with a fluctuation of ≤ ±0.5°C. The system supports networked control and connectivity, and is equipped with comprehensive safety protections, making it ideal for battery testing applications.

Structure Features

Heat Preservation	Outside material: High quality cold-bonded steel plate, surface spray and paint treatment Inner material: Stainless steel SUS304 Cabinet heat preservation material: Rigid polyurethane foam + glass wool (insulation thickness: 50mm)
Air conditioning	Centrifugal fan, heater, evaporator
Chamber Standard Configuration	Door: Hollow toughened glass and frame Wire hole: (with soft rubber plug) 50mm four PCS (On the rear side of the box) Caster: with foot break, 4 PCS Sample rack: 4 layers of electrical insulation sample rack,load-bearing (Uniform) 10kg/layer Light: LED light
Control Panel	Controller display screen
Heater	Stainless heating pipe Control type: SSR

Specification

Items		Parameter
Resolution		AD:24bit; DA:16bit
Input impedance		≥1G Ω
Voltage	CV output range	10mV~5V
	Min discharge voltage	-5V
	Accuracy	± 0.02% FS
	Stability	0. 04% of FS
Current	Output range/channel	Range1: 0.1mA; Range2: 1mA; Range3: 10mA; Range4: 50mA
	Minimum output current	0.2μA
	Accuracy	± 0.02% FS
	CV cut-off current	Range1: 0.1μA; Range2: 1μA; Range3: 10μA;Range4: 50μA
	Stability	0.04% FS
Power	Output power/channel	0.25
	Stability	0. 08% of FS
Time	Current response time	<1ms ( 10%FS~90%FS)
	Working step time	≤ (365*24)h/step Time format-00:00:00.000(h, m, s, ms)
Data record	Data record conditions	Min data record interval :100ms
		Min voltage change: 10mV
	Frequency	10Hz
Charge	Charge modes	CC, CV, CCCV, CP
	Cut-off condition	Voltage, Current, Time, Capacity, Energy, - ΔV
Discharge	Discharge modes	CC, CV, CCCV, CP, CR
	Cut-off condition	Voltage, Current, Time, Capacity, Energy
Pulse	Charge	CC, CP
	Discharge	CC, CP
	Min pulse width	500ms
	Pulse counts	Up to 32
	Chg and Dschg switch	Supported
	Cut-off condition	Voltage, Time
DCIR	Calculated DCIR values available in BTSDA
Cycle	Max cycles	65535
	Max steps	254
	Cycle nest	3
Protection	Safety protection	● Power-failure data protection ● Offline operation mode ● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
